Resol Grundfos Direct Sensor™

Name: Resol Grundfos Direct Sensor™
Brand: Resol GmbH
SKU: 13000020
Price: 187.49 EUR
Availability: InStock

187^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

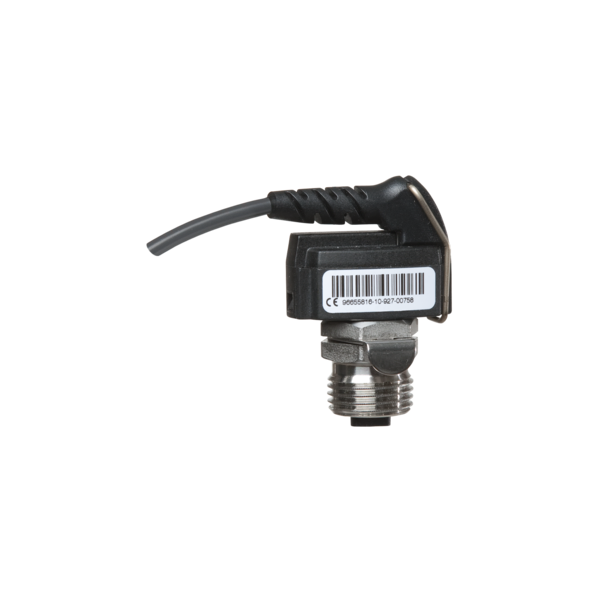

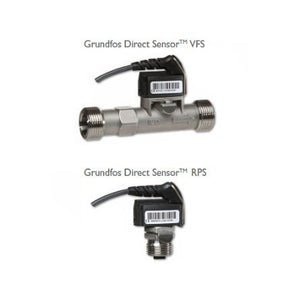

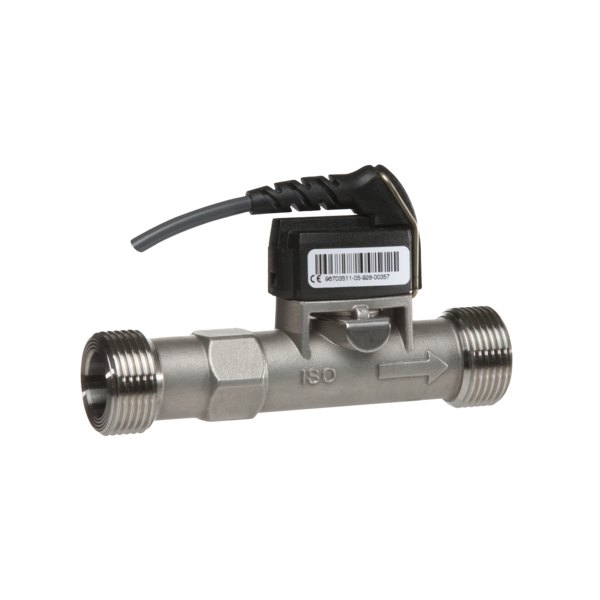

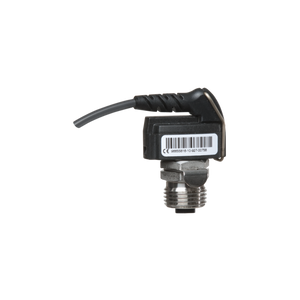

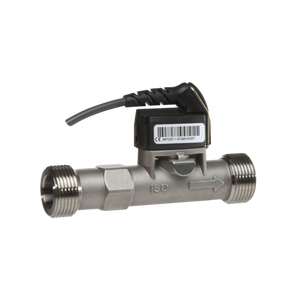

Resol Grundfos Direct Sensor™ measures two values with one measuring element: the VFS and VFD sensors measure temperature and flow rate, the RPS and RPD sensors temperature and relative pressure. According to Resol, they are suitable for aggressive media and drinking water and intended for flow measurement and heat quantity measurement or for leakage and overpressure monitoring in solar thermal and heating systems.

The analogue versions (VFS, RPS) provide ratiometric voltage signals, the digital versions (VFD, RPD) transmit the measured values directly via the RESOL VBus® protocol. The flow sensors work on the vortex flow measurement principle and have no moving parts. Scope of delivery according to the data sheet: sensor with fitting, insert (VFS/VFD) and connection cable.

Technical data

Sensor fitting	stainless steel 1.4408
Sensor element	MEMS sensor, silicon-based
Degree of protection	IP 20
Cable	PVC (minus 30 to plus 80 °C), 4 x 0.13 mm² (AWG26)
Max. operating temperature	continuous 100 °C, short-term 120 °C
Length (VFS/VFD)	110 mm
Thread	VFS/VFD ¾" male thread, RPS/RPD ½" male thread
Power consumption	below 50 mW
Power supply	analogue +5 V⎓, digital +5.5 V⎓

Note on variants

According to Resol, all versions offered are the variants for solar and drinking water. According to Resol, the digital sensors are only suitable for certain controllers: VFD for DeltaSol® AL E HE, DeltaSol® MX, BX Plus, CS series and DeltaTherm® HC; RPD for DeltaSol® MX, BX Plus and DeltaTherm® HC.

Version	Article number	Measured values	Measuring range	Signal
VFS 1-12 l/min (Analog)	13000020	temperature, flow rate	1 to 12 l/min, 0 to 100 °C	0.5 to 3.5 V
VFS 2-40 l/min (Analog)	13000030	temperature, flow rate	2 to 40 l/min, 0 to 100 °C	0.5 to 3.5 V
RPS 0-10 bar (Analog)	13000040	temperature, relative pressure	0 to 10 bar, 0 to 100 °C	0.5 to 3.5 V
VFD 1-12 l/min (Digital)	13000080	temperature, flow rate	1 to 12 l/min, 0 to 120 °C	RESOL VBus®
RPD 0-10 bar (Digital)	13000090	temperature, relative pressure	0 to 10 bar, 0 to 100 °C	RESOL VBus®
VFD 2-40 l/min (Digital)	13000100	temperature, flow rate	2 to 40 l/min, 0 to 120 °C	RESOL VBus®

Installation notes

According to the manual, the sensors can be damaged if the empty system is filled or flushed too quickly; open the filling valve by max. 30% at the beginning. The system must be flushed and free of foreign matter. The earthing resistance between the pipe and the sensor ground must be less than 10 Ω.
