Resol GmbH | SKU: 11209930

Resol FlowSol® E, DeltaTherm E

Name: Resol FlowSol® E, DeltaTherm E
Brand: Resol GmbH
SKU: 11209930
Price: 3853.49 EUR
Availability: InStock

3.853^{49 €} ~~4.718^{59 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

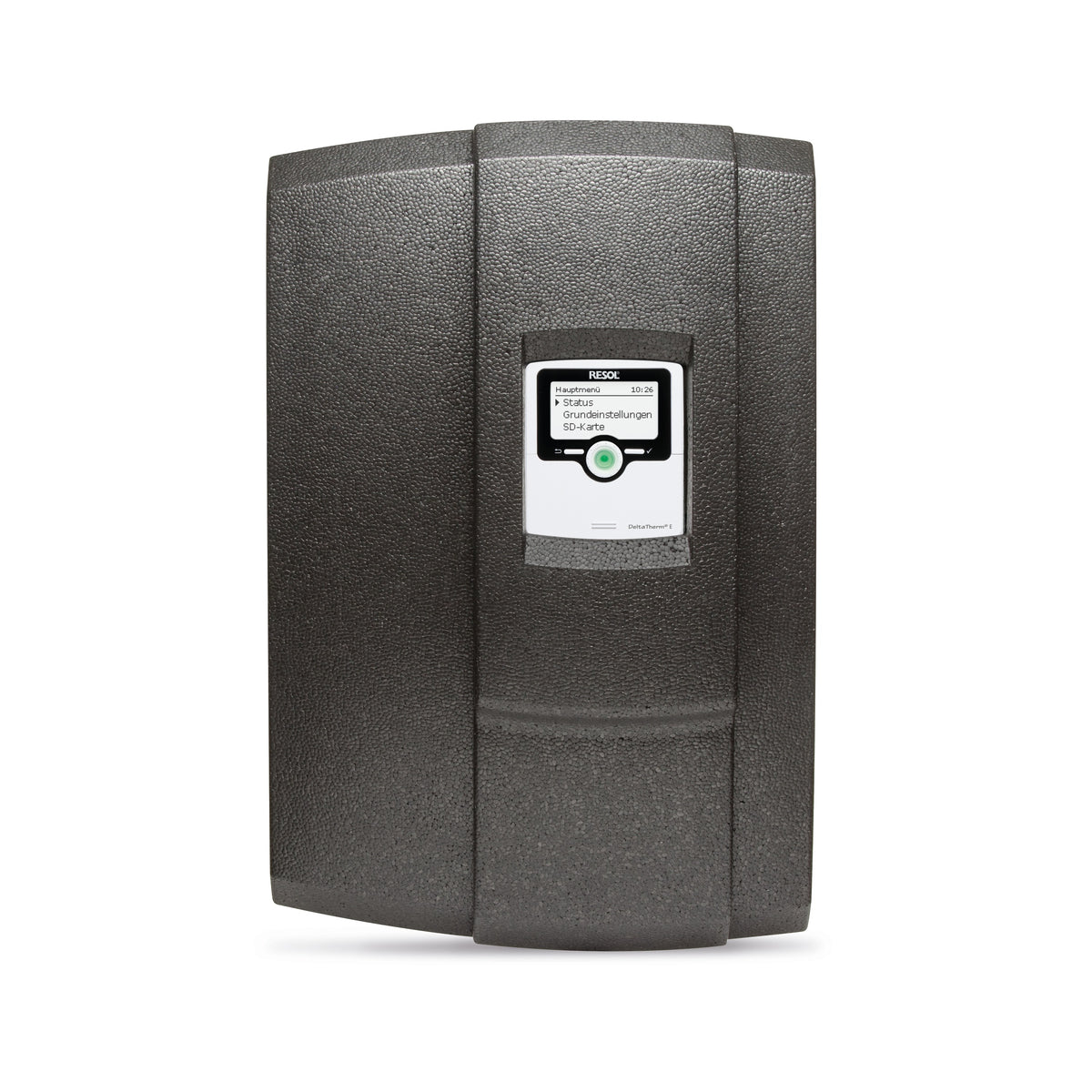

Resol FlowSol® E with DeltaTherm® E is an electrothermal station for using surplus electricity from PV systems. A sensor module detects the surplus power, and the integrated DeltaTherm® E controller directs it to a continuously adjustable electric heater that heats a water store.

The station contains a high-efficiency pump, controller and electric heater up to 3 kW; according to the manufacturer, external consumers up to a total of 12 kW can also be integrated. The household electricity demand has priority. Scope of delivery according to the manufacturer: station with DeltaTherm® E controller, power unit and sensor module.

Technical data

Circulation pump	Wilo PARA 15/7.0-PWM2, power consumption 3 to 45 W
Power supply	220 to 240 V~, 50 to 60 Hz
Required cable cross-section	2.5 mm²
Heating element	0.8 kW / 0.8 kW / 1.4 kW
Rated power, rated current	0 to 3 kW, 13 A
Safety valve	3 bar
Connections	Rp ¾" female thread
Maximum permissible temperature	95 °C
Maximum permissible pressure	3 bar
Medium	heating water
Material	fittings brass, seals EPDM, insulation EPP foam
Dimensions	approx. 605 x 400 x 240 mm (with insulation), distance axis to wall 76 mm
Weight	14 kg

DeltaTherm® E controller	Value
Inputs	4 Pt1000 temperature sensors, 2 digital switching inputs
Outputs	3 semiconductor relays, 1 potential-free extra-low voltage relay, 1 PWM output
Switching capacity	1 (1) A 240 V~ per semiconductor relay; 1 (1) A 30 V⎓ potential-free relay
Total switching capacity	3 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Data interface	RESOL VBus®, microSD card slot
Display and operation	full graphic display, control LED (Lightwheel®), 2 buttons, 1 adjustment dial
Degree of protection, protection class	IP 20, I
Ambient temperature	0 to 40 °C

Features

Electric heater up to 3 kW, continuously adjustable; enabling of external consumers via auxiliary relays.
External backup heating demand and internal backup heating with mains electricity (each optional).
Power control via 0 to 10 V, inverter power limitation.
Remote access via SmartRemote, visualisation via VBus.net.
According to the manufacturer, can be retrofitted to existing stores and is suitable for grid-connected PV systems.

Data sheets and manuals (PDF)
