Resol Temperature Sensors FKP and FRP

Name: Resol Temperature Sensors FKP and FRP
Brand: Resol GmbH
SKU: 15500020
Price: 30.99 EUR
Availability: InStock

30^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol Temperature Sensors FKP and FRP combines the following versions in one product: collector sensor FKP / tank sensor FRP5.5, tank sensor FRP for immersion sleeves, collector sensor FKP/H (high temperature), FKP9, FRP12, FKP23, FRP22. Select the required version under Sensor and then the matching variant under Version. The details for each version are given below.

The versions in detail

collector sensor FKP / tank sensor FRP5.5: Resol temperature sensors FKP and FRP are Pt1000 temperature sensors for installation in existing immersion sleeves or those provided on site. According to Resol, the sensors are supplied individually packed. According to the data sheets, FKP sensors are intended for the collector (silicone cable, minus 50 to plus 180 °C), FRP sensors for the storage tank (minus 5 to plus 80 °C). For the short TH30 immersion sleeve, Resol recommends the FKP5,5 or FRP5,5 sensors.

tank sensor FRP for immersion sleeves: Resol temperature sensor FRP is a Pt1000 temperature sensor from Resol with the storage tank as area of application. According to the data sheet, the FRP6 has a stainless steel sensor sleeve with 6 mm diameter and 45 mm length and a 2.5 m PUR cable and is intended for installation in immersion sleeves.

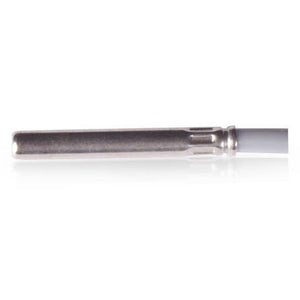

collector sensor FKP/H (high temperature): Resol collector sensors FKP/H (high temperature) are Pt1000 high-temperature sensors for temperature ranges up to 300 °C. According to Resol, this temperature range refers to the insulation of the connection cable. For the FKP4/H, Resol offers the TH60V/4 and TH100V/4 stainless steel immersion sleeves (inner diameter 4.2 mm).

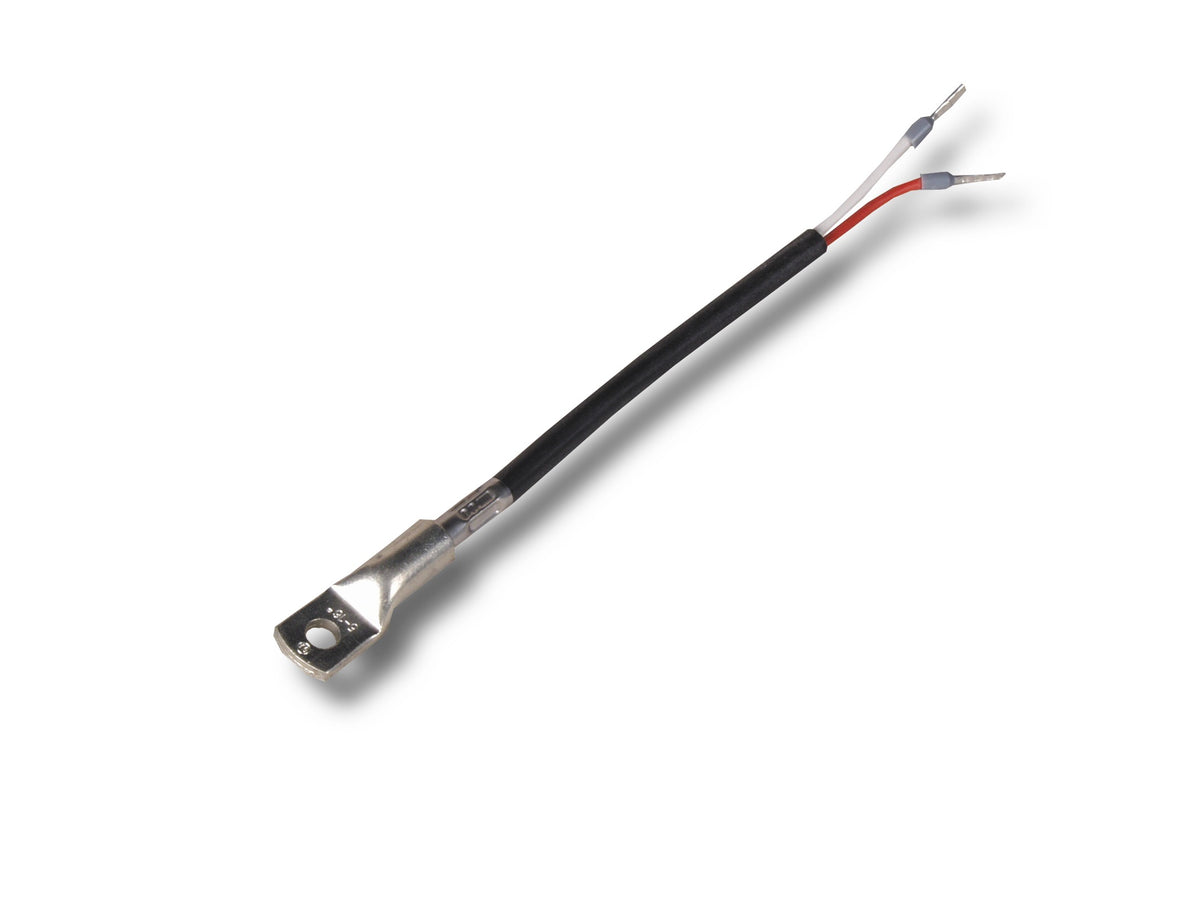

FKP9: Resol FKP9 is a flat contact sensor in Pt1000 version for mounting on flat surfaces.

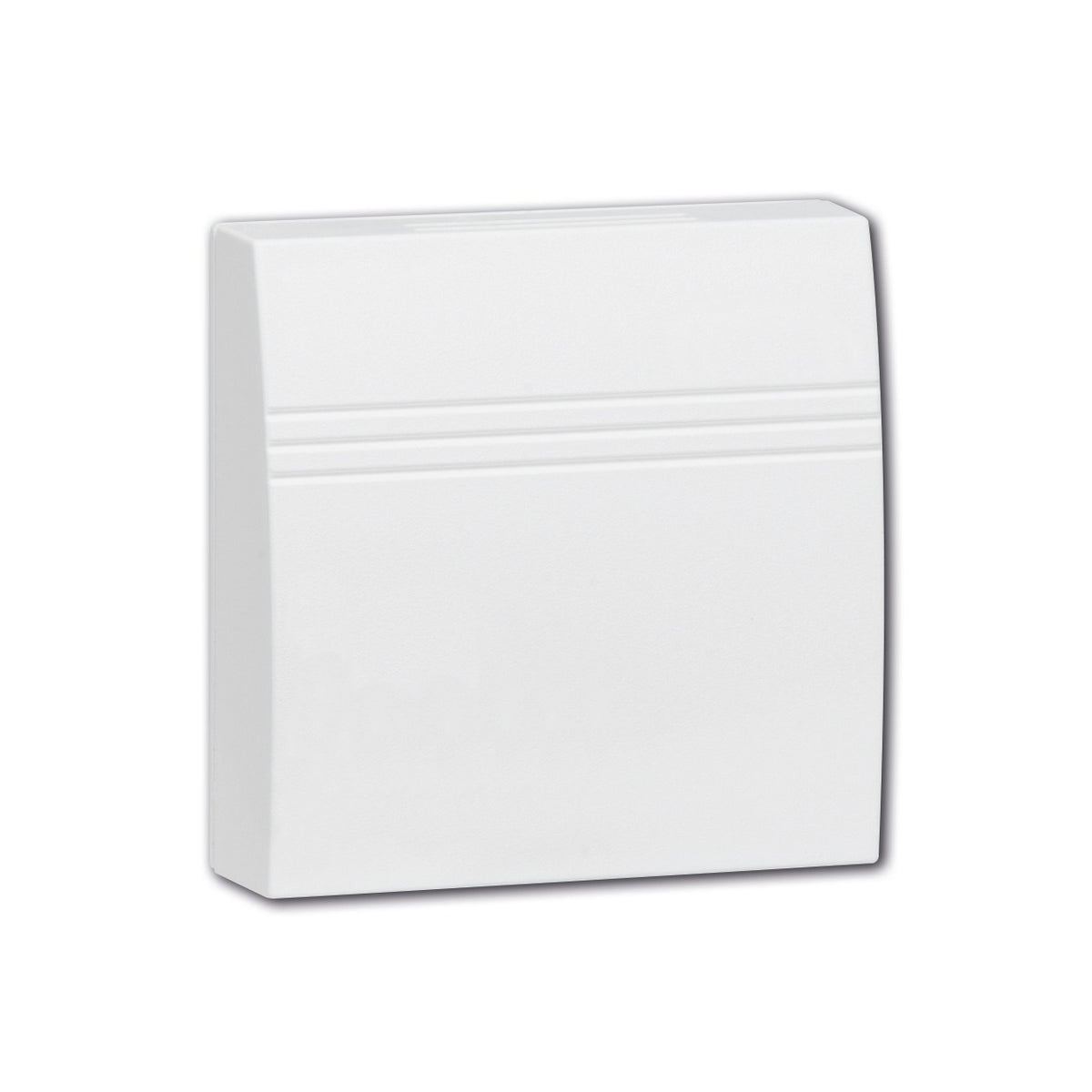

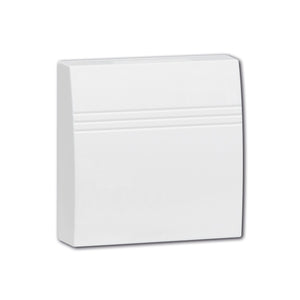

FRP12: Resol FRP12 is a room temperature sensor with a Pt1000 measuring element for measuring the room temperature. It is designed for surface mounting.

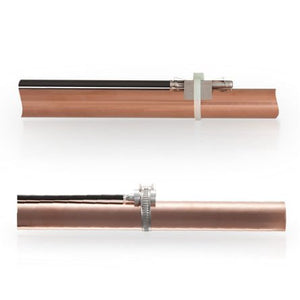

FKP23: Resol FKP23 2.5m is a pipe contact sensor with a Pt1000 measuring element for mounting on pipes. It has a 2.5 m silicone cable; Resol names the collector as the area of application. According to the data sheet, a pipe clamp and thermal paste are included in the scope of delivery.

FRP22: Resol FRP22 2.5m is a pipe contact sensor in Pt1000 version for mounting on pipes. According to Resol, a pipe clamp is included in the scope of delivery. According to Resol, thermal paste must be used with pipe contact sensors to ensure heat transfer.

Technical data

Data per version:

Feature	collector sensor FKP / tank sensor FRP5.5	tank sensor FRP for immersion sleeves	collector sensor FKP/H (high temperature)	FKP9	FRP12	FKP23	FRP22
Sensor element	Pt1000B according to DIN EN 60751	Pt1000B according to DIN EN 60751	Pt1000	Pt1000	Pt1000	Pt1000, DIN EN 60751, class B	Pt1000
Tolerance	± 0.3 K at 0 °C, ± 0.8 K at 100 °C	± 0.3 K at 0 °C, ± 0.8 K at 100 °C	not specified	not specified	not specified	not specified	not specified
Sensor sleeve	stainless steel 1.4571	not specified	not specified	not specified	not specified	not specified	not specified
Cores	2 x 0.34 mm², silicone-insulated	not specified	not specified	not specified	not specified	not specified	not specified
Degree of protection	IP 67	not specified	not specified	not specified	IP 10 (EN 60529)	IP 54	not specified
Temperature range (FRP6)	not specified	minus 5 to plus 80 °C	not specified	not specified	not specified	not specified	not specified
Sensor sleeve (FRP6)	not specified	stainless steel 1.4571, Ø 6 mm, 45 mm	not specified	not specified	not specified	not specified	not specified
Degree of protection (FRP6)	not specified	IP 67	not specified	not specified	not specified	not specified	not specified
Temperature range	not specified	not specified	up to 300 °C (referring to the insulation of the connection cable)	not specified	not specified	minus 50 to plus 180 °C	not specified
Design	not specified	not specified	not specified	flat contact sensor	not specified	not specified	pipe contact sensor with pipe clamp
Housing	not specified	not specified	not specified	not specified	for surface mounting, material ASA, colour pure white similar to RAL 9010	not specified	not specified
Cable entry	not specified	not specified	not specified	not specified	at the back	not specified	not specified
Ambient temperature	not specified	not specified	not specified	not specified	minus 35 to plus 70 °C	not specified	not specified
Dimensions	not specified	not specified	not specified	not specified	84.5 x 84.5 x 25 mm	not specified	not specified
Cable	not specified	not specified	not specified	not specified	not specified	silicone, Ø 4.85 mm, black, 2 x AWG 24/7, tinned copper	not specified
Cable length (L2)	not specified	not specified	not specified	not specified	not specified	2,500 mm	not specified
Sleeve length (L1)	not specified	not specified	not specified	not specified	not specified	30 mm	not specified
Sleeve/housing material	not specified	not specified	not specified	not specified	not specified	AlMgSiPb	not specified
Electrical connection	not specified	not specified	not specified	not specified	not specified	insulated wire end ferrule (8 mm)	not specified

Note on variants

Select sensor and version. Not every combination is available.

Sensor	Version	Item number	Sleeve Ø	Cable length according to data sheet	Area of application	Information according to Resol
Collector sensor FKP / tank sensor FRP5.5	FKP6, 1.5 m cable	15500020	6 mm	1,500 mm, silicone	collector
Collector sensor FKP / tank sensor FRP5.5	FKP6, 2.5 m cable	15500440	6 mm	2,500 mm, silicone	collector
Collector sensor FKP / tank sensor FRP5.5	FKP6, 5 m cable	15500450	6 mm	5,000 mm, silicone	collector
Collector sensor FKP / tank sensor FRP5.5	FKP6, 20 m cable	15500610	6 mm	20,000 mm, silicone (according to resol.de)	collector
Collector sensor FKP / tank sensor FRP5.5	FKP6/500, 2.5 m cable	15500920	6 mm	2,500 mm, silicone (according to resol.de)	collector

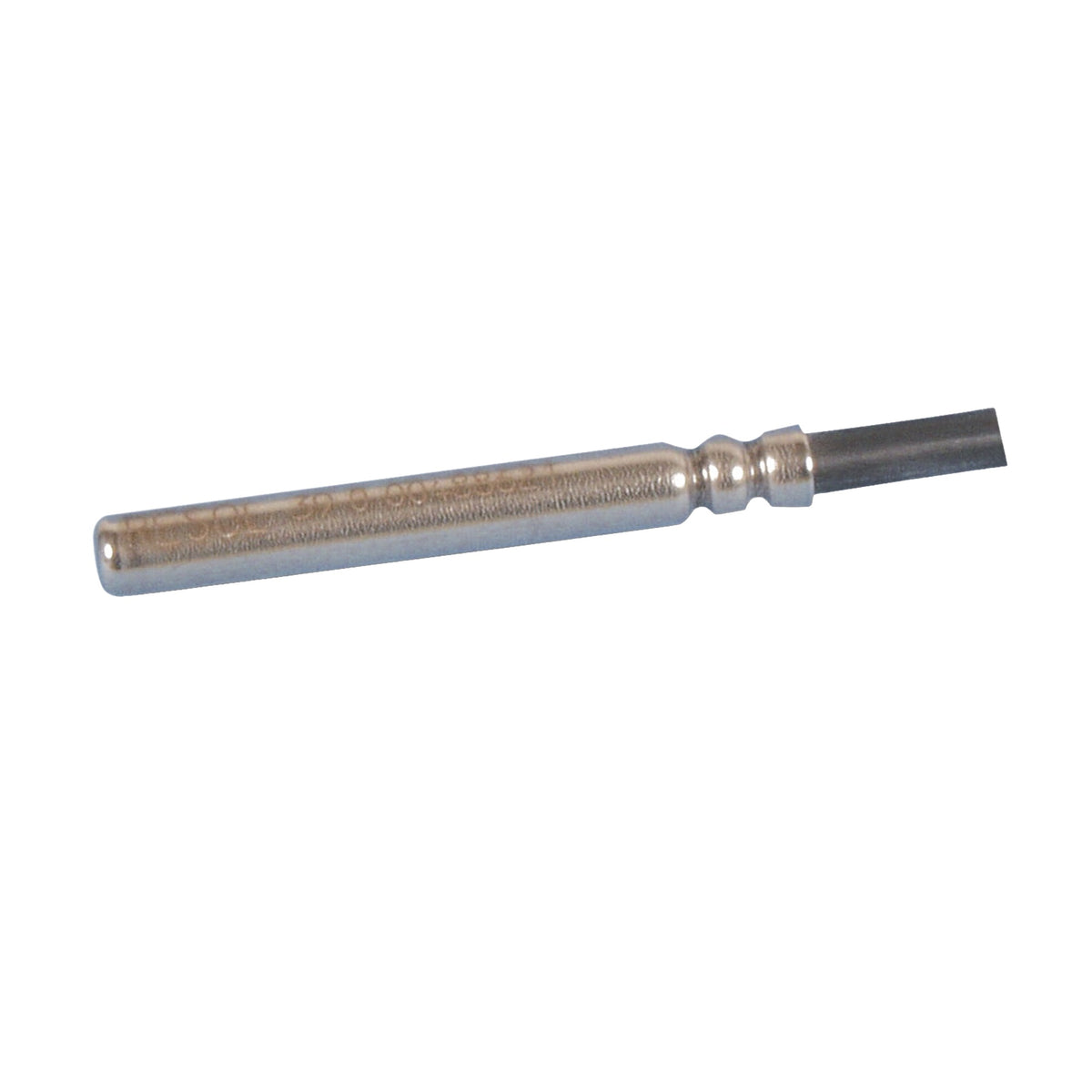

Collector sensor FKP / tank sensor FRP5.5	FKP4, 1 m cable	15500010	4 mm	1,000 mm, silicone (according to resol.de)	collector
Collector sensor FKP / tank sensor FRP5.5	FKP5.5, 1.5 m cable	15500310	5.5 mm	1,500 mm, silicone	collector
Collector sensor FKP / tank sensor FRP5.5	FRP5.5 storage tank sensor, 2.5 m cable	15500320	5.5 mm	2,500 mm, Ölflex cable	storage tank
Tank sensor FRP for immersion sleeves	FRP6, standard (2.5 m cable)	15500080				FRP6, cable 2,500 mm PUR, area of application storage tank
Tank sensor FRP for immersion sleeves	FRP6/500, 2.5 m cable	15500680				FRP6/500, Ø 6 mm, cable 2,500 mm PVC, area of application storage tank (according to resol.de)
Collector sensor FKP/H (high temperature)	FKP4/H, high temperature	15500110
Collector sensor FKP/H (high temperature)	FKP6/H, high temperature	15500120
FKP9	Standard	15500360
FRP12	Standard	15500890
FKP23	2.5 m cable	15500960
FRP22	2.5 m cable	15500880

Features

FKP23: Scope of delivery according to the data sheet: 1 pipe clamp, 1 thermal paste.
