Resol GmbH | SKU: 11500710

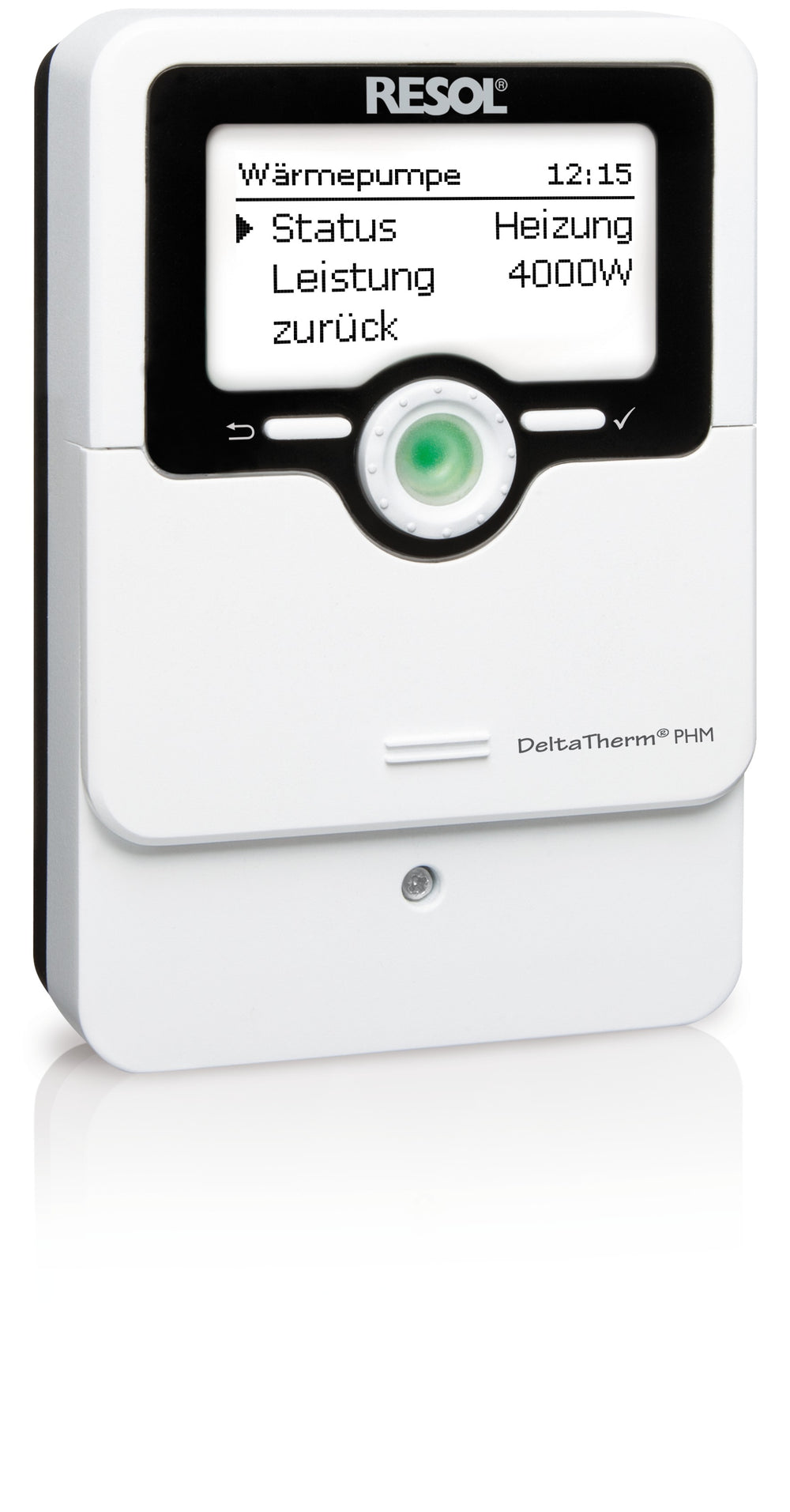

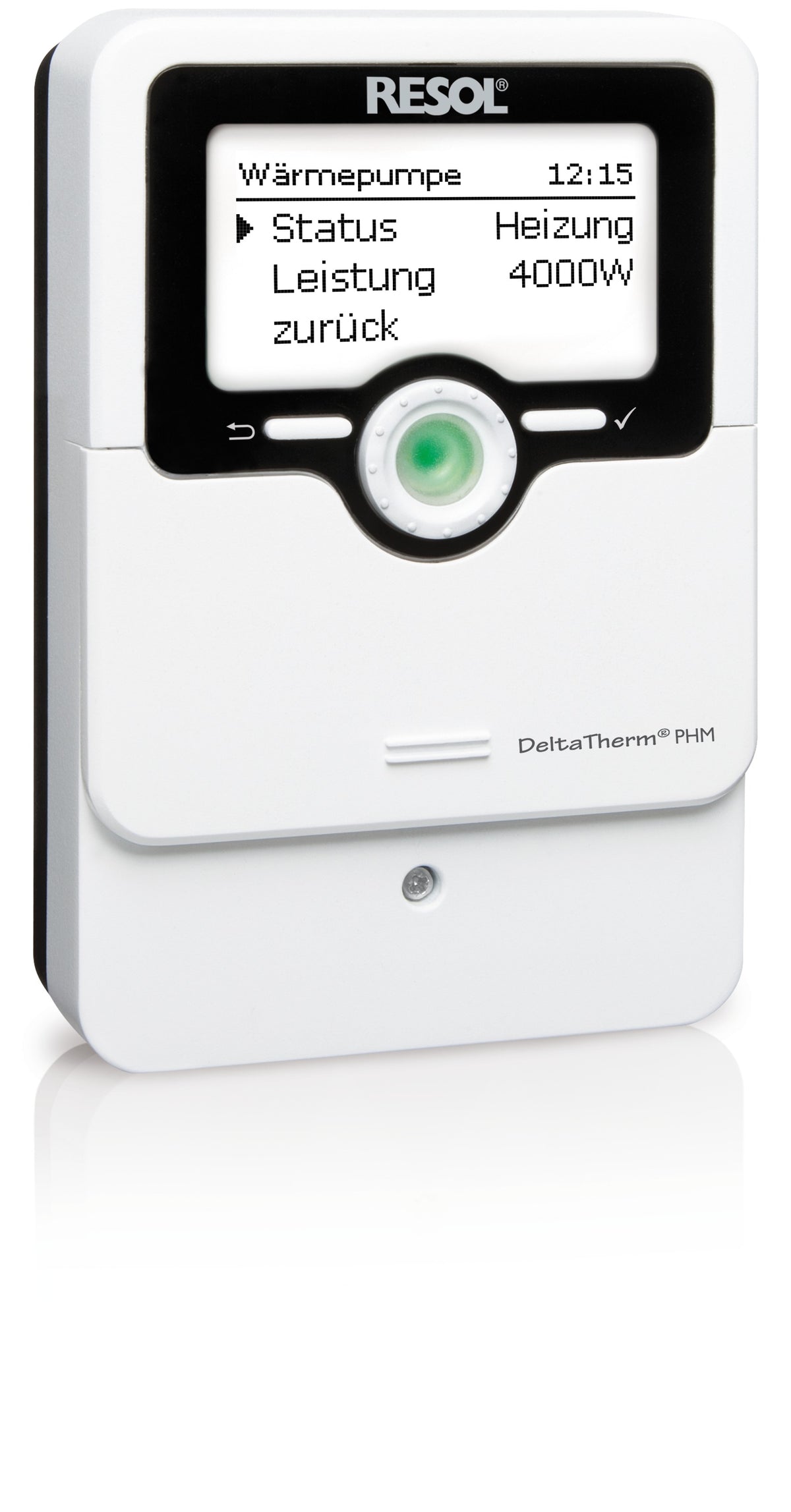

Resol DeltaTherm® PHM Complete Package

Name: Resol DeltaTherm® PHM Complete Package
Brand: Resol GmbH
SKU: 11500710
Price: 653.99 EUR
Availability: InStock

653^{99 €} ~~768^{74 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol DeltaTherm® PHM is a power-to-heat manager for using surplus PV electricity for various consumers. Heat pumps, electric heaters and charging stations for electric cars are enabled as required; the household electricity demand has priority. Each consumer can also be supplied with mains electricity on a time-controlled basis.

The DeltaTherm® PHM measures the electrical loads at the energy meter; these can be displayed via VBus.net. Scope of delivery according to the manufacturer (complete package): controller, sensor module, 3 current sensors and 3 Pt1000 temperature sensors (FRP6).

Technical data

Inputs	5 Pt1000 temperature sensors (2 of which can be switched to switch input)
Outputs	3 electromechanical relays, 2 potential-free extra-low voltage relays, 1 PWM output (switchable to 0 to 10 V)
Switching capacity	1 (1) A 240 V~ per electromechanical relay; 1 (1) A 30 V⎓ per potential-free relay
Total switching capacity	3 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Mode of operation	Type 1.B.C
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®, microSD card slot
VBus® current output	35 mA
Display	full graphic display, operating control LED (Lightwheel®), backlight
Operation	4 buttons, 1 adjustment dial (Lightwheel®)
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T4A
Dimensions	110 x 166 x 47 mm
Sensor module	DeltaTherm® E sensor, DIN rail mounting in the distribution board, 71 x 90 x 58 mm

Features

Control of up to 3 electric immersion heaters (via auxiliary relays, not included).
Enabling of a heat pump and a wallbox.
Time-controlled backup heating with mains electricity.
Data logging, data backup, firmware updates and transfer of prepared settings via microSD card.
