Resol GmbH | SKU: 11500740

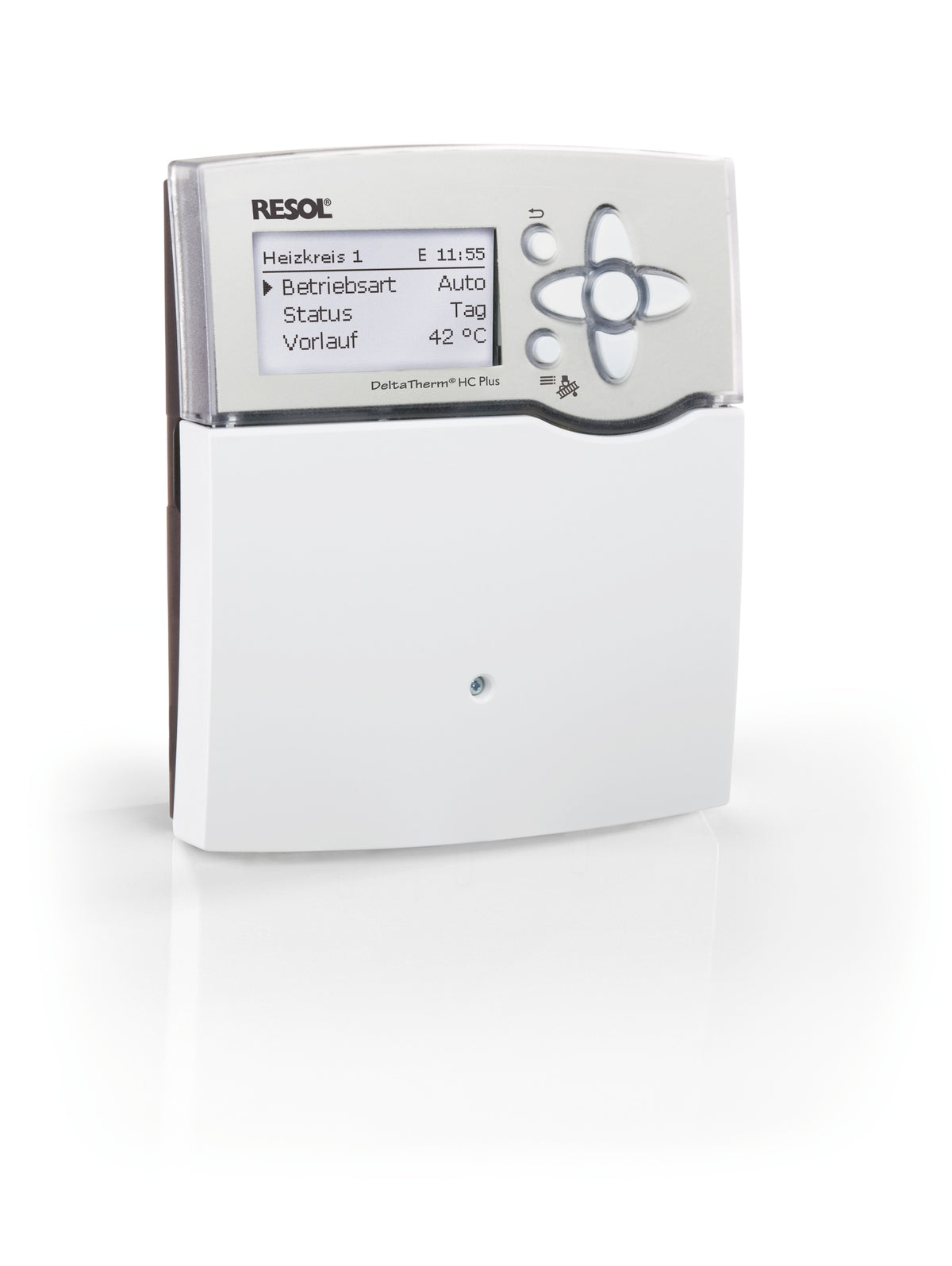

Resol Heating Controller DeltaTherm® HC Plus

Name: Resol Heating Controller DeltaTherm® HC Plus
Brand: Resol GmbH
SKU: 11500740
Price: 617.99 EUR
Availability: InStock

617^{99 €} ~~724^{59 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol heating controller DeltaTherm® HC Plus controls up to 2 weather-compensated heating circuits and their backup heating demand. Additional domestic hot water functions such as circulation and thermal disinfection as well as the integration of further heat sources are possible; further heating circuits can be controlled with extension modules.

According to the manufacturer, the heating circuits can also cool in summer using a humidity sensor for dew point calculation. According to the manufacturer, an SD card is included in the scope of delivery.

Technical data

Inputs	10 inputs for Pt500, Pt1000 or KTY temperature sensors, 1 V40 pulse input, inputs for 2 analogue Grundfos Direct Sensors™ or FRH humidity sensors
Outputs	4 semiconductor relays, 2 electromechanical relays, 1 potential-free relay, 4 PWM or 0 to 10 V outputs
PWM frequency and PWM voltage	512 Hz, 10.5 V
Switching capacity	1 (1) A 240 V~ per semiconductor relay; 4 (2) A 240 V~ per electromechanical relay; 2 (1) A 24 V⎓ / 240 V~ potential-free relay
Total switching capacity	6.3 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Standby	approx. 1 W
Mode of operation	Type 1.B.C.Y
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®, SD card slot
VBus® current output	60 mA
Display	full graphic display, operating control LED (directional pad), backlight
Operation	7 buttons
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T6,3A
Dimensions	198 x 170 x 43 mm

Features

Functions according to the data sheet: screed drying, weather-compensated heating circuit control, backup heating, domestic hot water heating with priority switching, circulation, thermal disinfection, heat quantity measurement, optional functions such as solid fuel boiler and return preheating.
Input for a central outdoor sensor unit.
Remote access via the VBus®Touch HC app and the RCP12 room control unit; boiler control via 0 to 10 V.

Note on variants

Standard: controller with SD card, without temperature sensors (article number 11500740). Complete package: additionally 5 Pt1000 temperature sensors (1 x FAP13, 1 x FKP23, 3 x FRP6) (article number 11500750).
