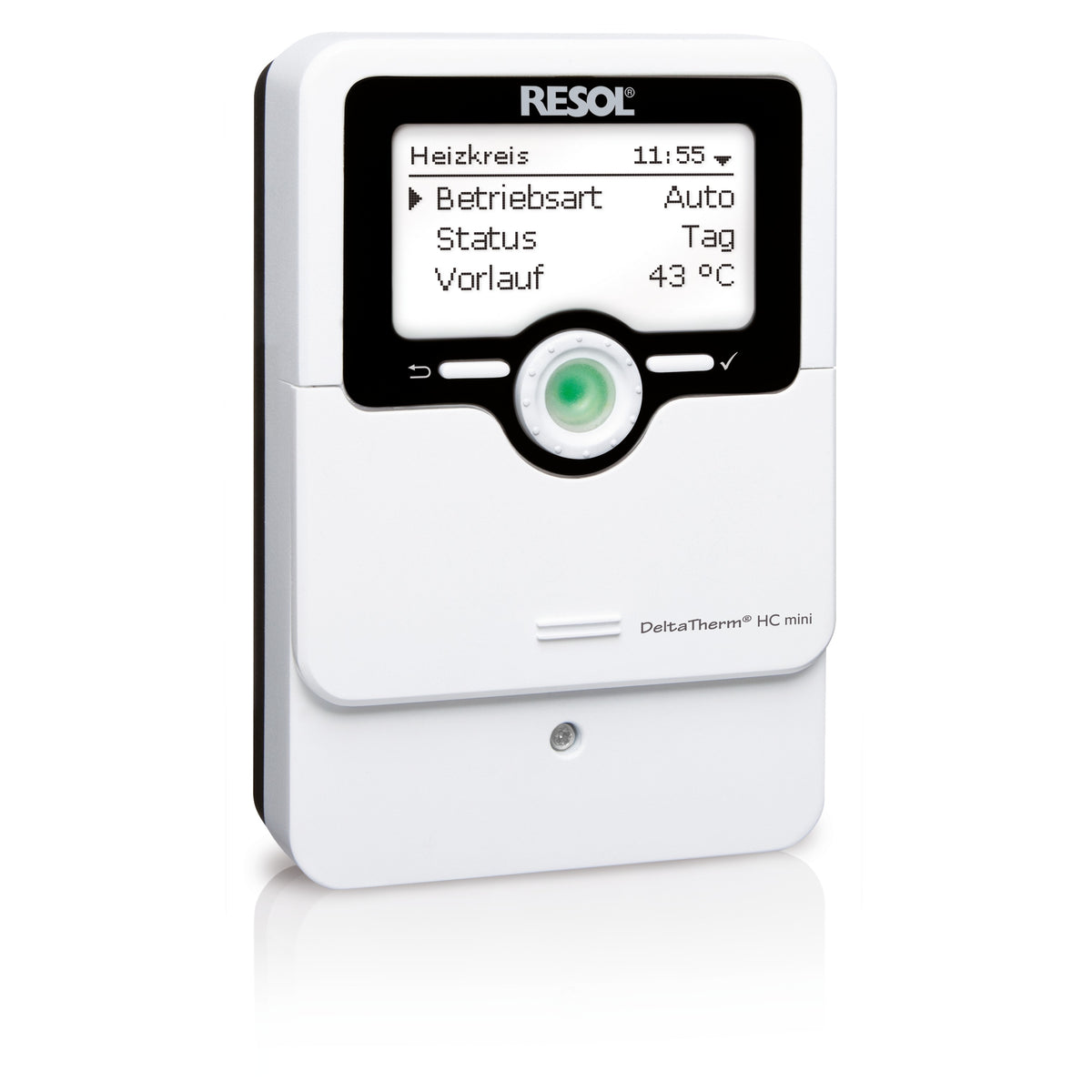

Resol Heating Controller DeltaTherm® HC mini 2.0

Name: Resol Heating Controller DeltaTherm® HC mini 2.0
Brand: Resol GmbH
SKU: 11500520
Price: 503.99 EUR
Availability: InStock

503^{99 €} ~~583^{69 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol heating controller DeltaTherm® HC mini is a compact controller for heating systems with one heating circuit. It controls one weather-compensated heating circuit and its backup heating demand; additional domestic hot water functions such as circulation and thermal disinfection as well as further heating circuits are possible with extension modules.

According to the manufacturer, the controller has 6 operating modes, a boiler protection option, a night setback, a commissioning menu and 4 pre-configured basic systems. In summer, the heating circuit can cool using a humidity sensor for dew point calculation.

Technical data

Inputs	5 inputs for Pt1000, Pt500 or KTY temperature sensors (can also be used for remote control, operating mode switch or potential-free switches, 1 of which can be switched to V40), 1 analogue input for Grundfos Direct Sensor™ or FRH humidity sensor
Outputs	3 semiconductor relays, 1 potential-free extra-low voltage relay, 2 PWM outputs (switchable to 0 to 10 V)
PWM frequency and PWM voltage	512 Hz, 10.8 V
Switching capacity	1 (1) A 240 V~ per semiconductor relay; 1 (1) A 30 V⎓ potential-free relay
Total switching capacity	3 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Standby	0.62 W
Mode of operation	Type 1.B.C.Y
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®, microSD card slot
VBus® current output	60 mA
Display	full graphic display, operating control LED (Lightwheel®)
Operation	4 buttons, 1 adjustment dial (Lightwheel®)
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T4A
Dimensions	110 x 166 x 47 mm

Features

Functions according to the data sheet: weather-compensated heating circuit control, backup heating, room thermostat, chimney sweep function, screed drying.
Remote access via the VBus®Touch HC app and the RCP12 room control unit; boiler control via 0 to 10 V.

Note on variants

Standard: controller without temperature sensors (article number 11500520). Complete package: controller with 3 Pt1000 temperature sensors (1 x FAP13, 1 x FKP23, 1 x FRP6) (article number 11500510).
