Sanha NiroSan Bend 45°, 1 or 2 Sockets

Name: Sanha NiroSan Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 6904115
Price: 13.99 EUR
Availability: InStock

13^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha NiroSan Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

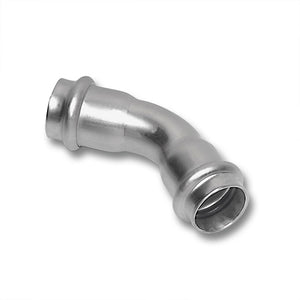

2 sockets: Sanha NiroSan Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the NiroSan press fitting system (series 9000) made of stainless steel.

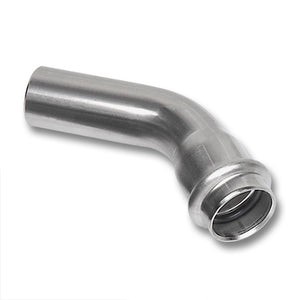

1 socket (socket x spigot): Sanha NiroSan Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the NiroSan press fitting system (series 9000) made of stainless steel.

Technical data

Material	Cr-Ni-Mo steel, material no. 1.4404 according to EN 10088 (according to Sanha)
Sealing ring	EPDM, black, factory-fitted
Nominal pressure	PN 40 for d 15 to 22 mm, PN 25 for d 28 to 35 mm, PN 16 from d 42 mm (according to the Sanha installation information)
Max. continuous temperature	-30 to 120 °C, briefly up to 150 °C (according to Sanha)
Testing	connection tested according to DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 15 to 168.3 mm
Suitable pipes	NiroSan, NiroSan ECO and NiroSan F system pipes according to EN 10312 (Sanha recommendation)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	NiroSan, series 9000, catalogue number 9041	NiroSan, series 9000, catalogue number 9040
Design	bend 45°, universal press ends on both sides	bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	L	z	L1	L2
2 Muffen	108.0	69041108	108	123	52
2 Muffen	139.7	69041140	139.7	203	105
2 Muffen	15	6904115	15	37	11
2 Muffen	168.3	69041168	168.3	252	134
2 Muffen	18	6904118	18	39	13
2 Muffen	22	6904122	22	48	20
2 Muffen	28	6904128	28	53	24
2 Muffen	35	6904135	35	57	27
2 Muffen	42	6904142	42	68	30
2 Muffen	54	6904154	54	82	38
2 Muffen	64	6904164	64	83	36
2 Muffen	76.1	6904176	76.1	89	39
2 Muffen	88.9	6904189	88.9	101	43
1 Muffe (Muffe x Einsteckende)	108.0	69040108	108		53	124	150
1 Muffe (Muffe x Einsteckende)	139.7	69040140	139.7		105	203	210
1 Muffe (Muffe x Einsteckende)	15	6904015	15		12	37	47
1 Muffe (Muffe x Einsteckende)	168.3	69040168	168.3		134	252	253
1 Muffe (Muffe x Einsteckende)	18	6904018	18		13	39	48
1 Muffe (Muffe x Einsteckende)	22	6904022	22		20	48	56
1 Muffe (Muffe x Einsteckende)	28	6904028	28		24	53	60
1 Muffe (Muffe x Einsteckende)	35	6904035	35		27	57	64
1 Muffe (Muffe x Einsteckende)	42	6904042	42		30	68	79
1 Muffe (Muffe x Einsteckende)	54	6904054	54		38	82	89
1 Muffe (Muffe x Einsteckende)	64	6904064	64		36	83	99
1 Muffe (Muffe x Einsteckende)	76.1	6904076	76.1		39	89	108
1 Muffe (Muffe x Einsteckende)	88.9	6904089	88.9		44	101	122

Features

Areas of application according to Sanha: drinking water, heating, rainwater, compressed air with residual oil content up to 25 mg/m³, technical gases, cooling water and shipbuilding.
Marking on the fitting according to Sanha: manufacturer, dimension and DVGW approval mark.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
DVGW type examination certificate DW-8501BT0271 for the NiroSan-Press drinking water installation system of press connectors and pipes made of stainless steel (test bases including DVGW W 534 and GW 541), valid until 24.06.2031.
DVGW certificate of conformity hygiene HW-1001DQ0058 for NiroSan press fittings (series 9000) made of 1.4404 for drinking water installations, valid until 18.06.2030.
DVGW certificate of conformity hygiene HW-1011DQ0356 for the assembled product NiroSan press fitting (series 9000) for drinking water installations, valid until 14.03.2030.
VdS approval G 4040057 for the NiroSan Press series 9000 pipe system in stationary water extinguishing systems, valid until 01.03.2030. It covers stainless steel press fittings 1.4404 from 22 to 108 mm with EPDM sealing ring and, according to the approval, applies only to wet systems behind the alarm valve station, subject to the restrictions stated there.
