AFPRO Filters | SKU: NA11/100X245

AFPRO NA11 Panel Filter ISO Coarse 50%

Name: AFPRO NA11 Panel Filter ISO Coarse 50%
Brand: AFPRO Filters
SKU: NA11/100X245
Availability: InStock

42^{99 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Precise fit by dimensions and filter class
✓ Original manufacturer quality
✓ Expert advice on the right filter class
✓ Pay by PayPal, card, Klarna or bank transfer

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

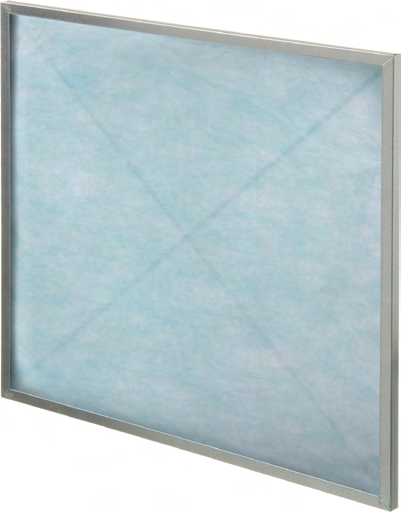

AFPRO NA11 panel filters ISO Coarse 50% are panel filters with a synthetic filter medium in a galvanised steel frame. The manufacturer intends the NA series as pre-filters in HVAC systems and in industry. The filter class according to ISO 16890 is ISO Coarse 50%.

Technical data

Series	NA (AFPRO Filters, catalogue 2026, p. 65)
Type	NA11
Filter class according to ISO 16890	ISO Coarse 50%
Filter medium	synthetic
Frame	galvanised steel
Maximum final pressure drop	250 Pa
Maximum temperature	70 °C
Maximum relative humidity	90%
Depth	11 mm

Features

According to the catalogue, the NA series comprises the types NA11 and NA23 (ISO Coarse 50%) as well as NA45 (ISO Coarse 60%) in 11, 23 and 45 mm depth.

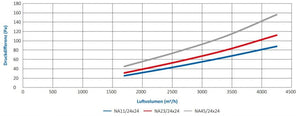

For NA11, the catalogue gives six standard sizes from 287x592 mm to 592x592 mm with an initial pressure drop at nominal airflow of 65 Pa, for example 0.35 m² filter area and 3400 m³/h at 592x592x11 mm.
The variants of this product are custom sizes in 11 mm depth. The catalogue gives no performance data for custom sizes.

Note on variants

Select the dimension in the format width x height x depth in mm. All variants have the filter class ISO Coarse 50% and a depth of 11 mm. Please check the installation dimension of your filter frame before ordering.

Data sheets and manuals (PDF)

AFPRO Product Catalog 2025 (PDF)
