AFPRO CPMC Panels

Name: AFPRO CPMC Panels
Brand: AFPRO Filters
SKU: CPMC/150X250X45-M5
Availability: InStock

From 18^{99 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Precise fit by dimensions and filter class
✓ Original manufacturer quality
✓ Expert advice on the right filter class
✓ Pay by PayPal, card, Klarna or bank transfer

Configure your version

Choose the filter class, then the dimensions in any order. Only combinations that exist are offered.

Loading configurator …

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

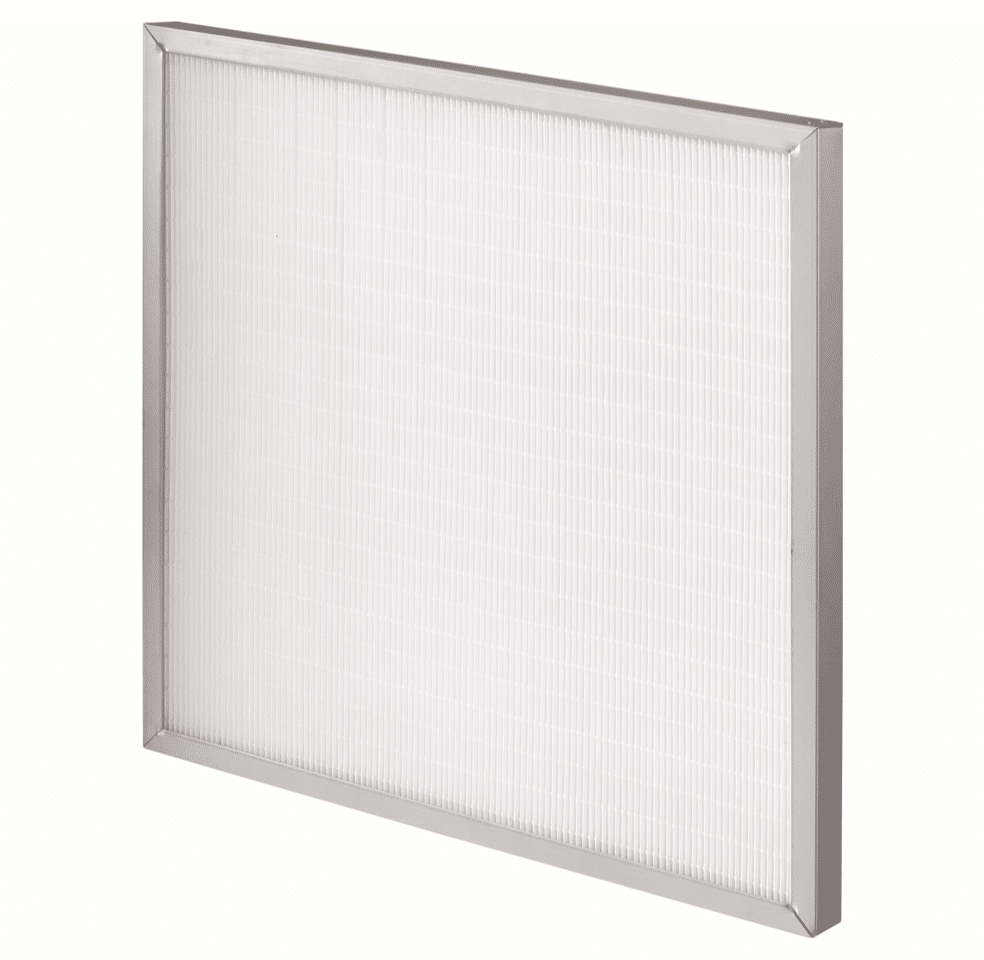

AFPRO CPMC panels are filter cells of the CPMC series with a glass fibre medium in a galvanised steel frame. The manufacturer intends the series for HVAC systems. We offer the series in the filter classes ePM10 75%, ePM2.5 55%, ePM1 55% and ePM1 80% according to ISO 16890 and in around 5,000 sizes with depths from 23 to 292 mm; select the right version in the configurator above.

Technical data

Series	CPMC (AFPRO Filters, catalogue 2026, p. 71)
Filter classes according to ISO 16890	ePM10 75% (types ending in M5), ePM2.5 55% (M6), ePM1 55% (F7), ePM1 80% (F9)
Filter medium	glass fibre
Frame	galvanised steel
Spacers	hot-melt adhesive
Bonding	two-component polyurethane
Maximum temperature	65 °C
Maximum relative humidity	90%
Recommended pressure drop for filter replacement	three times the initial pressure drop or the initial pressure drop plus 100 Pa, whichever is lower
Standard depths according to the catalogue	45 and 96 mm
Depths in this product	23 to 292 mm

Features

Standard sizes according to the catalogue: 592x592, 490x592 and 287x592 mm, each 45 and 96 mm deep.
For the same frame size and nominal airflow, the catalogue gives a larger filter area and a lower initial pressure drop for 96 mm depth than for 45 mm, for example at 592x592 mm and 2950 m³/h in ePM10 75%: 10.7 m² and 85 Pa (96 mm) compared with 5.8 m² and 90 Pa (45 mm).
The manufacturer lists the same design with a plastic frame as CP panels.
In addition to the standard sizes, we offer numerous custom sizes and further depths. The item numbers usually have the format CPMC/width x height x depth with the class code, for example CPMC/592X592X45-M5.

Note on variants

In the configurator, select the filter class, width, height and depth in mm step by step. Only combinations that exist are offered. With the quick search you can find a version directly by its size (for example 592x592x45) or item number. For some sizes there are two items with the same dimensions but a different item number and price (for example CPMC18X18X2-M5 and CPMC/445X445X45-M5); select these in the Version step. For three versions (CPMC305X305X45M61GP1, CPMC330X345X45M61G and CPMC496X892X96M61G) our article data specify no filter class; you will find them under not specified. The catalogue gives no performance data for custom sizes, further depths and versions with an addition to the item number. Meaning of the suffixes according to AFPRO: P1 = PU gasket on clean-air side, P2 = PU gasket on dust-air side, 1G = grid on clean-air side, 2G = grid on both sides, G = grid on dust-air side, FL = 25 mm flange, EXP = Ex-Protect (ATEX). Please check the installation dimensions of your filter frame before ordering.

Dimensions WxHxD (mm)	Filter area (m²)	Nominal airflow (m³/h)	Initial pressure drop ePM10 75% (Pa)	Initial pressure drop ePM2.5 55% (Pa)	Initial pressure drop ePM1 55% (Pa)	Initial pressure drop ePM1 80% (Pa)
287x592x45	2.7	1380	90	115	130	215
490x592x45	4.8	2420	90	115	130	215
592x592x45	5.8	2950	90	115	130	215
287x592x96	5.0	1380	85	100	115	165
490x592x96	8.8	2420	85	100	115	165
592x592x96	10.7	2950	85	not stated	115	165

Values according to the AFPRO catalogue 2026, p. 71.
