AFPRO APKK Panels

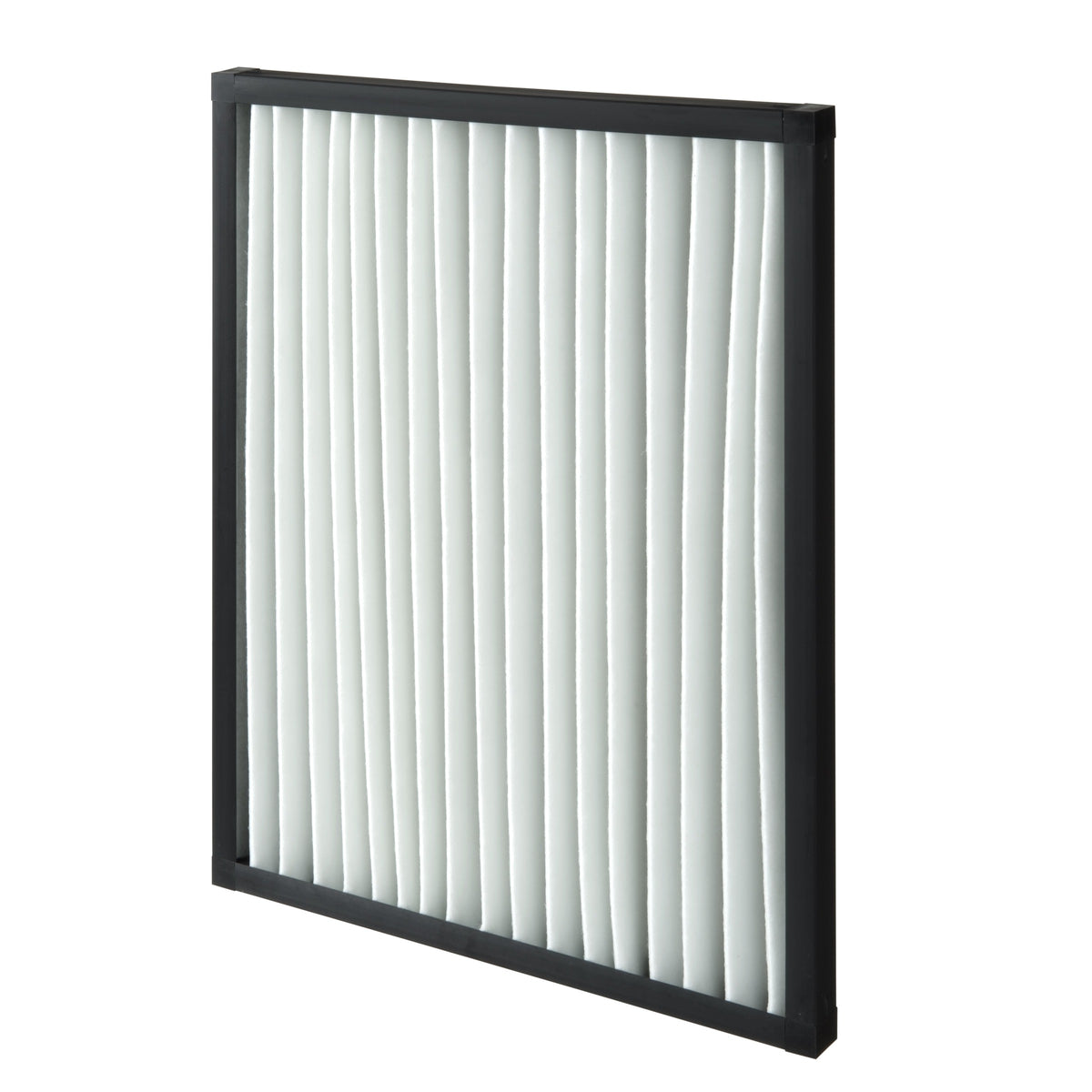

AFPRO APKK panels are panel filters with a synthetic filter medium (PS) in a plastic frame. The manufacturer intends them for ventilation and air conditioning systems (HVAC) and for industry. According to the catalogue, the standard sizes of the series have the filter class ISO Coarse 70% according to ISO 16890.

• 24 standard sizes according to the catalogue: eight frame sizes from 287x592 mm to 592x592 mm, each 25, 48 and 96 mm deep.
• For the same frame size and nominal airflow, the catalogue gives a larger filter area and a lower initial pressure drop for greater depths, for example at 592x592 mm and 3400 m³/h: 0.8 m² and 90 Pa (25 mm), 1.1 m² and 70 Pa (48 mm), 2.2 m² and 50 Pa (96 mm).
• In addition to the standard sizes, we offer custom sizes and further depths.

Select the dimension, the filter class and the depth. The dimension is given as width x height x depth in mm. For variants that match a type in the catalogue table, we show the filter area, nominal airflow and initial pressure drop from the catalogue directly with the variant. The catalogue gives no performance data for custom sizes, further depths and versions with an addition to the article number (FL, 1G or P1). Variants with APAK in the article number (filter class ISO Coarse 60%) are not listed in the AFPRO catalogue 2026; there are no catalogue data for them. Please check the installation dimension of your filter frame before ordering.
