S&P Deutschland GmbH | SKU: 8070402331

S&P IFL Duct Filter Box

Name: S&P IFL Duct Filter Box
Brand: S&P Deutschland GmbH
SKU: 8070402331
Price: 255.99 EUR
Availability: InStock

255^{99 €} ~~330^{82 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

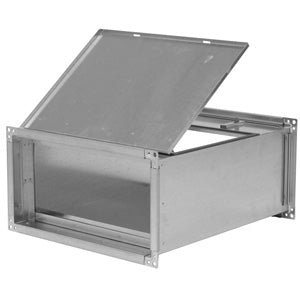

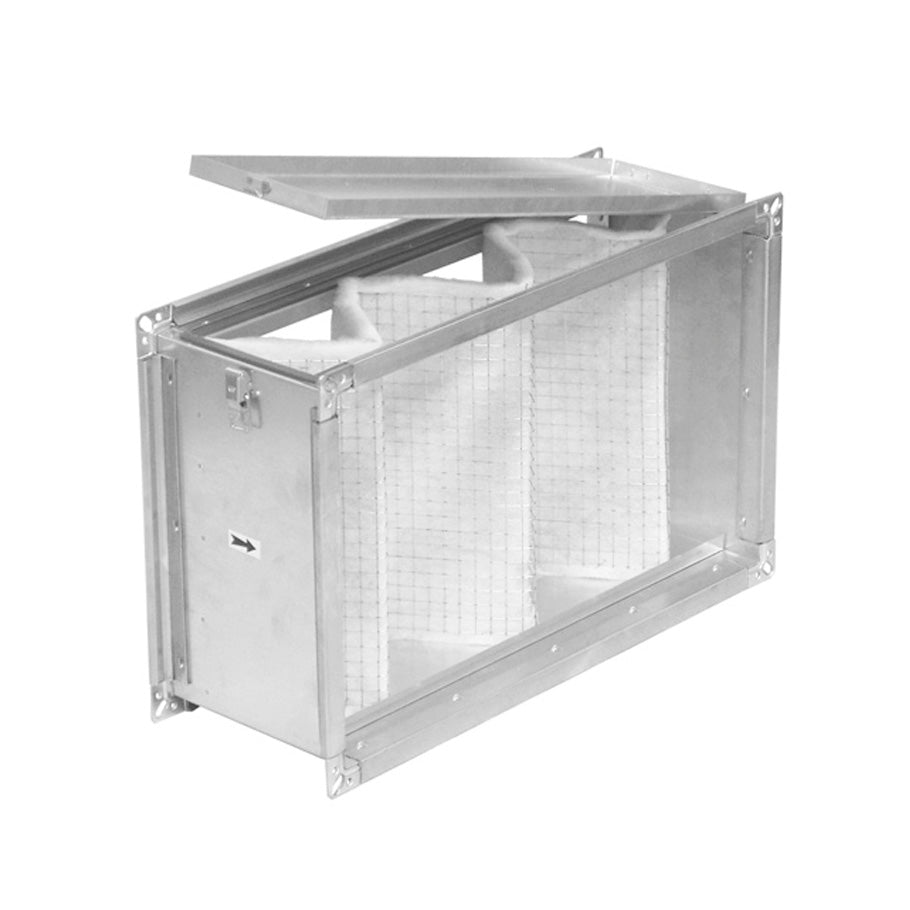

S&P IFL: Duct Filter Box. Available are the versions IFL F and IFL G4 as well as the sizes 200, 225, 250, 285, 315, 355, 400 and 450.

Technical data

Manufacturer	S&P
Housing	galvanised sheet steel, 20 mm standard flange
Recommended final pressure drop	150 Pa
Installation position	any

S&P type	Item number	Version	Size	Duct size W x H	B1 x H1	B2 x H2	Length L	Weight
IFL-200 F	8070402331	IFL F	200	400 x 200 mm	420 x 220 mm	440 x 240 mm	503 mm	5.8 kg
IFL-225 F	8070402332	IFL F	225	500 x 250 mm	520 x 270 mm	540 x 290 mm	503 mm	7.2 kg
IFL-250 F	8070402333	IFL F	250	500 x 300 mm	520 x 320 mm	540 x 340 mm	503 mm	7.8 kg
IFL-285 F	8070402334	IFL F	285	600 x 300 mm	620 x 320 mm	640 x 340 mm	583 mm	9.5 kg
IFL-315 F	8070402335	IFL F	315	600 x 350 mm	620 x 370 mm	640 x 390 mm	583 mm	10.0 kg
IFL-355 F	8070402336	IFL F	355	700 x 400 mm	720 x 420 mm	740 x 440 mm	583 mm	12.0 kg
IFL-400 F	8070402337	IFL F	400	800 x 500 mm	820 x 520 mm	840 x 540 mm	583 mm	14.0 kg
IFL-450 F	8070402338	IFL F	450	1,000 x 500 mm	1,020 x 520 mm	1,040 x 540 mm	583 mm	15.9 kg
IFL-200 G4	8070402360	IFL G4	200	400 x 200 mm	420 x 220 mm	440 x 240 mm	190 mm	3.5 kg
IFL-225 G4	8070402361	IFL G4	225	500 x 250 mm	520 x 270 mm	540 x 290 mm	190 mm	4.0 kg
IFL-250 G4	8070402362	IFL G4	250	500 x 300 mm	520 x 320 mm	540 x 340 mm	190 mm	4.5 kg
IFL-285 G4	8070402363	IFL G4	285	600 x 300 mm	620 x 320 mm	640 x 340 mm	190 mm	5.0 kg
IFL-315 G4	8070402364	IFL G4	315	600 x 350 mm	620 x 370 mm	640 x 390 mm	190 mm	5.5 kg
IFL-355 G4	8070402365	IFL G4	355	700 x 400 mm	720 x 420 mm	740 x 440 mm	190 mm	6.0 kg
IFL-400 G4	8070402366	IFL G4	400	800 x 500 mm	820 x 520 mm	840 x 540 mm	190 mm	7.5 kg
IFL-450 G4	8070402367	IFL G4	450	1,000 x 500 mm	1,020 x 520 mm	1,040 x 540 mm	190 mm	9.0 kg

Features

Dimensions W1 x H1 and W2 x H2 according to the dimension drawing in the S&P data sheet (flange dimensions).

Note on variants

The table above lists the S&P type and the item number for each option.

Data sheets and manuals (PDF)

Catalogue page mounting accessories filter boxes (PDF)
