S&P Deutschland GmbH | SKU: 5700613800

S&P HXTR Axial Fan

Name: S&P HXTR Axial Fan
Brand: S&P Deutschland GmbH
SKU: 5700613800
Price: 1504.99 EUR
Availability: InStock

1.504^{99 €} ~~2.128^{91 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Version

Size

Product variants

Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P HXTR: Axial Fan. Available are the versions HXTR A ECOWATT V5 and HXTR/4 as well as the sizes 500, 560, 630, 250, 315, 355, 400 and 450.

Technical data

Manufacturer	S&P
Design	axial wall fan with wall plate
Mounting position	any axis position

S&P type	Item number	Version	Size	Speed	Max. power input	Motor current 400 V	Sound pressure level¹	Airflow free-blowing	Max. air temperature	Weight	Min. core hole (Ø D1)	Series

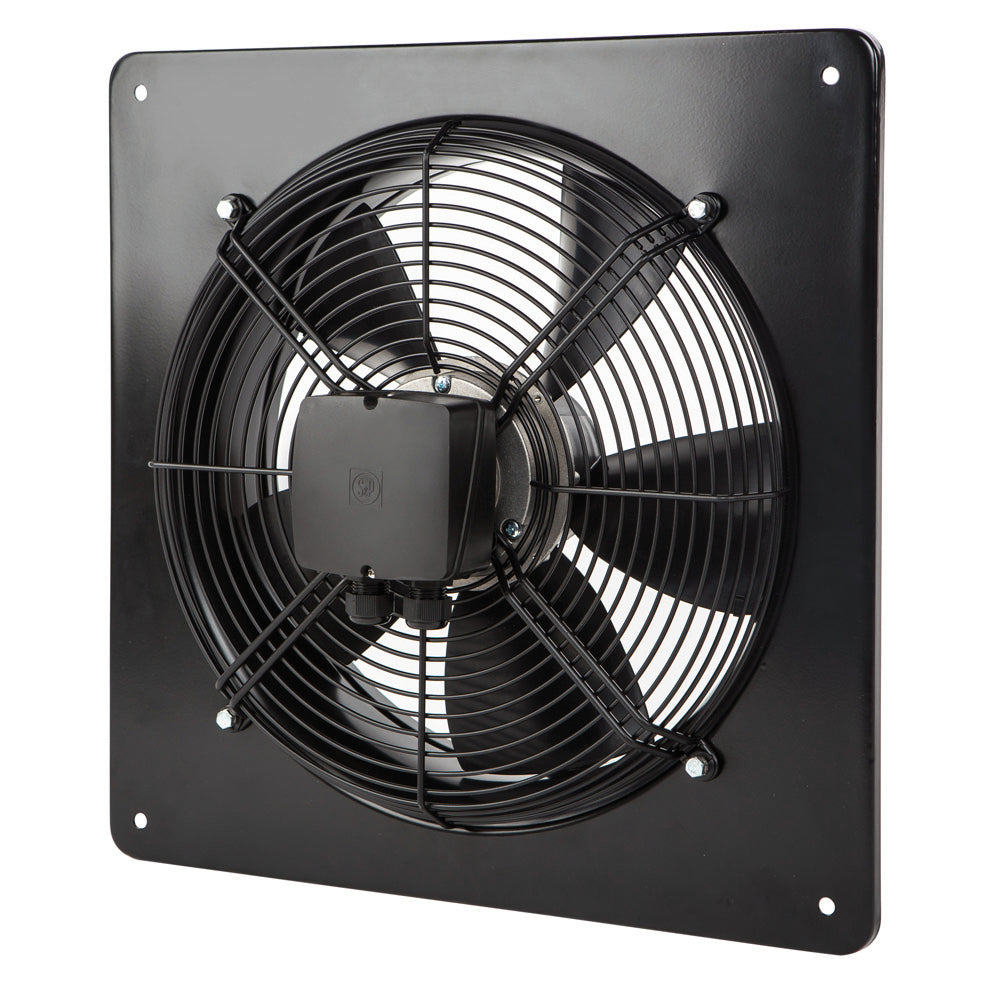

HXTR-500-A ECOWATT V5	5700613800	HXTR A ECOWATT V5	500	n/a	739 W	n/a	n/a	n/a	n/a	22.5 kg	n/a	HXBR/HXTR ECOWATT
HXTR-560-A ECOWATT V5	5700614100	HXTR A ECOWATT V5	560	n/a	850 W	n/a	n/a	n/a	n/a	27.0 kg	n/a	HXBR/HXTR ECOWATT
HXTR-630-A ECOWATT V5	5700613400	HXTR A ECOWATT V5	630	n/a	931 W	n/a	n/a	n/a	n/a	33.0 kg	n/a	HXBR/HXTR ECOWATT

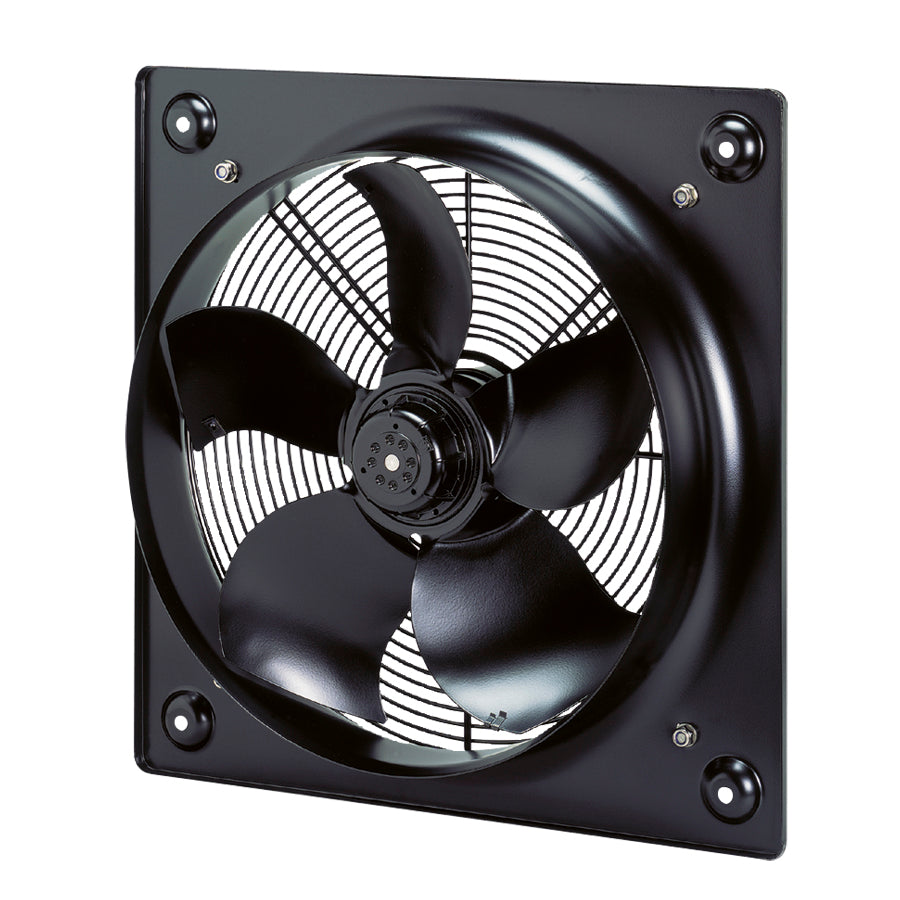

HXTR/4-250	5750253600	HXTR/4	250	1,475 rpm	47 W	0.2 A	47 dB(A)	770 m³/h	+60 °C	6.5 kg	261 mm	HXBR/HXTR
HXTR/4-315	5750255100	HXTR/4	315	1,450 rpm	98 W	0.3 A	53 dB(A)	2,020 m³/h	+70 °C	7.0 kg	320 mm	HXBR/HXTR
HXTR/4-355	5750257700	HXTR/4	355	1,410 rpm	145 W	0.4 A	59 dB(A)	2,890 m³/h	+70 °C	7.5 kg	363 mm	HXBR/HXTR
HXTR/4-400	5740038600	HXTR/4	400	1,400 rpm	236 W	0.5 A	61 dB(A)	4,620 m³/h	+60 °C	9.0 kg	410 mm	HXBR/HXTR
HXTR/4-450	5740051700	HXTR/4	450	1,420 rpm	450 W	0.9 A	64 dB(A)	6,910 m³/h	+60 °C	11.5 kg	457 mm	HXBR/HXTR
HXTR/4-500	5700384200	HXTR/4	500	1,410 rpm	891 W	1.7 A	67 dB(A)	9,550 m³/h	+70 °C	16.0 kg	512 mm	HXBR/HXTR
HXTR/4-560	5700388300	HXTR/4	560	1,410 rpm	1,201 W	2.4 A	69 dB(A)	12,040 m³/h	+70 °C	21.5 kg	570 mm	HXBR/HXTR
HXTR/4-630	5700392300	HXTR/4	630	1,420 rpm	1,066 W	2.2 A	67 dB(A)	13,720 m³/h	+60 °C	24.0 kg	640 mm	HXBR/HXTR

¹ Sound pressure level according to S&P in free field, measured at approx. three times the impeller diameter, at least 1.5 m distance.

Features

Wall plate and guard epoxy polyester coated according to the manufacturer, stainless steel screws.

Note on variants

The table above lists the S&P type and the item number for each option.

Further axial fans

The HXTR is the three-phase version of the wall fans; for single-phase there is the S&P HXBR. For installation in ducts the S&P TCBT H axial fan for 400 V is suitable, as a mobile floor fan the S&P PBB. All models are listed under Axial Fans, the differences between designs in the guide types of fans at a glance.

Data sheets and manuals (PDF)

Operating instructions HXTR A ECOWATT V5 (PDF)
