InoxAir GmbH | SKU: RDR1001

InoxAir Inspection Cover for Pipe and Duct

Name: InoxAir Inspection Cover for Pipe and Duct
Brand: InoxAir GmbH
SKU: RDR1001
Price: 21.99 EUR
Availability: InStock

21^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

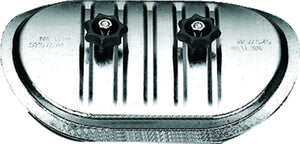

InoxAir inspection cover is an inspection cover for round ventilation pipes or ventilation ducts. It closes an inspection opening; the size depends on the pipe diameter or the cut-out in the duct.

Technical data

Line	PROFIline
Material according to inoxair.de	galvanized steel sheet
Source	InoxAir catalogue Pipe materials, p. 173; inoxair.de

Note on variants

Select the version for pipe or duct and the size.

Size	Item number	Duct Ø	Dimensions L x W according to the catalogue	Cut-out L x W
for pipe Ø 100 mm	RDR1001	Ø 100 mm	180 x 80 mm
for pipe Ø 125 mm	RDR1251	Ø 125 mm	180 x 80 mm
for pipe Ø 160 mm	RDR1601	Ø 160 mm	250 x 150 mm
for pipe Ø 200 mm	RDR2001	Ø 200 mm	250 x 150 mm
for pipe Ø 250 mm	RDR2501	Ø 250 mm	250 x 150 mm
for pipe Ø 300 mm	RDR3001	Ø 300 mm	250 x 150 mm
for pipe Ø 315 mm	RDR3151	Ø 315 mm	250 x 150 mm
for pipe Ø 355 mm	RDR3501	Ø 355 mm	250 x 150 mm
for pipe Ø 400 mm	RDR4001	Ø 400 mm	250 x 150 mm
for pipe Ø 450 mm	RDR4501	Ø 450 mm	300 x 200 mm
for pipe Ø 500 mm	RDR5000	Ø 500 mm	300 x 200 mm
for pipe Ø 560 mm	RDR5600	Ø 560 mm	400 x 300 mm
for duct, 200 x 100 mm	RDK2010			200 x 100 mm
for duct, 300 x 200 mm	RDK3020			300 x 200 mm
for duct, 400 x 300 mm	RDK4030			400 x 300 mm
for duct, 500 x 300 mm	RDK5030			500 x 300 mm

Features

For ducts Ø 100 to 560 mm.

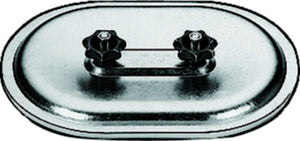

Separate inspection doors (RDK) are available for rectangular ducts.
According to inoxair.de including a template for the cut-out.
Separate inspection covers (RDR) are available for round ducts.

Data sheets and manuals (PDF)

InoxAir Catalog Ducting Materials (PDF)
