Resol Multi-Function Controller DeltaSol® MX

Name: Resol Multi-Function Controller DeltaSol® MX
Brand: Resol GmbH
SKU: 11599200
Price: 854.99 EUR
Availability: InStock

854^{99 €} ~~1.017^{21 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

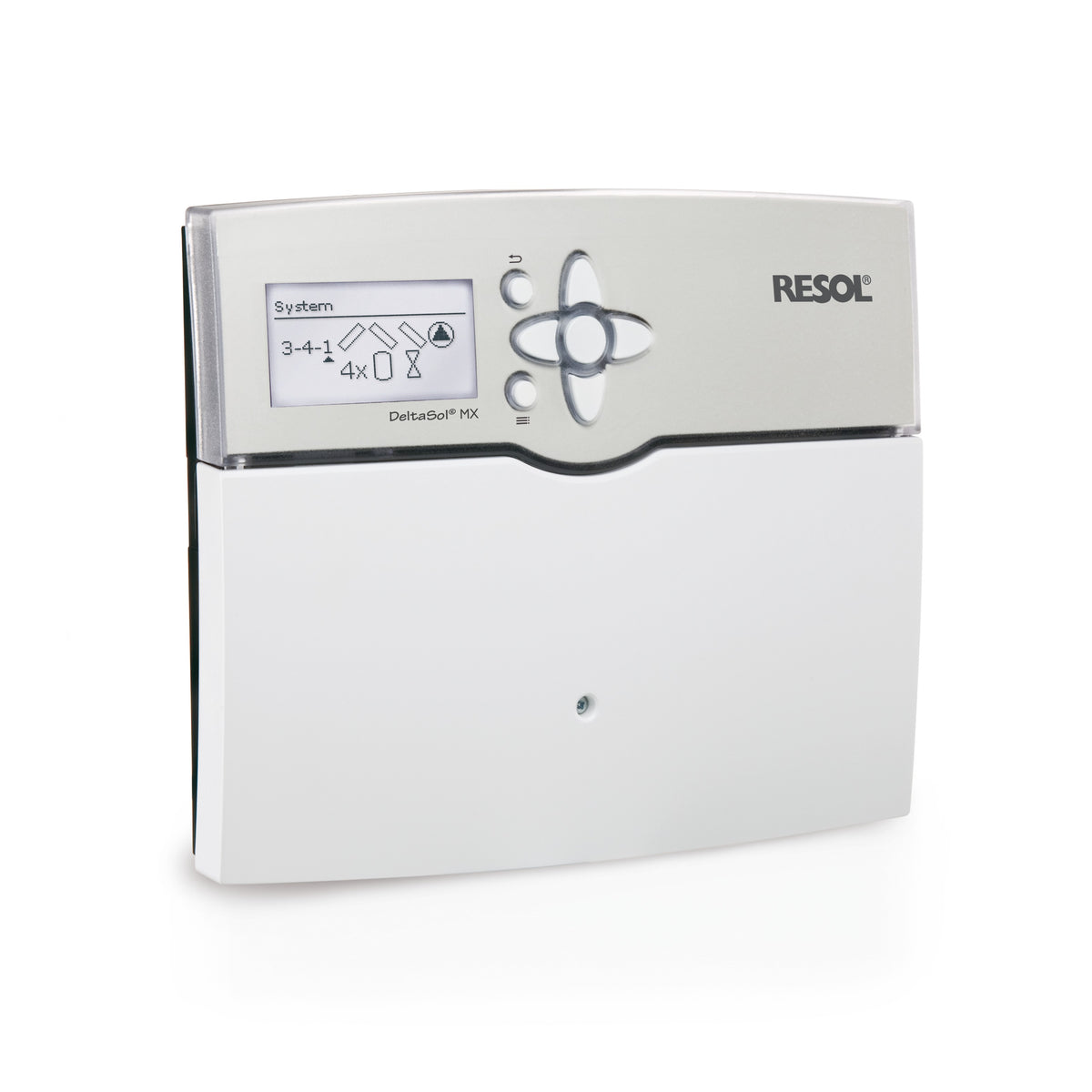

Resol DeltaSol® MX is a multifunction controller for solar and heating systems with several system parts. According to the manufacturer, it is designed to control solar and non-solar system parts together; pre-programmed optional functions are combined and parameterised.

The controller has 14 relay outputs, 4 PWM outputs and 12 inputs for temperature sensors. According to Resol, up to 5 extension modules can be connected via the VBus® (45 sensors and 39 relays in total). According to the manufacturer, an SD card is included in the scope of delivery.

Technical data

Inputs	12 inputs for Pt1000, Pt500 or KTY temperature sensors, 3 V40 pulse inputs, 1 frequency input, 1 input for a CS10 irradiation sensor, 2 analogue inputs for Grundfos Direct Sensors™ VFS/RPS or FRH humidity sensors, 2 digital inputs for Grundfos Direct Sensors™ VFD/RPD or FRHd humidity sensors
Outputs	14 relay outputs (13 semiconductor relays for speed control, 1 potential-free relay), 4 PWM outputs (switchable to 0 to 10 V)
PWM frequency and PWM voltage	512 Hz, 10.5 V
Switching capacity	1 (1) A 240 V~ per semiconductor relay; 4 (2) A 24 V⎓ / 240 V~ potential-free relay
Total switching capacity	6.3 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Mode of operation	Type 1.B.C.Y
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®, SD card slot
VBus® current output	35 mA
Display	full graphic display, operating control LED (directional pad), backlight
Operation	7 buttons
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T6,3A
Dimensions	253 x 200 x 47 mm

Features

7 integrated heat quantity meters and control of weather-compensated heating circuits; according to the manufacturer, up to 7 heating circuits are possible.
Data logging, data backup, firmware updates and transfer of prepared settings via SD card.
Cooling via the heating circuit with condensation detection; dew point calculation with the FRH or FRHd humidity sensor.
Remote access to the heating circuits via room control units and the VBus®Touch HC app.
Heat pump demand optionally possible.
Automatic function control according to VDI 2169, balance and diagnostic functions.

Note on variants

Standard: controller with SD card, without temperature sensors (article number 11599200). Complete package: controller with SD card and 6 Pt1000 temperature sensors, of which 2 x FKP6 and 4 x FRP6 (article number 11599210).

Which Resol controller fits?

For a simple solar system with one storage tank, a temperature difference controller or a compact class solar controller is often sufficient. Multi-function controllers are intended for several tanks, heating circuits or solar and non-solar system parts together. For remote access and building management there are the datalogger and the communication module; the DeltaSol MX Plus has a built-in web server.

Resol DeltaSol A, AX und AX HE: temperature difference controllers with 2 sensor inputs for simple systems
Resol DeltaSol CS Plus: solar controller with 2 semiconductor relays, 2 PWM outputs and 10 basic systems
Resol DeltaSol SL: compact class solar controller with 27 pre-configured systems
Resol DeltaSol BX Plus: compact multi-function controller, via VBus up to 21 sensors and 15 relays
Resol DeltaSol MX Plus: multi-function controller with web server, LAN, WLAN and Modbus, up to 56 sensors and 40 relays
Resol DeltaTherm FK: controller for solid fuel boilers, stoves with water jacket and pellet heating
Resol Datalogger DL2 Plus: connects up to 2 controllers to VBus.net, BACnet/IP or Modbus/TCP
Resol Kommunikationsmodul KM2: connects a controller to the internet via VBus.net

All Resol products are listed under Resol, controllers under Solar Controllers and accessories under Solar Technology. The guide funding for solar systems describes funding programmes.
