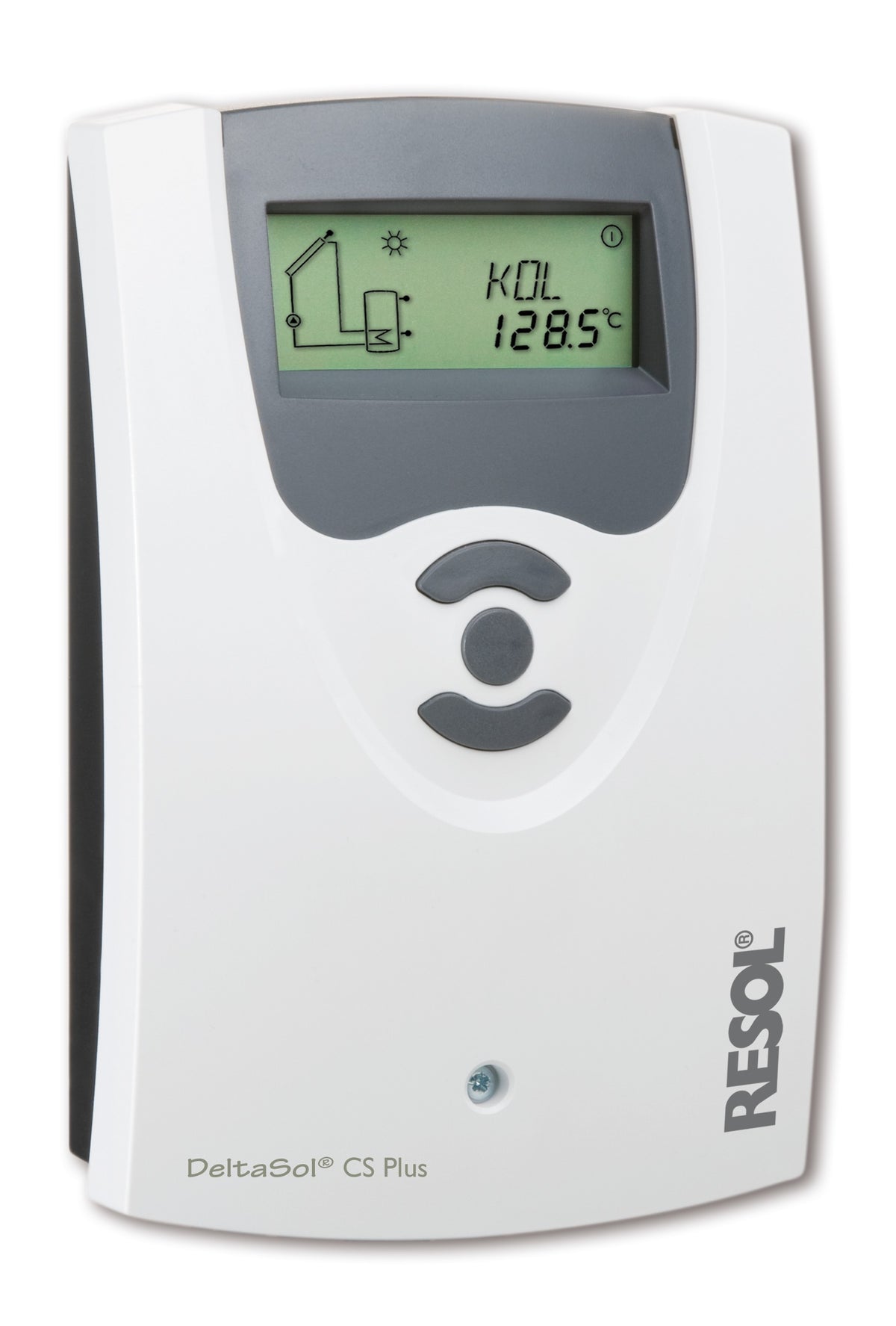

Resol Solar Controller DeltaSol® CS Plus

Name: Resol Solar Controller DeltaSol® CS Plus
Brand: Resol GmbH
SKU: 11500310
Price: 447.99 EUR
Availability: InStock

447^{99 €} ~~514^{44 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol DeltaSol® CS Plus is a solar controller for speed-controlled activation of high-efficiency pumps in standard solar and heating systems. It has two semiconductor relays, two PWM outputs and an input for a Grundfos Direct Sensor™ VFD for heat quantity measurement.

According to the manufacturer, 10 pre-programmed basic systems are available; a commissioning menu guides you through the initial configuration in eight steps. A PWM adapter cable is included in the scope of delivery.

Technical data

Inputs	4 Pt1000 temperature sensors, 1 Grundfos Direct Sensor™ VFD
Outputs	2 semiconductor relays, 2 PWM outputs
PWM frequency and PWM voltage	512 Hz, 10.5 V
Switching capacity	1 (1) A 240 V~ per semiconductor relay
Total switching capacity	2 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Mode of operation	Type 1.C.Y
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®
VBus® current output	35 mA
Display	system monitoring display, 16-segment and 7-segment display, 8 symbols for system status
Operation	3 buttons
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T2A
Dimensions	172 x 110 x 46 mm

Features

Functions according to the data sheet: evacuated tube collector function, thermostat function, function control, operating hours counter, speed control and heat quantity measurement.
Thermal disinfection function optional, drainback option.
Heat pump demand optionally possible.

Note on variants

Standard: controller with PWM adapter cable, without temperature sensors (article number 11500310). Complete package: additionally 4 Pt1000 temperature sensors (2 x FKP6, 2 x FRP6) (article number 11500300).

Which Resol controller fits?

For a simple solar system with one storage tank, a temperature difference controller or a compact class solar controller is often sufficient. Multi-function controllers are intended for several tanks, heating circuits or solar and non-solar system parts together. For remote access and building management there are the datalogger and the communication module; the DeltaSol MX Plus has a built-in web server.

Resol DeltaSol A, AX und AX HE: temperature difference controllers with 2 sensor inputs for simple systems
Resol DeltaSol SL: compact class solar controller with 27 pre-configured systems
Resol DeltaSol BX Plus: compact multi-function controller, via VBus up to 21 sensors and 15 relays
Resol DeltaSol MX: multi-function controller with 14 relays, expandable to 45 sensors and 39 relays
Resol DeltaSol MX Plus: multi-function controller with web server, LAN, WLAN and Modbus, up to 56 sensors and 40 relays
Resol DeltaTherm FK: controller for solid fuel boilers, stoves with water jacket and pellet heating
Resol Datalogger DL2 Plus: connects up to 2 controllers to VBus.net, BACnet/IP or Modbus/TCP
Resol Kommunikationsmodul KM2: connects a controller to the internet via VBus.net

All Resol products are listed under Resol, controllers under Solar Controllers and accessories under Solar Technology. The guide funding for solar systems describes funding programmes.
