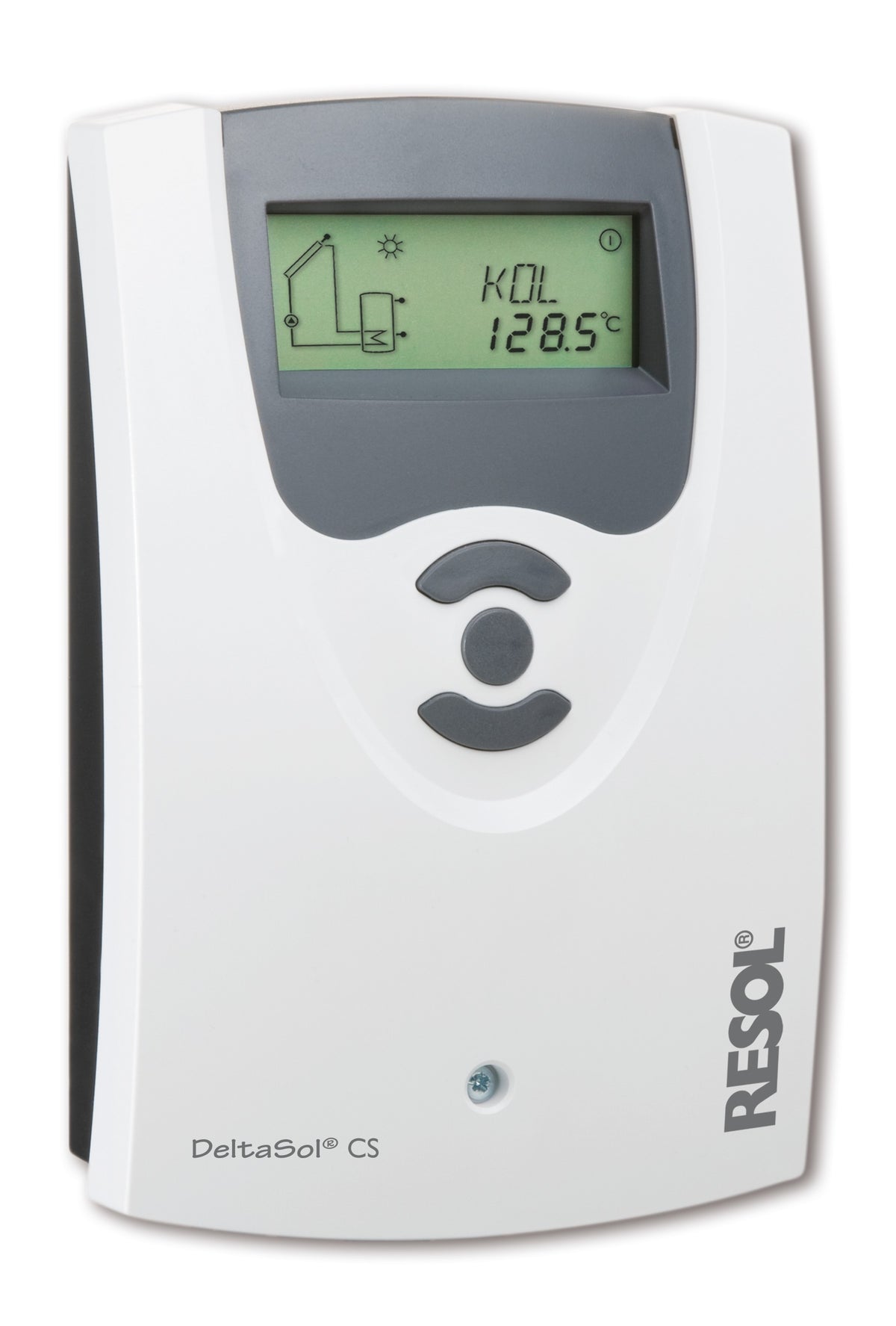

Resol Solar Controller DeltaSol® CS

Name: Resol Solar Controller DeltaSol® CS
Brand: Resol GmbH
SKU: 11500470
Price: 361.49 EUR
Availability: InStock

361^{49 €} ~~484^{09 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol DeltaSol® CS/2 and CS/4 are solar controllers for speed-controlled activation of a high-efficiency pump in small standard solar and heating systems. Both have a PWM output and an input for a Grundfos Direct Sensor™ VFD for heat quantity measurement.

The CS/2 has one semiconductor relay, the CS/4 has two semiconductor relays and 3 selectable basic systems. Configuration is carried out via a commissioning menu. According to the manufacturer, a PWM adapter cable is included in the scope of delivery.

Technical data

Inputs	4 Pt1000 temperature sensors, 1 Grundfos Direct Sensor™ VFD
PWM frequency and PWM voltage	512 Hz, 10.5 V
Switching capacity	1 (1) A 240 V~ per semiconductor relay
Power supply	100 to 240 V~, 50 to 60 Hz
Mode of operation	Type 1.C.Y
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®
VBus® current output	35 mA
Display	system monitoring display, 16-segment and 7-segment display, 8 symbols for system status
Operation	3 buttons
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T2A
Dimensions	172 x 110 x 46 mm

	DeltaSol® CS/2	DeltaSol® CS/4
Outputs	1 semiconductor relay, 1 PWM output	2 semiconductor relays, 1 PWM output
Total switching capacity	1 A 240 V~	2 A 240 V~
Functions	function control, operating hours counter, speed control, heat quantity measurement	additionally evacuated tube collector function and thermostat function

Features

Drainback option.
Switching between °C and °F.
Heat quantity measurement via Grundfos Direct Sensor™ VFD.

Note on variants

Select the controller type and scope of delivery. The DeltaSol® CS Plus with two PWM outputs is available as a separate product.

Version	Article number	Scope of delivery
CS/2, standard	11500470	DeltaSol® CS/2 with PWM adapter cable
CS/2, complete package	11500460	DeltaSol® CS/2 with PWM adapter cable and 3 Pt1000 temperature sensors (1 x FKP6, 2 x FRP6)
CS/4, standard	11500450	DeltaSol® CS/4 with PWM adapter cable
CS/4, complete package	11500440	DeltaSol® CS/4 with PWM adapter cable and 3 Pt1000 temperature sensors (1 x FKP6, 2 x FRP6)
