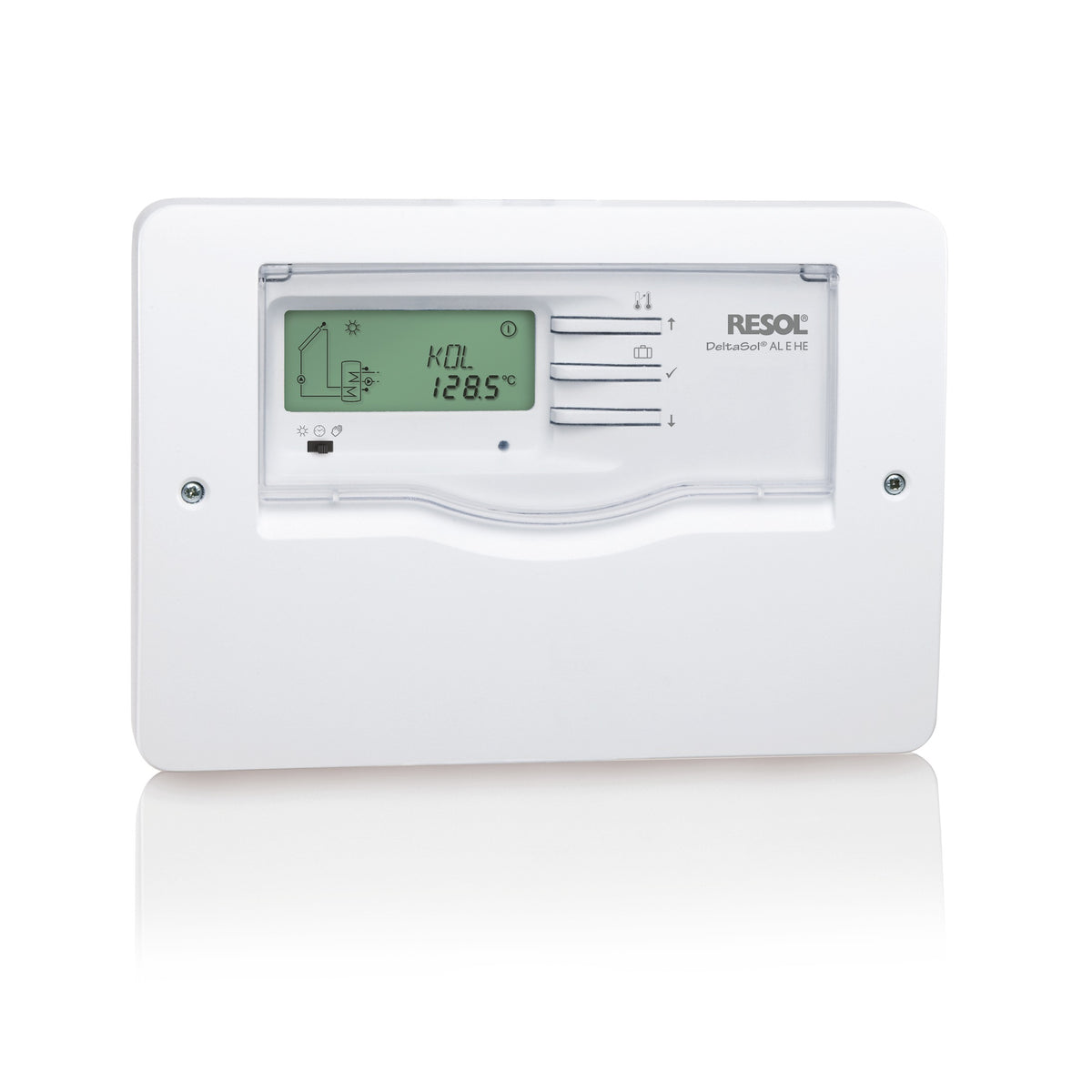

Resol Solar Controller DeltaSol® AL E HE

Name: Resol Solar Controller DeltaSol® AL E HE
Brand: Resol GmbH
SKU: 11532590
Price: 443.99 EUR
Availability: InStock

443^{99 €} ~~509^{68 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol DeltaSol® AL E HE is a solar controller for standard solar systems with electric backup heating. It controls a high-efficiency pump with speed control via a PWM output and has two high-current relays to which, according to the manufacturer, an electric immersion heater of up to 3 kW (230 V~) can be connected directly, without auxiliary relays.

The electric backup heating is controlled by time and temperature. The controller has the RESOL VBus® for data communication.

Technical data

Inputs	4 Pt1000 temperature sensors (1 of which can be used for the RCTT remote control), 1 Grundfos Direct Sensor™ VFD, 1 PWM feedback
Outputs	1 semiconductor relay, 2 high-current relays for an electric immersion heater, 1 PWM output
PWM frequency and PWM voltage	512 Hz, 10 V
Switching capacity	1 (1) A 240 V~ (semiconductor relay); 14 (3) A 240 V~ / 24 V⎓ (potential-free high-current relay)
Power supply	100 to 240 V~, 50 to 60 Hz
Standby	0.67 W
Mode of operation	Type 1.B.Y
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®
VBus® current output	35 mA
Display	system monitor for system visualisation, 16-segment display, 7-segment display, 8 symbols for system status, backlight, operating control LED
Operation	3 buttons, 1 slide switch
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T2A
Dimensions	144 x 208 x 43 mm

Features

Domestic hot water heating with rapid heating and thermal disinfection.
Solar backup heating suppression, holiday mode and manual mode.
Status display for a bidirectional HE pump.
Drainback option and evacuated tube collector function.
Heat quantity measurement via Grundfos Direct Sensor™ VFD, function control, operating hours counter, commissioning menu.

Note on variants

Standard: controller without temperature sensors (article number 11532590). Complete package: controller with Pt1000 temperature sensors of types FKP6 and FRP6 (article number 11532600). An immersion heater is not included in either variant.
