AFPRO Filters | SKU: HPQ-65-A

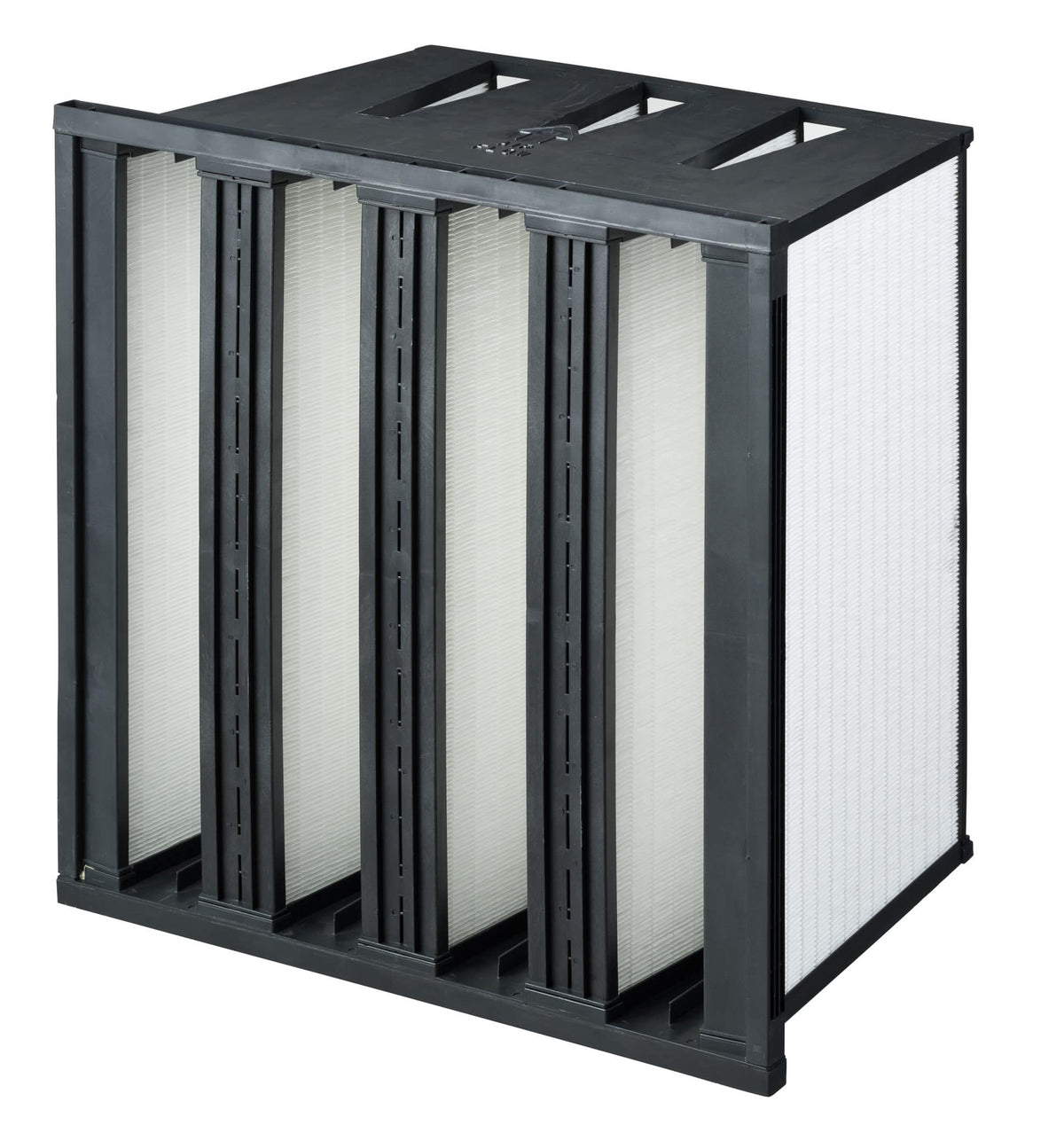

AFPRO HPQ Compact Filters

Name: AFPRO HPQ Compact Filters
Brand: AFPRO Filters
SKU: HPQ-65-A
Price: 121.49 EUR
Availability: InStock

121^{49 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Precise fit by dimensions and filter class
✓ Original manufacturer quality
✓ Expert advice on the right filter class
✓ Pay by PayPal, card, Klarna or bank transfer

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

AFPRO HPQ compact filters are mini-pleat filters in a V-shaped design with a glass fibre medium and a plastic frame. The manufacturer intends them for HVAC systems and for industry. The HPQ series covers the filter classes ePM2.5 55%, ePM1 55% and ePM1 80% according to ISO 16890 and E10, E11 and E12 according to EN 1822.

Technical data

Selected version

Filter class (ISO 16890)	ePM2.5 55%
Nominal air flow	3,400 m³/h
Initial pressure drop	75 Pa
Max. final pressure drop	450 Pa
Filter area	18.8 m²
Frame material	Plastic
Eurovent energy class	B
Max. operating temperature	65 °C

Series	HPQ (AFPRO Filters, catalogue 2026, p. 56)
Filter classes according to ISO 16890	ePM2.5 55%, ePM1 55%, ePM1 80%
Filter classes according to EN 1822	E10, E11, E12
Filter medium	glass fibre
Frame	plastic
Spacers	hot-melt adhesive
Bonding	two-component polyurethane
Maximum final pressure drop	450 Pa
Maximum temperature	65 °C
Maximum relative humidity	100%
Depth	292 mm

Features

V-shaped construction (manufacturer's information).
According to the manufacturer, the maximum airflow is 45% above the nominal value.
Three sizes per filter class according to the catalogue (height x width): A = 592x592 mm, B = 490x592 mm, C = 288x592 mm, each 292 mm deep.
For the same size, the initial pressure drop at nominal airflow increases with the filter class, for example at 592x592x292 mm and 3400 m³/h: 75 Pa (ePM2.5 55%), 95 Pa (ePM1 55%), 110 Pa (ePM1 80%), 170 Pa (E10).
For E11 and E12 the catalogue gives a lower nominal airflow, for example 2000 m³/h at 592x592x292 mm.
The manufacturer recommends installing a pre-filter upstream.

Note on variants

Select the dimension and the filter class. The technical data and the table apply to the 18 types of the HPQ series (HPQ-65, HPQ-85, HPQ-98, HPQ-E10, HPQ-E11 and HPQ-E12, each in sizes A, B and C). This product also contains variants of a different design, for example HPQ-85G with a depth of 85 mm (article numbers HPQ-85-.../135G, ePM1 55%) and activated carbon compact filters (HPQ-AK), as well as further types and custom sizes. The data above do not apply to these variants.

Type	Dimensions HxWxD (mm)	Filter class	Filter area (m²)	Nominal airflow (m³/h)	Initial pressure drop at nominal airflow (Pa)
HPQ-65-A	592x592x292	ePM2.5 55%	18.8	3400	75
HPQ-65-B	490x592x292	ePM2.5 55%	15.3	2790	75
HPQ-65-C	288x592x292	ePM2.5 55%	8.4	1590	75
HPQ-85-A	592x592x292	ePM1 55%	18.8	3400	95
HPQ-85-B	490x592x292	ePM1 55%	15.3	2790	95
HPQ-85-C	288x592x292	ePM1 55%	8.4	1590	95
HPQ-98-A	592x592x292	ePM1 80%	18.8	3400	110
HPQ-98-B	490x592x292	ePM1 80%	15.3	2790	110
HPQ-98-C	288x592x292	ePM1 80%	8.4	1590	110
HPQ-E10-A	592x592x292	E10	18.8	3400	170
HPQ-E10-B	490x592x292	E10	15.3	2790	170
HPQ-E10-C	288x592x292	E10	8.4	1590	170
HPQ-E11-A	592x592x292	E11	18.8	2000	130
HPQ-E11-B	490x592x292	E11	15.3	1640	130
HPQ-E11-C	288x592x292	E11	8.4	940	130
HPQ-E12-A	592x592x292	E12	18.8	2000	180
HPQ-E12-B	490x592x292	E12	15.3	1640	180
HPQ-E12-C	288x592x292	E12	8.4	940	180

Values according to the AFPRO catalogue 2026, p. 56.
