AFPRO Filters | SKU: HP.HOLD.FR.AD/G

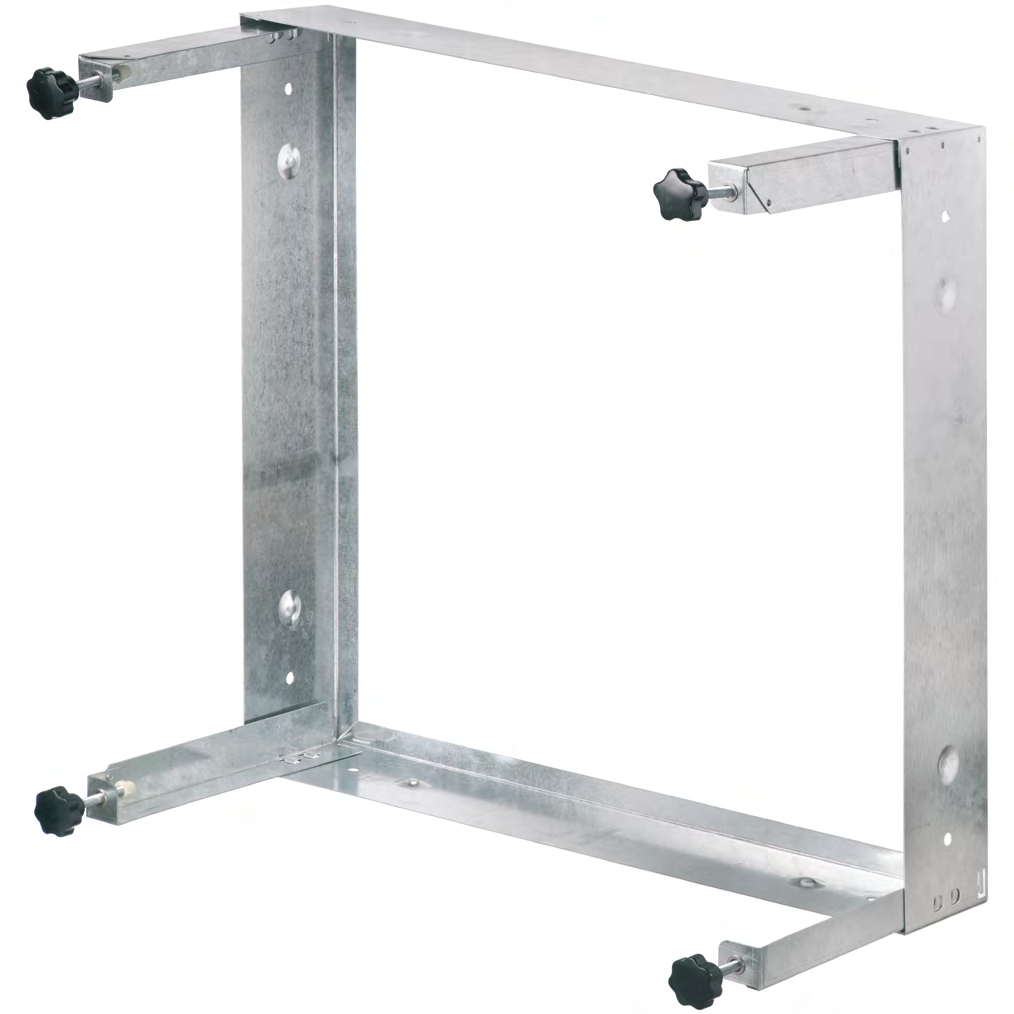

AFPRO HEPA retaining frame

Name: AFPRO HEPA retaining frame
Brand: AFPRO Filters
SKU: HP.HOLD.FR.AD/G
Price: 100.49 EUR
Availability: InStock

100^{49 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Dimension

Material

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

AFPRO HEPA retaining frame comprises holding frames of the HF high-efficiency air filter series by AFPRO Filters. They take high-efficiency air filters with a depth of 292 mm; the manufacturer intends them for cleanrooms and hospitals. According to the manufacturer, the filter can be pressed into the gasket with star knobs.

Technical data

Selected version

Frame material	Galvanised steel
Max. operating temperature	70 °C

Series	HF high-efficiency air filters (AFPRO Filters, catalogue 2026, p. 139)
Application	cleanrooms, hospitals
Frame	galvanised steel or stainless steel, depending on the variant
Maximum temperature	70 °C
Frame depth	125 mm
Filter depth	292 mm

Features

Included according to the manufacturer: fastenings for 292 mm deep filters.
Four frame sizes according to the catalogue, suitable for filters with 610x610, 305x610, 592x592 and 288x592 mm.
According to the manufacturer, HEPA filter frames must be completely tight.

Note on variants

Select the frame dimension (width x height x depth in mm) and the material. The table shows the material for each article number. Please check the installation dimensions before ordering.

Type	Frame WxHxD (mm)	Filter mounting dimension (mm)	Material
HP.HOLD.FR.EE/G	625x625x125	610x610x292	galvanised steel
HP.HOLD.FR.BE/G	320x625x125	305x610x292	galvanised steel
HP.HOLD.FR.DD/G	607x607x125	592x592x292	galvanised steel
HP.HOLD.FR.AD/G	303x607x125	288x592x292	galvanised steel
HP.HOLD.FR.EE/SS	625x625x125	610x610x292	stainless steel
HP.HOLD.FR.BE/SS	320x625x125	305x610x292	stainless steel
HP.HOLD.FR.DD/SS	607x607x125	592x592x292	stainless steel
HP.HOLD.FR.AD/SS	303x607x125	288x592x292	stainless steel

Values according to the AFPRO catalogue 2026, p. 139.
