AFPRO Filters | SKU: CS-H13-C

AFPRO CS-H13 PTFE Membrane Compact Filter

Name: AFPRO CS-H13 PTFE Membrane Compact Filter
Brand: AFPRO Filters
SKU: CS-H13-C
Price: 332.49 EUR
Availability: InStock

332^{49 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Precise fit by dimensions and filter class
✓ Original manufacturer quality
✓ Expert advice on the right filter class
✓ Pay by PayPal, card, Klarna or bank transfer

Dimension

Filter class

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

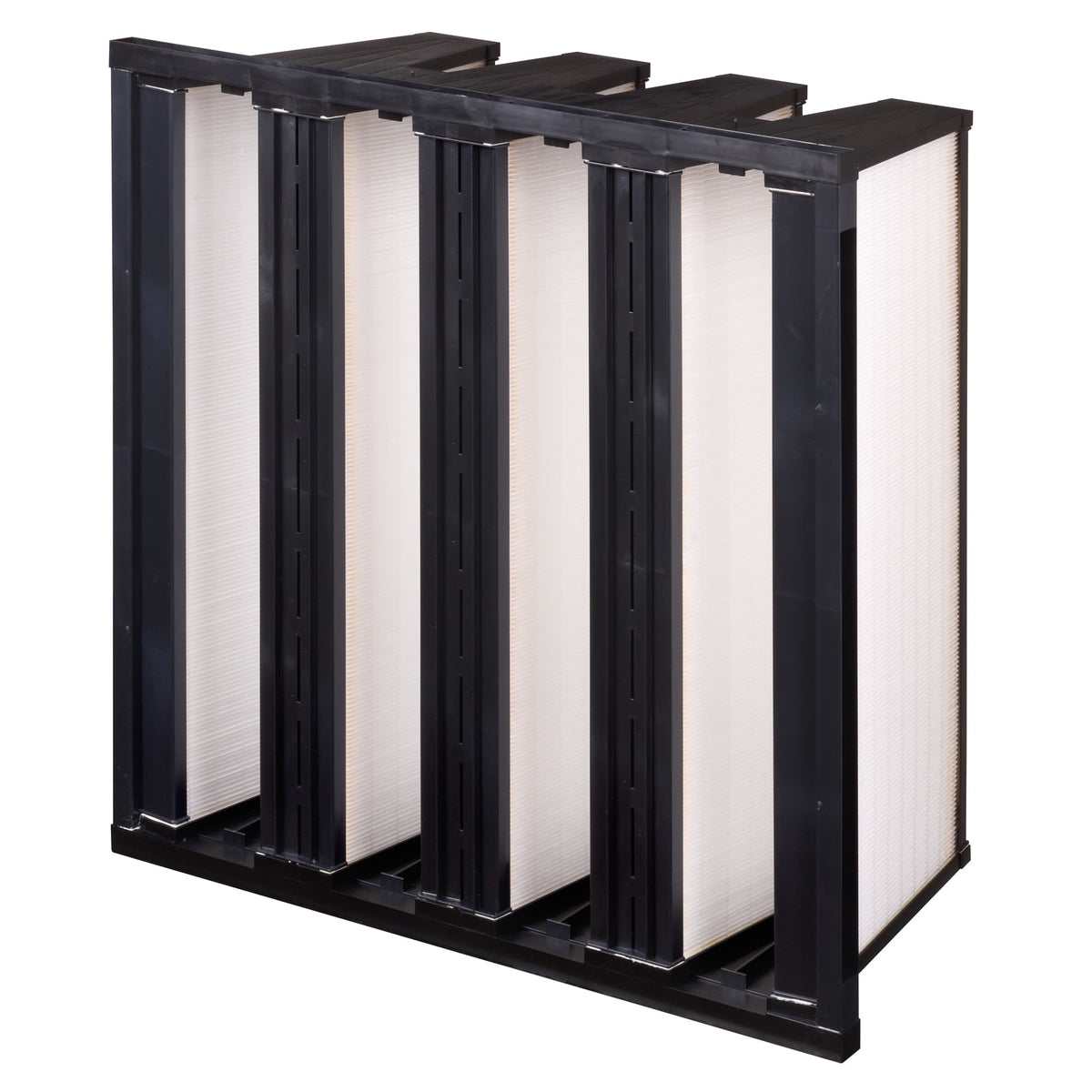

AFPRO CS-H13 PTFE membrane compact filter is a compact filter of the CS-H13 series from AFPRO Filters with a V-shaped construction. The filter medium consists of PTFE (polytetrafluoroethylene) in a plastic frame. The manufacturer intends the series for HVAC and industry. The filter class according to EN 1822 is H13.

Technical data

Selected version

Filter class (EN 1822)	H13
Nominal air flow	1,650 m³/h
Initial pressure drop	200 Pa
Max. final pressure drop	500 Pa
Filter area	7.8 m²
Frame material	Plastic
Max. operating temperature	65 °C

Series	CS-H13 (AFPRO Filters, catalogue 2026, p. 59)
Filter class according to EN 1822	H13
Filter medium	PTFE (polytetrafluoroethylene), 100% according to the manufacturer
Frame	plastic
Spacers	hot-melt adhesive
Bonding	two-component polyurethane
Maximum final pressure drop	500 Pa
Maximum temperature	65 °C
Maximum relative humidity	100%

Features

V-shaped construction (manufacturer's information).
According to EN 1822, H13 belongs to group H (HEPA). Minimum efficiency (integral value at MPPS) according to catalogue p. 27: H13 at least 99.95%.
According to the catalogue, all three catalogue types have the same initial pressure drop of 200 Pa at nominal airflow (see table).
Installation notes from the manufacturer (catalogue p. 142): Observe the correct direction of installation (intake side and clean air side). The filter must be mounted correctly so that it seals; the manufacturer specifies fixing at four points.

Note on variants

Select the dimension and the filter class. The dimension is given in mm, the last figure is the depth. The variants CS-H13-A, CS-H13-B and CS-H13-C correspond to the types in the catalogue table; their catalogue values are also shown with the variant selection. The catalogue gives no values for the variants CS-H13-A/XL and CS-H13-B/P1; for them, our article data state "Standard" as the filter class.

Type	Dimensions HxWxD (mm)	Filter class	Filter area (m²)	Nominal airflow (m³/h)	Initial pressure drop (Pa)
CS-H13-A	592x592x292	H13	16.1	3400	200
CS-H13-B	490x592x292	H13	13.3	2800	200
CS-H13-C	288x592x292	H13	7.8	1650	200

Values according to the AFPRO catalogue 2026, p. 59.
