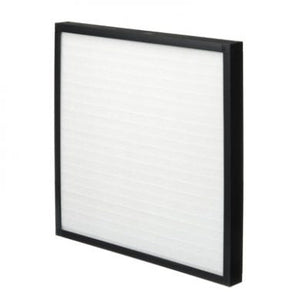

AFPRO CP Panels

AFPRO CP Panels are filters of the type CP from AFPRO Filters in the filter classes ePM1 55%, ePM1 80%, ePM10 75% and ePM2.5 55% according to ISO 16890. According to AFPRO, CP panels are the CPMC design with a plastic frame (CPMC = metal frame); the manufacturer's catalogue 2026 lists no technical data of its own for the type CP.

All CP filters are available in several versions, with metric and inch-based article numbers. Items with a suffix in the article number (for example FL or 1G) can be selected as a separate version.

• In the overview of filter classes according to ISO 16890 (catalogue p. 22), CP/CPMC-M5 is listed under ePM10 75%, CP/CPMC-F7 under ePM1 55% and CP/CPMC-F9 under ePM1 80%.
• The ending of the article number before any addition (M5, F7, F9) corresponds to the filter class in the variant selection.
• The catalogue gives no performance data for the type CP (airflow, pressure drop, filter area).

Suffixes in the article number (manufacturer information AFPRO): P1 = PU gasket on clean-air side, P2 = PU gasket on dust-air side, 1G = grid on clean-air side, 2G = grid on both sides, G = grid on dust-air side, FL = 25 mm flange, P3 = PU gasket on both sides, P7 = flat gasket around the outside, HC = higher capacity. Combinations such as 2GP1 or P12G are made up of these suffixes.

Please check the installation dimension of your filter frame before ordering.

Select the dimension, the filter class and the version. The dimension is given in mm (width x height x depth). The version states the suffix in the article number in plain text, standard means without suffix. Where the same dimension and filter class exist under an inch-based and a metric article number, the article number is given with the version.
