AFPRO Filters | SKU: AC.H.FR.CC/G

AFPRO Activated Carbon Mounting Frame

Name: AFPRO Activated Carbon Mounting Frame
Brand: AFPRO Filters
SKU: AC.H.FR.CC/G
Price: 122.49 EUR
Availability: InStock

122^{49 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Dimension

Material

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

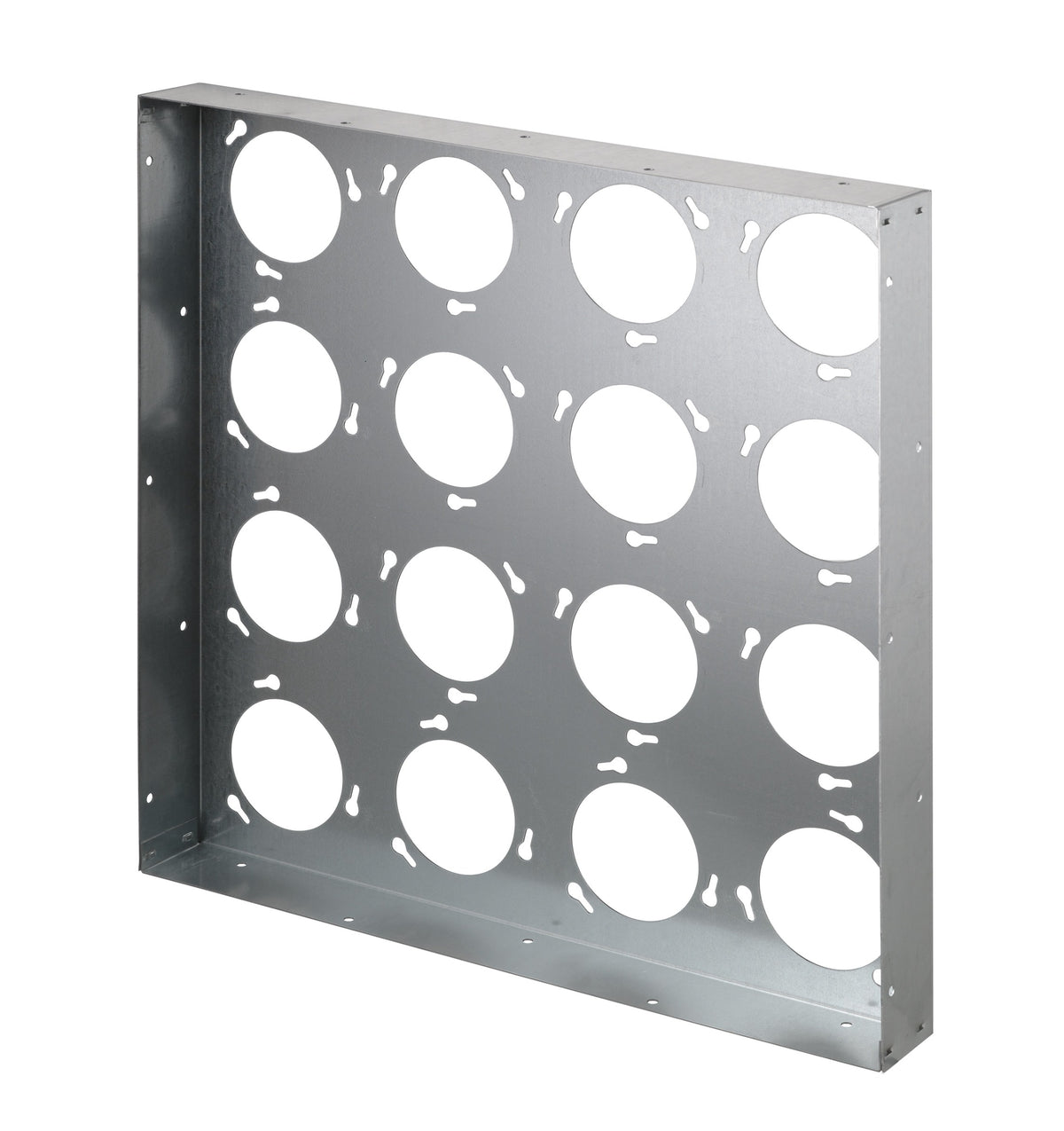

AFPRO Activated Carbon Mounting Frame comprises holding frames of the HF activated carbon series by AFPRO Filters. The manufacturer names airports and industry as applications. The frames are 70 mm deep and have 4 to 16 holes depending on the size.

Technical data

Series	HF activated carbon (AFPRO Filters, catalogue 2026, p. 140)
Application	airports, industry
Frame	galvanised steel or stainless steel, depending on the variant
Maximum temperature	70 °C
Frame depth	70 mm

Features

Four frame sizes according to the catalogue: 610x610, 508x610, 305x610 and 305x305 mm, each in galvanised steel and in stainless steel.
The number of holes per frame is given in the table below.
The catalogue does not state which activated carbon filters fit the frames.

Installation notes

According to the manufacturer, if 3 or more frames are mounted together, they must be reinforced.

Note on variants

Select the dimension (width x height x depth in mm) and the material. Please check the installation dimensions before ordering.

Article number	Catalogue type	Dimensions WxHxD (mm)	Material	Number of holes
AC.H.FR.A/G	AC.H.FR.A	610x610x70	galvanised steel	16
AC.H.FR.B/G	AC.H.FR.B	508x610x70	galvanised steel	12
AC.H.FR.C/G	AC.H.FR.C	305x610x70	galvanised steel	8
AC.H.FR.CC/G	AC.H.FR.CC	305x305x70	galvanised steel	4
AC.H.FR.A/SS	AC.H.FR.A.SS	610x610x70	stainless steel	16
AC.H.FR.B/SS	AC.H.FR.B.SS	508x610x70	stainless steel	12
AC.H.FR.C/SS	AC.H.FR.C.SS	305x610x70	stainless steel	8
AC.H.FR.CC/SS	AC.H.FR.CC.SS	305x305x70	stainless steel	4

Values according to the AFPRO catalogue 2026, p. 140.
