InoxAir GmbH  |  SKU: DW13137H-1

InoxAir Cover Plate, Two-Piece

15249 € 16184 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 working days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Cover Plate, Two-Piece combines the following versions in one product: 0° to 30°, 31° to 45°. Select the required version under Roof pitch and then the matching variant under Size. The details for each version are given below.

The versions in detail

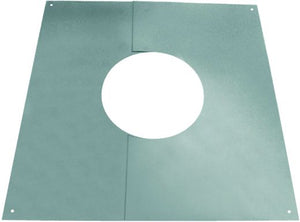

0° to 30°: InoxAir Cover Panel 0°/30°, two-part is a two-part cover plate for the InoxAir double-walled stainless steel pipe system DW. It covers the pipe penetration; according to inoxair.de, 0°/30° is the pitch. Variants with back ventilation are also available.

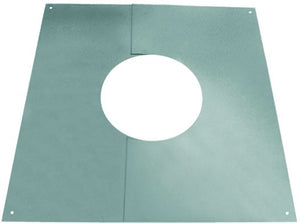

31° to 45°: InoxAir Cover Panel 31°/45°, two-piece is a two-part cover plate for the InoxAir double-walled stainless steel pipe system DW. It covers the pipe penetration; according to inoxair.de, 31°/45° is the pitch. Variants with back ventilation are also available.

Technical data
Line PROFIline
Pipe system double-walled stainless steel pipe system DW
Inner diameter Ø 130 to 500 mm
Source InoxAir catalogue Stainless steel pipes, pp. 193 and 194; inoxair.de; InoxAir catalogue Stainless steel pipes, p. 193

Data per version:

Feature 0° to 30° 31° to 45°
Design cover plate 0°/30°, two-part; variants with back ventilation cover plate 31°/45°, two-part; variants with back ventilation

Note on variants

Select roof pitch and size. Not every combination is available.

Roof pitch Size Item number Dimensions according to the catalogue Catalogue item
0° bis 30° Ø 130 mm, double-walled, without rear ventilation DW13137-1 De 180 mm, 525 x 300 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 130 mm, double-walled, with rear ventilation DW13137H-1 198 x 498 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 150 mm, double-walled, without rear ventilation DW15137-1 De 200 mm, 545 x 310 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 150 mm, double-walled, with rear ventilation DW15137H-1 218 x 518 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 180 mm, double-walled, without rear ventilation DW18137-1 De 230 mm, 595 x 340 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 180 mm, double-walled, with rear ventilation DW18137H-1 248 x 548 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 200 mm, double-walled, without rear ventilation DW20137-1 De 250 mm, 595 x 340 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 200 mm, double-walled, with rear ventilation DW20137H-1 268 x 568 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 250 mm, double-walled, without rear ventilation DW25137-1 De 300 mm, 645 x 370 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 250 mm, double-walled, with rear ventilation DW25137H-1 318 x 618 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 300 mm, double-walled, without rear ventilation DW30137-1 De 350 mm, 695 x 400 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 300 mm, double-walled, with rear ventilation DW30137H-1 368 x 668 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 350 mm, double-walled, without rear ventilation DW35137-1 De 400 mm, 745 x 430 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 350 mm, double-walled, with rear ventilation DW35137H-1 418 x 718 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 400 mm, double-walled, without rear ventilation DW40137-1 De 450 mm, 795 x 460 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 400 mm, double-walled, with rear ventilation DW40137H-1 468 x 768 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 450 mm, double-walled, without rear ventilation DW45137-1 De 500 mm, 845 x 490 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 450 mm, double-walled, with rear ventilation DW45137H-1 518 x 818 mm cover plate 0°/30° with back ventilation, p. 194
0° bis 30° Ø 500 mm, double-walled, without rear ventilation DW50137-1 De 550 mm, 895 x 520 mm cover plate 0°/30°, two-part, p. 193
0° bis 30° Ø 500 mm, double-walled, with rear ventilation DW50137H-1 568 x 868 mm cover plate 0°/30° with back ventilation, p. 194
31° bis 45° Ø 130 mm, double-walled, without rear ventilation DW13136-1 De 180 mm, 525 x 330 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 130 mm, double-walled, with rear ventilation DW13136H-1 198 x 498 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 150 mm, double-walled, without rear ventilation DW15136-1 De 200 mm, 545 x 340 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 150 mm, double-walled, with rear ventilation DW15136H-1 218 x 518 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 180 mm, double-walled, without rear ventilation DW18136-1 De 230 mm, 595 x 380 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 180 mm, double-walled, with rear ventilation DW18136H-1 248 x 548 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 200 mm, double-walled, without rear ventilation DW20136-1 De 250 mm, 595 x 380 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 200 mm, double-walled, with rear ventilation DW20136H-1 268 x 568 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 250 mm, double-walled, without rear ventilation DW25136-1 De 300 mm, 645 x 410 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 250 mm, double-walled, with rear ventilation DW25136H-1 318 x 618 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 300 mm, double-walled, without rear ventilation DW30136-1 De 350 mm, 695 x 450 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 300 mm, double-walled, with rear ventilation DW30136H-1 368 x 668 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 350 mm, double-walled, without rear ventilation DW35136-1 De 400 mm, 745 x 480 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 350 mm, double-walled, with rear ventilation DW35136H-1 418 x 718 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 400 mm, double-walled, without rear ventilation DW40136-1 De 450 mm, 795 x 510 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 400 mm, double-walled, with rear ventilation DW40136H-1 468 x 768 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 450 mm, double-walled, without rear ventilation DW45136-1 De 500 mm, 845 x 540 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 450 mm, double-walled, with rear ventilation DW45136H-1 518 x 818 mm cover plate 30°/45° with back ventilation, p. 193
31° bis 45° Ø 500 mm, double-walled, without rear ventilation DW50136-1 De 550 mm, 895 x 570 mm cover plate 31°/45°, two-part, p. 193
31° bis 45° Ø 500 mm, double-walled, with rear ventilation DW50136H-1 568 x 868 mm cover plate 30°/45° with back ventilation, p. 193

Features
  • Accessory for the double-walled pipe system DW (catalogue: stainless steel exhaust system according to EN 1856-1, inner pipe material 1.4404, outer pipe material 1.4301).
  • The size depends on the inner diameter of the pipe.
  • Dimension designations De, A and B as in the catalogue drawing.

Data sheets and manuals (PDF)
