InoxAir GmbH  |  SKU: DW08107-1

InoxAir Intermediate Bracket for Double-Walled or Single-Walled Stainless Steel Pipe

13049 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 working days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Intermediate Bracket for Double-Walled or Single-Walled Stainless Steel Pipe: intermediate bracket for the InoxAir stainless steel pipe systems: type 107 for the double-walled DW pipe system, type 854 open at the bottom for the single-walled EW pipe system. Options under version: intermediate bracket DW/EW (type 107) and intermediate bracket open at the bottom (type 854).

The versions in detail

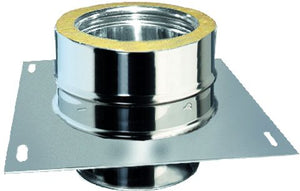

intermediate bracket DW/EW (type 107): InoxAir intermediate bracket DW/EW is an intermediate adapter DW/EW for InoxAir's double-walled stainless steel pipe system DW (type 107).

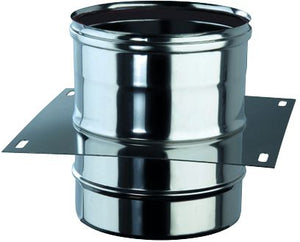

intermediate bracket open at the bottom (type 854): InoxAir intermediate console, open bottom is an intermediate bracket with an open bottom for InoxAir's single-walled stainless steel pipe system EW (type 854).

Technical data
Height according to the catalogue 190 mm
Standard according to the catalogue stainless steel exhaust system according to EN 1856-1
Marking dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)
Source InoxAir catalogue Stainless steel pipes, pp. 187 and 191; inoxair.de; InoxAir catalogue Stainless steel pipes, pp. 199 and 204

Data per version:

Feature intermediate bracket DW/EW (type 107) intermediate bracket open at the bottom (type 854)
Design intermediate adapter DW/EW, type 107 bracket with an open bottom, type 854
Diameters Ø 80, 100, 130, 150, 180, 200, 250, 300, 350, 400, 450 and 500 mm Ø 100, 110, 120, 130, 140, 150, 160, 180, 200, 250, 300, 350, 400, 450 and 500 mm
Pipe system double-walled stainless steel pipe system DW (PROFIline) single-walled stainless steel pipe system EW (PROFIline)
Material inner pipe 1.4404, outer pipe 1.4301 1.4404

Note on variants

Select version and size. Not every combination is available.

Version Size Item number
intermediate bracket DW/EW (type 107) Ø 100 mm, double-walled DW10107-1
intermediate bracket DW/EW (type 107) Ø 130 mm, double-walled DW13107-1
intermediate bracket DW/EW (type 107) Ø 150 mm, double-walled DW15107-1
intermediate bracket DW/EW (type 107) Ø 180 mm, double-walled DW18107-1
intermediate bracket DW/EW (type 107) Ø 200 mm, double-walled DW20107-1
intermediate bracket DW/EW (type 107) Ø 250 mm, double-walled DW25107-1
intermediate bracket DW/EW (type 107) Ø 300 mm, double-walled DW30107-1
intermediate bracket DW/EW (type 107) Ø 350 mm, double-walled DW35107-1
intermediate bracket DW/EW (type 107) Ø 400 mm, double-walled DW40107-1
intermediate bracket DW/EW (type 107) Ø 450 mm, double-walled DW45107-1
intermediate bracket DW/EW (type 107) Ø 500 mm, double-walled DW50107-1
intermediate bracket DW/EW (type 107) Ø 80 mm, double-walled DW08107-1
intermediate bracket open at the bottom (type 854) Ø 100 mm, single-walled EW10854-1
intermediate bracket open at the bottom (type 854) Ø 130 mm, single-walled EW13854-1
intermediate bracket open at the bottom (type 854) Ø 150 mm, single-walled EW15854-1
intermediate bracket open at the bottom (type 854) Ø 180 mm, single-walled EW18854-1
intermediate bracket open at the bottom (type 854) Ø 200 mm, single-walled EW20854-1
intermediate bracket open at the bottom (type 854) Ø 250 mm, single-walled EW25854-1
intermediate bracket open at the bottom (type 854) Ø 300 mm, single-walled EW30854-1
intermediate bracket open at the bottom (type 854) Ø 350 mm, single-walled EW35854-1
intermediate bracket open at the bottom (type 854) Ø 400 mm, single-walled EW40854-1
intermediate bracket open at the bottom (type 854) Ø 450 mm, single-walled EW45854-1
intermediate bracket open at the bottom (type 854) Ø 500 mm, single-walled EW50854-1
intermediate bracket open at the bottom (type 854) Ø 110 mm, single-walled EW11854-1
intermediate bracket open at the bottom (type 854) Ø 120 mm, single-walled EW12854-1
intermediate bracket open at the bottom (type 854) Ø 140 mm, single-walled EW14854-1
intermediate bracket open at the bottom (type 854) Ø 160 mm, single-walled EW16854-1

Features
  • Dimensions per diameter see catalogue page.
  • intermediate bracket DW/EW (type 107): According to the catalogue, the double-walled pipe system allows for the linear expansion of the inner pipe and has continuous thermal insulation without cold bridges; connection via push-fit sockets.
  • According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.
  • intermediate bracket open at the bottom (type 854): According to the catalogue, the single-walled pipe system is connected via push-fit sockets.
