InoxAir GmbH | SKU: EW10099-1

InoxAir Connecting Element for Single-Walled Pipe, Socket or Spigot

Name: InoxAir Connecting Element for Single-Walled Pipe, Socket or Spigot
Brand: InoxAir GmbH
SKU: EW10099-1
Price: 28.99 EUR
Availability: InStock

28^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Connecting Element for Single-Walled Pipe, Socket or Spigot combines the following versions in one product: socket/socket, spigot/spigot. Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

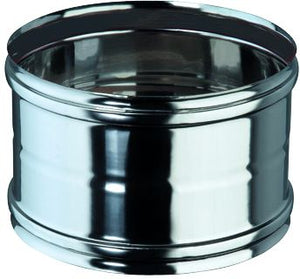

socket/socket: InoxAir Connector, Socket/Socket, Single Wall Pipe is a socket/socket connection piece for InoxAir's single-walled stainless steel pipe system EW (type 099).

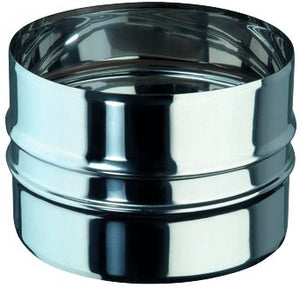

spigot/spigot: InoxAir Connector, Nipple/nipple, Single-wall pipe is a nipple/nipple connection piece for InoxAir's single-walled stainless steel pipe system EW (type 088).

Technical data

Diameters	Ø 100, 110, 120, 130, 140, 150, 160, 180, 200, 250, 300, 350, 400, 450 and 500 mm
Pipe system	single-walled stainless steel pipe system EW (PROFIline)
Material	1.4404
Standard according to the catalogue	stainless steel exhaust system according to EN 1856-1
Marking	dry (D) up to 600 °C, moisture-insensitive (W), negative pressure, positive pressure 200 Pa (P1)
Source	InoxAir catalogue Stainless steel pipes, pp. 199 and 206; inoxair.de; InoxAir catalogue Stainless steel pipes, pp. 199 and 205

Data per version:

Feature	socket/socket	spigot/spigot
Design	connection piece, socket, type 099	connection piece, nipple, type 088

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number
Muffe/Muffe	Ø 100 mm	EW10099-1
Muffe/Muffe	Ø 130 mm	EW13099-1
Muffe/Muffe	Ø 150 mm	EW15099-1
Muffe/Muffe	Ø 180 mm	EW18099-1
Muffe/Muffe	Ø 200 mm	EW20099-1
Muffe/Muffe	Ø 250 mm	EW25099-1
Muffe/Muffe	Ø 300 mm	EW30099-1
Muffe/Muffe	Ø 350 mm	EW35099-1
Muffe/Muffe	Ø 400 mm	EW40099-1
Muffe/Muffe	Ø 450 mm	EW45099-1
Muffe/Muffe	Ø 500 mm	EW50099-1
Muffe/Muffe	Ø 110 mm	EW11099-1
Muffe/Muffe	Ø 120 mm	EW12099-1
Muffe/Muffe	Ø 140 mm	EW14099-1
Muffe/Muffe	Ø 160 mm	EW16099-1
Nippel/Nippel	Ø 100 mm	EW10088-1
Nippel/Nippel	Ø 130 mm	EW13088-1
Nippel/Nippel	Ø 150 mm	EW15088-1
Nippel/Nippel	Ø 180 mm	EW18088-1
Nippel/Nippel	Ø 200 mm	EW20088-1
Nippel/Nippel	Ø 250 mm	EW25088-1
Nippel/Nippel	Ø 300 mm	EW30088-1
Nippel/Nippel	Ø 350 mm	EW35088-1
Nippel/Nippel	Ø 400 mm	EW40088-1
Nippel/Nippel	Ø 450 mm	EW45088-1
Nippel/Nippel	Ø 500 mm	EW50088-1
Nippel/Nippel	Ø 110 mm	EW11088-1
Nippel/Nippel	Ø 120 mm	EW12088-1
Nippel/Nippel	Ø 140 mm	EW14088-1
Nippel/Nippel	Ø 160 mm	EW16088-1

Features

Dimensions per diameter see catalogue page.
According to the catalogue, the single-walled pipe system is connected via push-fit sockets.
According to the catalogue, the pipe systems are suitable for negative pressure, positive pressure and solid fuels; applications according to the catalogue include fume extraction systems, ventilation systems, baking ovens and pizza ovens.

Data sheets and manuals (PDF)

InoxAir Catalogue Stainless Steel Pipes (PDF)
