S&P Deutschland GmbH  |  SKU: 5145880000

S&P VENT Inline Duct Fan

34849 € 46529 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

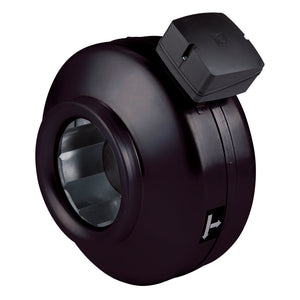

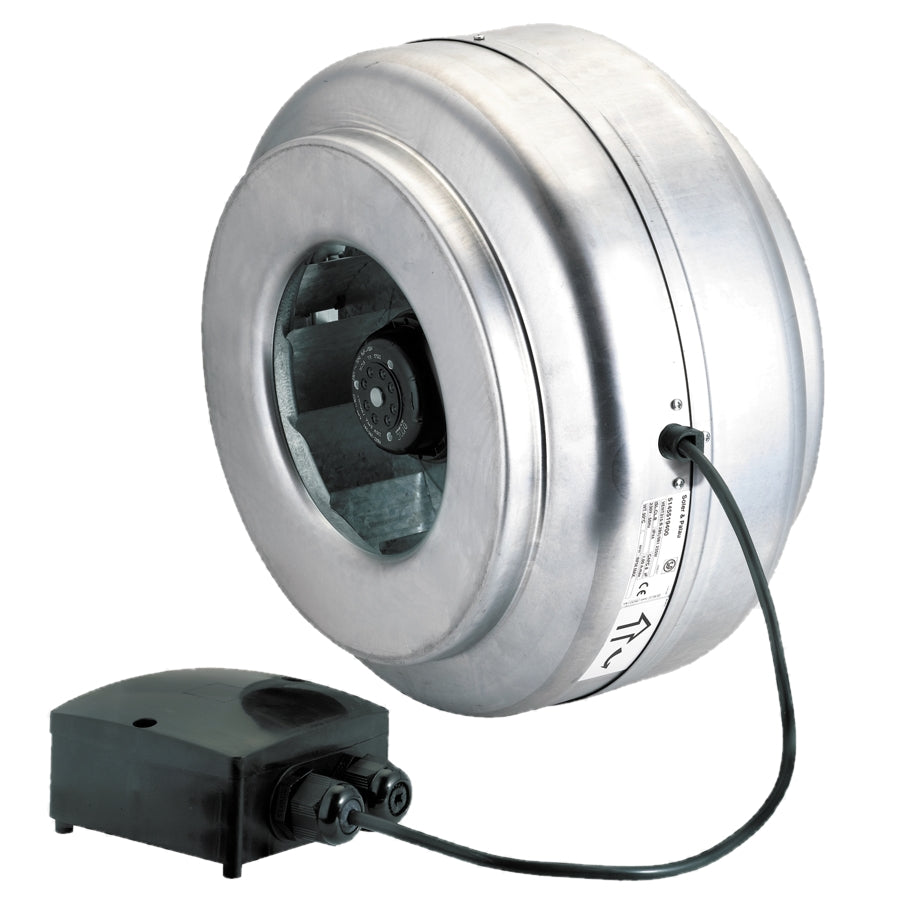

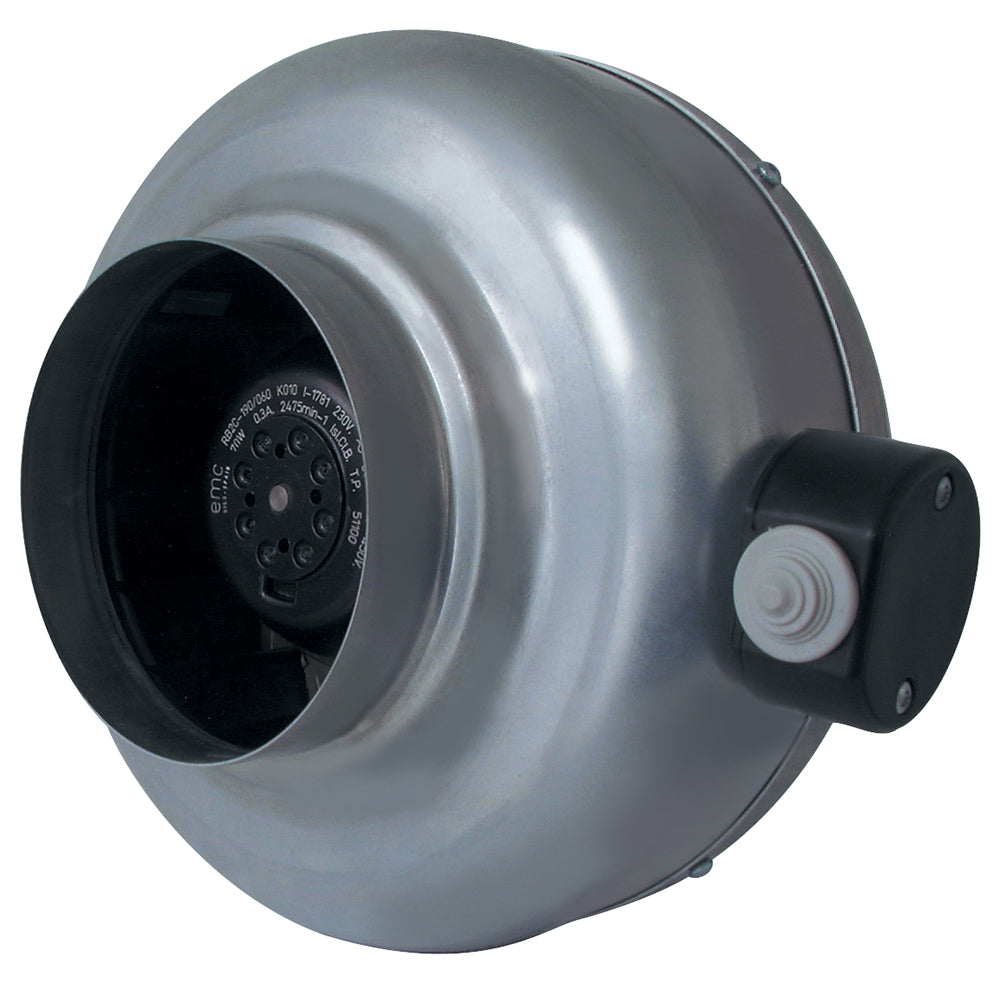

S&P VENT: Inline Duct Fan. Available are the versions VENT ECOWATT, VENT N and VENT NK as well as 9 sizes.

Technical data
Manufacturer S&P
S&P typeItem numberVersionSizeConnectionSpeedMax. power inputMotor currentAir flow (free-blowing)WeightSeriesPower supplyMotor
VENT-100-ECOWATT5145880000VENT ECOWATT100DN 1002810 min⁻¹61 W0.40 A300 m³/h4.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-125-ECOWATT5145880100VENT ECOWATT125DN 1252800 min⁻¹65 W0.50 A380 m³/h4.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-150-ECOWATT5145880200VENT ECOWATT150DN 1502910 min⁻¹115 W0.80 A660 m³/h5.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-160-ECOWATT5145880300VENT ECOWATT160DN 1602860 min⁻¹109 W0.80 A710 m³/h5.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-200-ECOWATT5145880400VENT ECOWATT200DN 2002580 min⁻¹136 W0.90 A920 m³/h5.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-250-ECOWATT5145880500VENT ECOWATT250DN 2502580 min⁻¹137 W0.90 A1,030 m³/h6.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-315-ECOWATT5145880600VENT ECOWATT315DN 3152160 min⁻¹184 W1.20 A1,440 m³/h8.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-355-ECOWATT5145880700VENT ECOWATT355DN 3551410 min⁻¹248 W1.00 A2,620 m³/h17.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-400-ECOWATT5145880800VENT ECOWATT400DN 4001400 min⁻¹376 W1.60 A3,390 m³/h22.0 kgVENT ECOWATT1~ 230 V, 50 Hz (series data: 50/60 Hz)EC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
VENT-355 N5145888600VENT N355DN 3551404 min⁻¹287 W1.2 A2,690 m³/h18.8 kgVENT-N1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, protection class IP54, insulation class F, maintenance-free ball bearings, thermal contacts
VENT-400 N5145888700VENT N400DN 4001380 min⁻¹536 W2.3 A3,890 m³/h22.2 kgVENT-N1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, protection class IP54, insulation class F, maintenance-free ball bearings, thermal contacts
VENT-100 NK5145889700VENT NK100DN 1002600 min⁻¹61 W0.3 A290 m³/h3 kgVENT-NK1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, maintenance-free ball bearings, thermal contacts
VENT-125 NK5145890000VENT NK125DN 1252620 min⁻¹60 W0.3 A390 m³/h3 kgVENT-NK1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, maintenance-free ball bearings, thermal contacts
VENT-160 NK5145889300VENT NK160DN 1602560 min⁻¹96 W0.4 A760 m³/h5 kgVENT-NK1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, maintenance-free ball bearings, thermal contacts
VENT-200 NK5145888500VENT NK200DN 2002720 min⁻¹147 W0.6 A970 m³/h5 kgVENT-NK1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, maintenance-free ball bearings, thermal contacts
VENT-250 NK5145888200VENT NK250DN 2502720 min⁻¹149 W0.6 A1,030 m³/h6 kgVENT-NK1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, maintenance-free ball bearings, thermal contacts
VENT-315 NK5145887900VENT NK315DN 3152790 min⁻¹257 W1.1 A1,370 m³/h8 kgVENT-NK1~ 230 V, 50/60 Hzexternal rotor motor, enclosed, maintenance-free ball bearings, thermal contacts

Features
  • Electrical accessories listed by S&P include electronic speed controllers REB, autotransformers RMB, maintenance switches and temperature sensors TG-K and TG-R.
  • Characteristic curves and acoustic data are given in the S&P data sheet.

Note on variants

The table above lists the S&P type and the item number for each option.
