S&P Deutschland GmbH  |  SKU: 5505003800

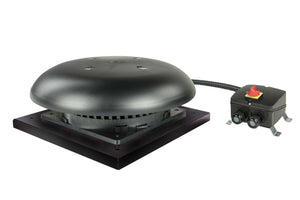

S&P TPSB Roof Fan, Horizontal

66049 € 91392 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P TPSB: Roof Fan, Horizontal. Available are the versions TPSB/2 ECOWATT and TPSB/2 N8 as well as the sizes 190/060, 225/088 and 250/084.

Technical data
Manufacturer S&P
Design centrifugal roof fan, horizontal discharge
S&P typeItem numberVersionSizeSpeedMotor currentAir flow (free-blowing)Sound pressure level suction/discharge side¹Air temperatureWeightSeriesPower supplyMotor
TPSB/2-190/060 ECOWATT5505003800TPSB/2 ECOWATT190/0603270 min⁻¹0.70 A760 m³/h57 / 61 dB(A)-20 to +60 °C3.2 kgTPSB ECOWATT1~ 230 V, 50/60 HzEC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
TPSB/2-225/088 ECOWATT5505004000TPSB/2 ECOWATT225/0882900 min⁻¹1.1 A1,270 m³/h58 / 64 dB(A)-20 to +50 °C6.0 kgTPSB ECOWATT1~ 230 V, 50/60 HzEC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
TPSB/2-250/084 ECOWATT5505004200TPSB/2 ECOWATT250/0842650 min⁻¹1.3 A1,490 m³/h59 / 63 dB(A)-20 to +50 °C6.2 kgTPSB ECOWATT1~ 230 V, 50/60 HzEC motor with internal thermal contacts, protection class IP44, insulation class B, continuous duty S1, sealed ball bearings
TPSB/2-190/060 N85505003700TPSB/2 N8190/0602520 min⁻¹0.3 A600 m³/h50 / 53 dB(A)-40 to +70 °C3.4 kgTPSB1~ 230 V, 50 Hz, capacitor motorAC motor, protection class IP44, insulation class F, continuous duty S1, sealed ball bearings
TPSB/2-225/088 N85505003900TPSB/2 N8225/0882670 min⁻¹0.6 A1,170 m³/h56 / 60 dB(A)-40 to +60 °C6.4 kgTPSB1~ 230 V, 50 Hz, capacitor motorAC motor, protection class IP44, insulation class F, continuous duty S1, sealed ball bearings
TPSB/2-250/084 N85505004100TPSB/2 N8250/0842650 min⁻¹1.0 A1,500 m³/h57 / 61 dB(A)-40 to +60 °C6.4 kgTPSB1~ 230 V, 50 Hz, capacitor motorAC motor, protection class IP44, insulation class F, continuous duty S1, sealed ball bearings

¹ at 10 V control voltage, measured at a distance of 3 m, ducted on the suction side, under free-field conditions. Values at 8, 6 and 4 V are given in the data sheet. Dimensions according to the S&P dimension drawing.

¹ measured at a distance of 3 m, ducted on the suction side, under free-field conditions. Dimensions according to the S&P dimension drawing.

Features
  • Mounting accessories listed by S&P include tilting frame JKR, base silencer JAA, roof base JBS, connection plate JPA, automatic shutters JCA, flexible connection ELV, counter flange FL and adapter to round duct JCC (size 190: -300 or -180/300 in each case, sizes 225 and 250: -435 or -250/435).
  • Characteristic curves and sound power spectra are given in the S&P data sheet.

Note on variants

The table above lists the S&P type and the item number for each option.
