S&P Deutschland GmbH | SKU: 5130273000

S&P PAVZ SH Vibration Damper, for Compression Load, Sizes 60 to 100

Name: S&P PAVZ SH Vibration Damper, for Compression Load, Sizes 60 to 100
Brand: S&P Deutschland GmbH
SKU: 5130273000
Price: 73.99 EUR
Availability: InStock

73^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Model

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

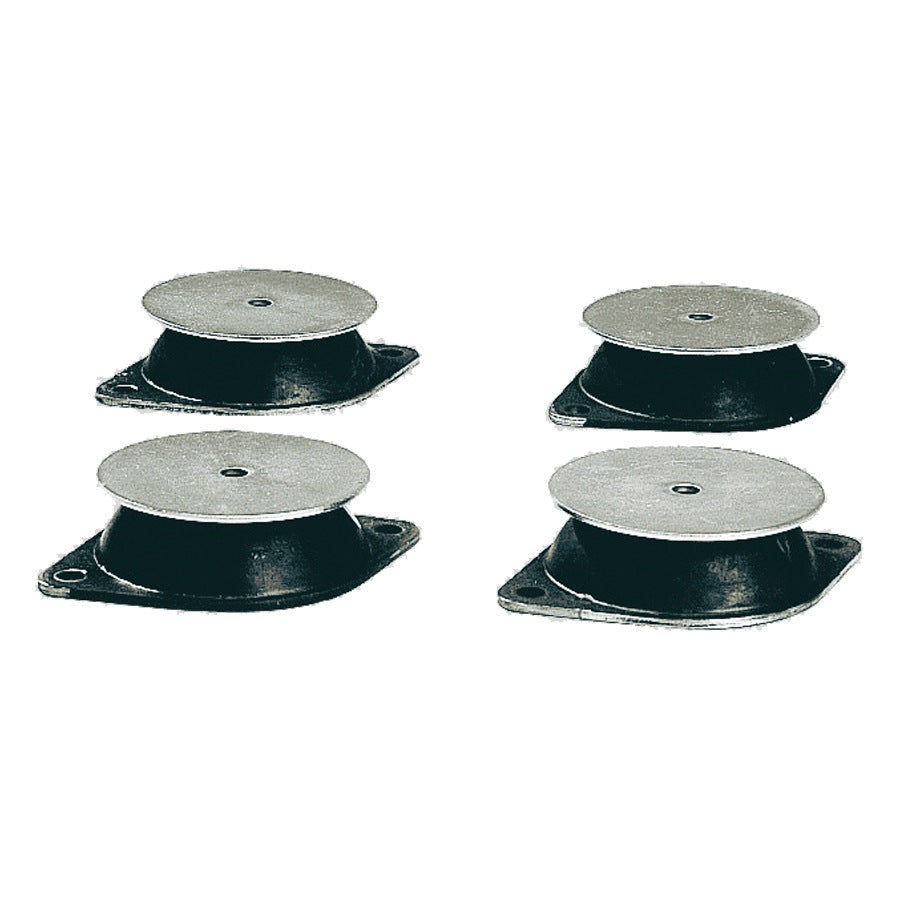

S&P PAVZ SH are vibration dampers for the acoustically decoupled installation of equipment. According to S&P, one packaging unit contains 4 pieces.

S&P lists the PAVZ types, among others, as vibration dampers for the CADB/T-HE PRO-REG ventilation units; according to S&P, 2 sets per unit are required for these units.

Technical data

Manufacturer	S&P
Packaging unit	4 pieces
Application	acoustically decoupled installation of equipment

Model	Article number	A (mm)	B (mm)	C (mm)	D (mm)	Thread E	ØF (mm)	Max. load per damper (kg)	Max. unit weight with 4 feet (kg)
PAVZ-60 SH 75	5130273000	60	90	24	76	M6	6.2	45	180
PAVZ-80 SH 60	5130272900	80	120	27	100	M8	8.2	80	320
PAVZ-80 SH 75	5130866400	80	120	27	100	M8	8.2	130	520
PAVZ-100 SH 75	5130863400	100	148	28	124	M10	10.2	247	988

Features

Assignment to the CADB/T-HE sizes according to S&P: PAVZ 60 SH 75 for 04 and 08, PAVZ 80 SH 60 for 12 to 27, PAVZ 80 SH 75 for 33 and 45, PAVZ 100 SH 75 for 60 and 100.
Dimension letters according to the S&P dimension drawing.

Note on variants

The selection states the S&P type with the article number shown in the table. The permissible load per damper or the unit weight according to the table is decisive for the selection.

Data sheets and manuals (PDF)

Catalogue page mounting accessories fastening (PDF)
