S&P Deutschland GmbH  |  SKU: 5136900500

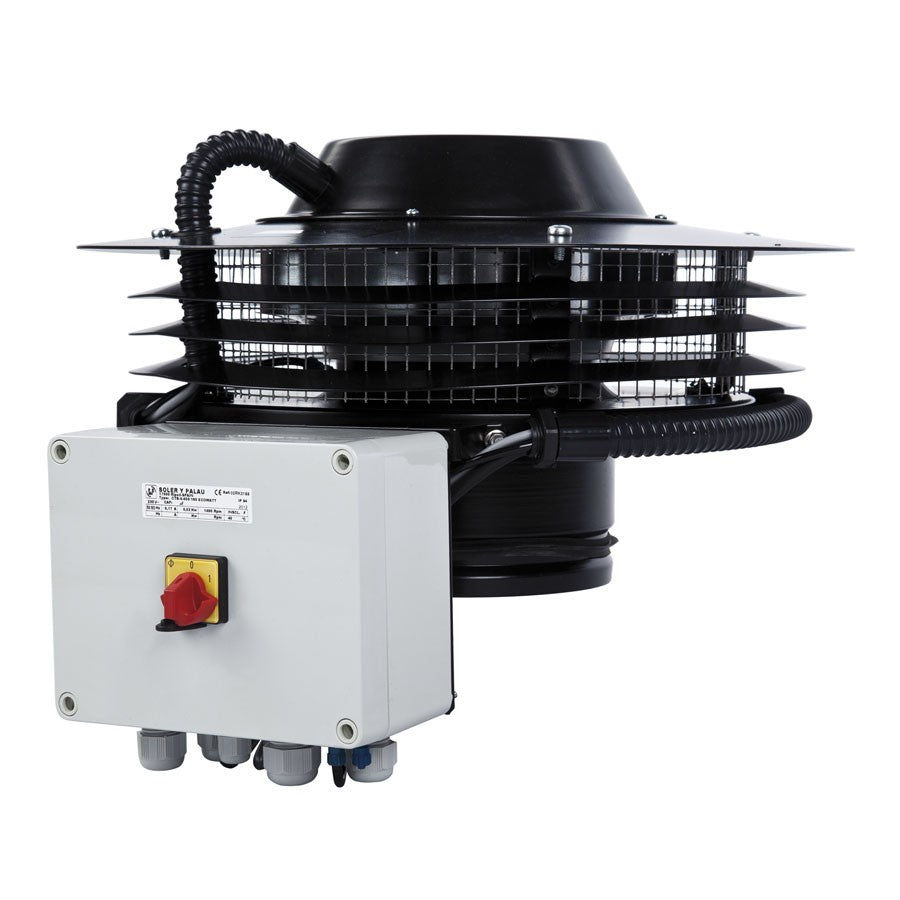

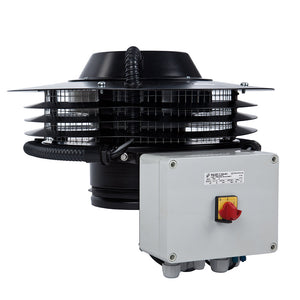

S&P CTB Roof Fan, Horizontal

1.58499 € 1.79049 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P CTB: Roof Fan, Horizontal. Available are the versions CTB/4 ECOWATT PLUS, CTB/4 N1 ECOWATT and CTB/4 N1 ECOWATT PLUS as well as the sizes 400/160, 500/200, 800/250 and 1300/315.

Technical data
Manufacturer S&P
S&P typeItem numberVersionSizeType (S&P)Duct connectionMax. speedMax. power inputMax. motor currentAirflow (free blowing)Sound pressure level inlet/outlet¹Diameter D1 / D2²Weight
CTB/4-400/160 ECOWATT PLUS5136900500CTB/4 ECOWATT PLUS400/160CTB/4-400/160 ECOWATT PLUSDN 1601485 min⁻¹21.5 W0.17 A400 m³/h34 / 40 dB(A)410 / 159 mm6.0 kg
CTB/4-500/200 ECOWATT PLUS5136900400CTB/4 ECOWATT PLUS500/200CTB/4-500/200 ECOWATT PLUSDN 2001490 min⁻¹26.5 W0.19 A560 m³/h36 / 41 dB(A)410 / 199 mm7.0 kg
CTB/4-800/250 ECOWATT PLUS5136900300CTB/4 ECOWATT PLUS800/250CTB/4-800/250 ECOWATT PLUSDN 2501430 min⁻¹45.0 W0.32 A840 m³/h38 / 44 dB(A)470 / 249 mm8.5 kg
CTB/4-1300/315 ECOWATT PLUS5136900200CTB/4 ECOWATT PLUS1300/315CTB/4-1300/315 ECOWATT PLUSDN 3151420 min⁻¹91.2 W0.62 A1,490 m³/h41 / 48 dB(A)470 / 314 mm10.0 kg
CTB/4-1300/315 N1 ECOWATT5136030100CTB/4 N1 ECOWATT1300/315CTB/4-1300/315 N1 ECOWATT PLUSDN 3151420 min⁻¹91.2 W0.62 A1,490 m³/h41 / 48 dB(A)470 / 314 mm10.0 kg
CTB/4-400/160 N1 ECOWATT PLUS5136030500CTB/4 N1 ECOWATT PLUS400/160CTB/4-400/160 N1 ECOWATT PLUSDN 1601485 min⁻¹21.5 W0.17 A400 m³/h34 / 40 dB(A)410 / 159 mm6.0 kg
CTB/4-500/200 N1 ECOWATT PLUS5136030400CTB/4 N1 ECOWATT PLUS500/200CTB/4-500/200 N1 ECOWATT PLUSDN 2001490 min⁻¹26.5 W0.19 A560 m³/h36 / 41 dB(A)410 / 199 mm7.0 kg
CTB/4-800/250 N1 ECOWATT PLUS5136030200CTB/4 N1 ECOWATT PLUS800/250CTB/4-800/250 N1 ECOWATT PLUSDN 2501430 min⁻¹45.0 W0.32 A840 m³/h38 / 44 dB(A)470 / 249 mm8.5 kg

Features
  • Values for 8, 6 and 4 V control voltage, performance curves and sound power spectra are given in the S&P data sheet.
  • Mounting accessories listed by S&P include the MAA-CTB silencer, FL counter flange, MTS cross-talk silencer and the JPA-CTB base plate with connection spigot, each matched to the nominal size.

Note on variants

The table above lists the S&P type and the item number for each option.

Data sheets and manuals (PDF)

Note on reviews: Any visitor can submit a review using the form; a purchase is not required. Anyone who submits a review receives an email to confirm their email address. Reviews marked “Verified” come from customers who bought the product from us. We do not check other reviews for a purchase.
