S&P Deutschland GmbH | SKU: 5136030700

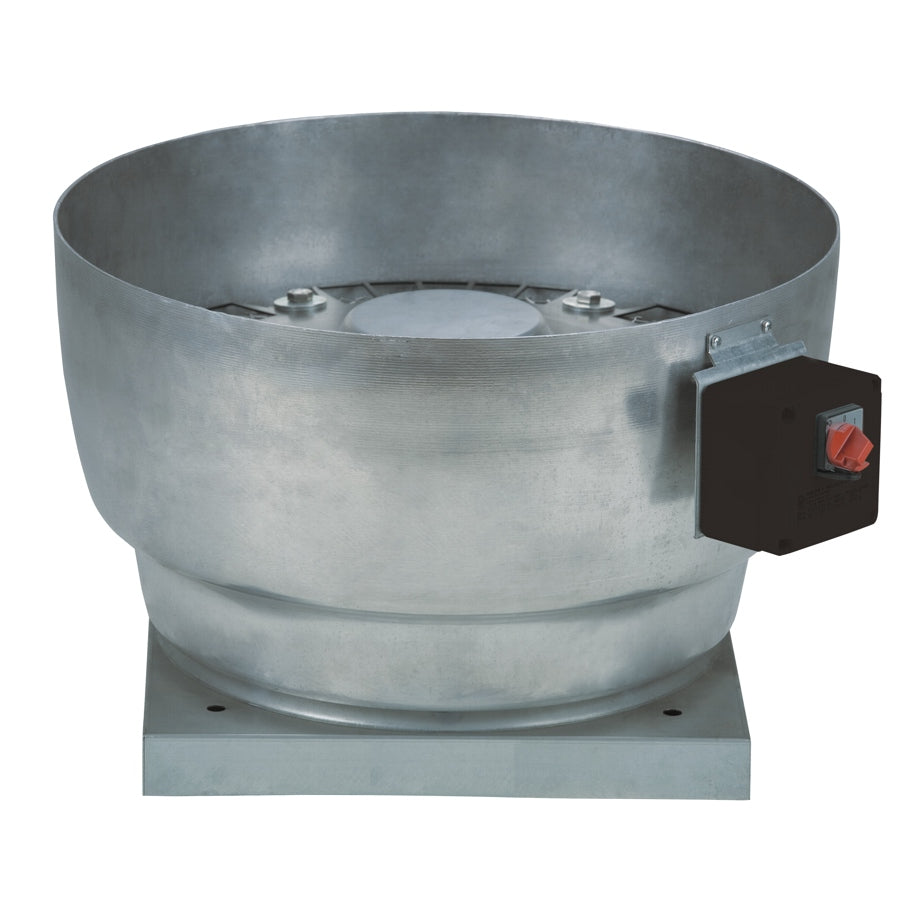

S&P CRHB/CRHT/CRVB/CRVT Roof Fan

Name: S&P CRHB/CRHT/CRVB/CRVT Roof Fan
Brand: S&P Deutschland GmbH
SKU: 5136030700
Availability: InStock

1.712^{99 €} ~~2.427^{60 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P CRHB/CRHT/CRVB/CRVT: Roof Fan. Available are 24 versions as well as 10 sizes.

Technical data

Manufacturer	S&P
Base plate	galvanised sheet steel with integrated inlet nozzle

S&P type	Item number	Version	Size	Type (S&P)	Airflow (free blowing)	Sound pressure level inlet/outlet¹	Air temperature	Weight	Series	Design	Hood	Impeller
CRHB-280 N1 ECOWATT PLUS N8	5136030700	CRHB N1 ECOWATT PLUS N8	280	CRHB-280 N1 ECOWATT PLUS N8	2,026 m³/h	44 / 51 dB(A)	n/a	16 kg	CRHB/CRHT-N1 ECOWATT PLUS N8	centrifugal roof fan, horizontal discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRHB-315 N1 ECOWATT PLUS N8	5136030900	CRHB N1 ECOWATT PLUS N8	315	CRHB-315 N1 ECOWATT PLUS N8	2,812 m³/h	49 / 52 dB(A)	n/a	18 kg	CRHB/CRHT-N1 ECOWATT PLUS N8	centrifugal roof fan, horizontal discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRHB-355 N1 ECOWATT PLUS N8	5136031100	CRHB N1 ECOWATT PLUS N8	355	CRHB-355 N1 ECOWATT PLUS N8	3,456 m³/h	46 / 54 dB(A)	n/a	22 kg	CRHB/CRHT-N1 ECOWATT PLUS N8	centrifugal roof fan, horizontal discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRHB-250 N ECOWATT	5136004100	CRHB N ECOWATT	250	CRHB-250 N ECOWATT	1,380 m³/h	47 / 53 dB(A)	-20 °C to +40 °C	10 kg	CRHB-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB-280 N ECOWATT	5136916100	CRHB N ECOWATT	280	CRHB-280 N ECOWATT	2,026 m³/h	44 / 51 dB(A)	-20 °C to +40 °C	16 kg	CRHB-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB-315 N ECOWATT	5136916200	CRHB N ECOWATT	315	CRHB-315 N ECOWATT	2,812 m³/h	49 / 52 dB(A)	-20 °C to +40 °C	18 kg	CRHB-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB-355 N ECOWATT	5136916300	CRHB N ECOWATT	355	CRHB-355 N ECOWATT	3,456 m³/h	46 / 54 dB(A)	-20 °C to +40 °C	22 kg	CRHB-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB-280 N ECOWATT PLUS	5136912300	CRHB N ECOWATT PLUS	280	CRHB-280 N ECOWATT PLUS	2,026 m³/h	44 / 51 dB(A)	-20 °C to +40 °C	16 kg	CRHB-N ECOWATT PLUS	centrifugal roof fan, horizontal discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRHB-315 N ECOWATT PLUS	5136913300	CRHB N ECOWATT PLUS	315	CRHB-315 N ECOWATT PLUS	2,812 m³/h	49 / 52 dB(A)	-20 °C to +40 °C	18 kg	CRHB-N ECOWATT PLUS	centrifugal roof fan, horizontal discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRHB-355 N ECOWATT PLUS	5136914300	CRHB N ECOWATT PLUS	355	CRHB-355 N ECOWATT PLUS	3,456 m³/h	46 / 54 dB(A)	-20 °C to +40 °C	22 kg	CRHB-N ECOWATT PLUS	centrifugal roof fan, horizontal discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRHB-400 N ECOWATT PLUS N8	5136007200	CRHB N ECOWATT PLUS N8	400	CRHB-400 N ECOWATT PLUS N8	5,730 m³/h	55 / 62 dB(A)	-20 °C to +40 °C	32 kg	CRHB-N ECOWATT PLUS	centrifugal roof fan, horizontal discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRHB-450 N ECOWATT PLUS N8	5136007600	CRHB N ECOWATT PLUS N8	450	CRHB-450 N ECOWATT PLUS N8	6,280 m³/h	53 / 60 dB(A)	-20 °C to +40 °C	35 kg	CRHB-N ECOWATT PLUS	centrifugal roof fan, horizontal discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRHB-400 N N8 ECOWATT	5136007000	CRHB N N8 ECOWATT	400	CRHB-400 N N8 ECOWATT	5,730 m³/h	55 / 62 dB(A)	-20 °C to +40 °C	32 kg	CRHB-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB-450 N N8 ECOWATT	5136007500	CRHB N N8 ECOWATT	450	CRHB-450 N N8 ECOWATT	6,280 m³/h	53 / 60 dB(A)	-20 °C to +40 °C	35 kg	CRHB-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/2-225 N N8	5136911300	CRHB/2 N N8	225	CRHB/2-225 N N8	1,160 m³/h	44 / 50 dB(A)	-40 to +70 °C	11.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/2-250 N N8	5136911700	CRHB/2 N N8	250	CRHB/2-250 N N8	1,390 m³/h	52 / 58 dB(A)	-40 to +70 °C	11.5 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-225 N N8	5136911500	CRHB/4 N N8	225	CRHB/4-225 N N8	600 m³/h	36 / 42 dB(A)	-40 to +70 °C	10.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-250 N N8	5136911900	CRHB/4 N N8	250	CRHB/4-250 N N8	740 m³/h	38 / 44 dB(A)	-40 to +70 °C	10.5 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-280 N N8	5136912100	CRHB/4 N N8	280	CRHB/4-280 N N8	1,530 m³/h	41 / 47 dB(A)	-40 to +70 °C	17.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-315 N N8	5136912500	CRHB/4 N N8	315	CRHB/4-315 N N8	2,110 m³/h	45 / 52 dB(A)	-40 to +70 °C	25.5 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-355 N N8	5136913500	CRHB/4 N N8	355	CRHB/4-355 N N8	3,090 m³/h	50 / 58 dB(A)	-40 to +70 °C	27.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-400 N N8	5136916800	CRHB/4 N N8	400	CRHB/4-400 N N8	4,540 m³/h	53 / 60 dB(A)	-40 to +55 °C	30.5 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-450 N N8	5136917600	CRHB/4 N N8	450	CRHB/4-450 N N8	6,310 m³/h	60 / 68 dB(A)	-40 to +70 °C	42.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/4-500 N N8	5136979000	CRHB/4 N N8	500	CRHB/4-500 N N8	8,770 m³/h	63 / 71 dB(A)	-40 to +40 °C	60.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/6-315 N N8	5136912700	CRHB/6 N N8	315	CRHB/6-315 N N8	1,420 m³/h	36 / 44 dB(A)	-40 to +70 °C	24.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/6-355 N N8	5136913700	CRHB/6 N N8	355	CRHB/6-355 N N8	2,130 m³/h	38 / 45 dB(A)	-40 to +70 °C	24.5 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/6-400 N N8	5136917000	CRHB/6 N N8	400	CRHB/6-400 N N8	2,950 m³/h	45 / 51 dB(A)	-40 to +70 °C	30.5 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/6-450 N N8	5136917800	CRHB/6 N N8	450	CRHB/6-450 N N8	4,220 m³/h	49 / 56 dB(A)	-40 to +60 °C	32.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/6-500 N N8	5136979200	CRHB/6 N N8	500	CRHB/6-500 N N8	5,930 m³/h	51 / 58 dB(A)	-40 to +70 °C	47.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/6-560 N N8	5136979800	CRHB/6 N N8	560	CRHB/6-560 N N8	9,350 m³/h	56 / 64 dB(A)	-40 to +70 °C	60.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHB/6-630 N N8	5136980400	CRHB/6 N N8	630	CRHB/6-630 N N8	13,240 m³/h	59 / 67 dB(A)	-40 to +50 °C	68.0 kg	CRHB-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT-500 N1 ECOWATT PLUS N8	5136018700	CRHT N1 ECOWATT PLUS N8	500	CRHT-500 N1 ECOWATT PLUS N8	7,970 m³/h	53 / 60 dB(A)	n/a	40 kg	CRHB/CRHT-N1 ECOWATT PLUS N8	centrifugal roof fan, horizontal discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRHT-630 N1 ECOWATT PLUS N8	5136019200	CRHT N1 ECOWATT PLUS N8	630	CRHT-630 N1 ECOWATT PLUS N8	14,380 m³/h	56 / 65 dB(A)	n/a	71 kg	CRHB/CRHT-N1 ECOWATT PLUS N8	centrifugal roof fan, horizontal discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRHT-450 N N8 ECOWATT	5136011700	CRHT N N8 ECOWATT	450	CRHT-450 N N8 ECOWATT	7,100 m³/h	56 / 65 dB(A)	-20 °C to +40 °C	35 kg	CRHT-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT-500 N N8 ECOWATT	5136007700	CRHT N N8 ECOWATT	500	CRHT-500 N N8 ECOWATT	7,970 m³/h	53 / 60 dB(A)	-20 °C to +40 °C	40 kg	CRHT-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT-560 N N8 ECOWATT	5136008100	CRHT N N8 ECOWATT	560	CRHT-560 N N8 ECOWATT	13,070 m³/h	59 / 68 dB(A)	-20 °C to +40 °C	69 kg	CRHT-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT-630 N N8 ECOWATT	5136008500	CRHT N N8 ECOWATT	630	CRHT-630 N N8 ECOWATT	14,380 m³/h	56 / 65 dB(A)	-20 °C to +40 °C	70 kg	CRHT-N ECOWATT	centrifugal roof fan, horizontal discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/4-315 N N8	5136912900	CRHT/4 N N8	315	CRHT/4-315 N N8	2,200 m³/h	44 / 51 dB(A)	-40 to +70 °C	24.5 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/4-355 N N8	5136913900	CRHT/4 N N8	355	CRHT/4-355 N N8	3,190 m³/h	44 / 51 dB(A)	-40 to +65 °C	26.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/4-400 N N8	5136917200	CRHT/4 N N8	400	CRHT/4-400 N N8	4,630 m³/h	54 / 60 dB(A)	-40 to +70 °C	29.5 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/4-450 N N8	5136918000	CRHT/4 N N8	450	CRHT/4-450 N N8	6,180 m³/h	58 / 66 dB(A)	-40 to +60 °C	40.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/4-500 N N8	5136979400	CRHT/4 N N8	500	CRHT/4-500 N N8	8,680 m³/h	64 / 71 dB(A)	-40 to +70 °C	53.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/4-560 N N8	5136980000	CRHT/4 N N8	560	CRHT/4-560 N N8	13,220 m³/h	66 / 75 dB(A)	-40 to +60 °C	64.5 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/6-315 N N8	5136913100	CRHT/6 N N8	315	CRHT/6-315 N N8	1,450 m³/h	35 / 43 dB(A)	-40 to +70 °C	24.5 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/6-355 N N8	5136914100	CRHT/6 N N8	355	CRHT/6-355 N N8	2,140 m³/h	38 / 49 dB(A)	-40 to +70 °C	25.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/6-400 N N8	5136917400	CRHT/6 N N8	400	CRHT/6-400 N N8	2,940 m³/h	45 / 51 dB(A)	-40 to +70 °C	29.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/6-450 N N8	5136918200	CRHT/6 N N8	450	CRHT/6-450 N N8	4,080 m³/h	47 / 53 dB(A)	-40 to +70 °C	29.5 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/6-500 N N8	5136979600	CRHT/6 N N8	500	CRHT/6-500 N N8	6,030 m³/h	49 / 57 dB(A)	-40 to +70 °C	40.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/6-560 N N8	5136980200	CRHT/6 N N8	560	CRHT/6-560 N N8	9,420 m³/h	55 / 64 dB(A)	-40 to +70 °C	58.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRHT/6-630 N N8	5136980600	CRHT/6 N N8	630	CRHT/6-630 N N8	13,400 m³/h	58 / 66 dB(A)	-40 to +55 °C	65.0 kg	CRHT-N	centrifugal roof fan, horizontal discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB-250 N1 ECOWATT PLUS N8	5136030600	CRVB N1 ECOWATT PLUS N8	250	CRVB-250 N1 ECOWATT PLUS N8	1,320 m³/h	47 / 51 dB(A)	n/a	11,5 kg	CRVB/CRVT-N1 ECOWATT PLUS N8	centrifugal roof fan, vertical discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRVB-280 N1 ECOWATT PLUS N8	5136030800	CRVB N1 ECOWATT PLUS N8	280	CRVB-280 N1 ECOWATT PLUS N8	1,823 m³/h	46 / 55 dB(A)	n/a	18 kg	CRVB/CRVT-N1 ECOWATT PLUS N8	centrifugal roof fan, vertical discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRVB-315 N1 ECOWATT PLUS N8	5136031000	CRVB N1 ECOWATT PLUS N8	315	CRVB-315 N1 ECOWATT PLUS N8	2,703 m³/h	51 / 58 dB(A)	n/a	20 kg	CRVB/CRVT-N1 ECOWATT PLUS N8	centrifugal roof fan, vertical discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRVB-355 N1 ECOWATT PLUS N8	5136031200	CRVB N1 ECOWATT PLUS N8	355	CRVB-355 N1 ECOWATT PLUS N8	3,388 m³/h	43 / 49 dB(A)	n/a	25 kg	CRVB/CRVT-N1 ECOWATT PLUS N8	centrifugal roof fan, vertical discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRVB-250 N ECOWATT	5136004000	CRVB N ECOWATT	250	CRVB-250 N ECOWATT	1,320 m³/h	47 / 51 dB(A)	-20 °C to +40 °C	11 kg	CRVB-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB-280 N ECOWATT	5136915800	CRVB N ECOWATT	280	CRVB-280 N ECOWATT	1,823 m³/h	46 / 55 dB(A)	-20 °C to +40 °C	18 kg	CRVB-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB-315 N ECOWATT	5136915900	CRVB N ECOWATT	315	CRVB-315 N ECOWATT	2,703 m³/h	51 / 58 dB(A)	-20 °C to +40 °C	20 kg	CRVB-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB-355 N ECOWATT	5136916000	CRVB N ECOWATT	355	CRVB-355 N ECOWATT	3,388 m³/h	43 / 49 dB(A)	-20 °C to +40 °C	25 kg	CRVB-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB-250 N ECOWATT PLUS	5136002400	CRVB N ECOWATT PLUS	250	CRVB-250 N ECOWATT PLUS	1,320 m³/h	47 / 51 dB(A)	-20 °C to +40 °C	11.5 kg	CRVB-N ECOWATT PLUS	centrifugal roof fan, vertical discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRVB-280 N ECOWATT PLUS	5136912400	CRVB N ECOWATT PLUS	280	CRVB-280 N ECOWATT PLUS	1,823 m³/h	46 / 55 dB(A)	-20 °C to +40 °C	18 kg	CRVB-N ECOWATT PLUS	centrifugal roof fan, vertical discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRVB-315 N ECOWATT PLUS	5136913400	CRVB N ECOWATT PLUS	315	CRVB-315 N ECOWATT PLUS	2,703 m³/h	51 / 58 dB(A)	-20 °C to +40 °C	20 kg	CRVB-N ECOWATT PLUS	centrifugal roof fan, vertical discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRVB-355 N ECOWATT PLUS	5136914400	CRVB N ECOWATT PLUS	355	CRVB-355 N ECOWATT PLUS	3,388 m³/h	43 / 49 dB(A)	-20 °C to +40 °C	25 kg	CRVB-N ECOWATT PLUS	centrifugal roof fan, vertical discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRVB-400 N ECOWATT PLUS N8	5136006900	CRVB N ECOWATT PLUS N8	400	CRVB-400 N ECOWATT PLUS N8	5,560 m³/h	55 / 58 dB(A)	-20 °C to +40 °C	34 kg	CRVB-N ECOWATT PLUS	centrifugal roof fan, vertical discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRVB-450 N ECOWATT PLUS N8	5136007400	CRVB N ECOWATT PLUS N8	450	CRVB-450 N ECOWATT PLUS N8	6,050 m³/h	47 / 59 dB(A)	-20 °C to +40 °C	37 kg	CRVB-N ECOWATT PLUS	centrifugal roof fan, vertical discharge, with integrated control electronics	aluminium, with bird guard	aluminium centrifugal impeller, free running, backward curved, balanced to ISO 1940
CRVB-400 N N8 ECOWATT	5136006800	CRVB N N8 ECOWATT	400	CRVB-400 N N8 ECOWATT	5,560 m³/h	55 / 58 dB(A)	-20 °C to +40 °C	34 kg	CRVB-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB-450 N N8 ECOWATT	5136007300	CRVB N N8 ECOWATT	450	CRVB-450 N N8 ECOWATT	6,050 m³/h	47 / 59 dB(A)	-20 °C to +40 °C	37 kg	CRVB-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/2-225 N N8	5136911400	CRVB/2 N N8	225	CRVB/2-225 N N8	1,080 m³/h	49 / 54 dB(A)	-40 to +70 °C	11.0 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/2-250 N N8	5136911800	CRVB/2 N N8	250	CRVB/2-250 N N8	1,320 m³/h	52 / 58 dB(A)	-40 to +70 °C	11.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-225 N N8	5136911600	CRVB/4 N N8	225	CRVB/4-225 N N8	570 m³/h	36 / 40 dB(A)	-40 to +70 °C	10.0 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-250 N N8	5136912000	CRVB/4 N N8	250	CRVB/4-250 N N8	690 m³/h	38 / 44 dB(A)	-40 to +70 °C	10.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-280 N N8	5136912200	CRVB/4 N N8	280	CRVB/4-280 N N8	1,350 m³/h	43 / 48 dB(A)	-40 to +70 °C	17.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-315 N N8	5136912600	CRVB/4 N N8	315	CRVB/4-315 N N8	2,050 m³/h	48 / 53 dB(A)	-40 to +70 °C	27.0 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-355 N N8	5136913600	CRVB/4 N N8	355	CRVB/4-355 N N8	2,960 m³/h	51 / 57 dB(A)	-40 to +70 °C	29.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-400 N N8	5136916900	CRVB/4 N N8	400	CRVB/4-400 N N8	4,530 m³/h	55 / 59 dB(A)	-40 to +55 °C	29.0 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-450 N N8	5136917700	CRVB/4 N N8	450	CRVB/4-450 N N8	6,280 m³/h	61 / 65 dB(A)	-40 to +70 °C	40.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/4-500 N N8	5136979100	CRVB/4 N N8	500	CRVB/4-500 N N8	8,550 m³/h	63 / 67 dB(A)	-40 to +40 °C	61.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/6-315 N N8	5136912800	CRVB/6 N N8	315	CRVB/6-315 N N8	1,380 m³/h	36 / 43 dB(A)	-40 to +50 °C	25.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/6-355 N N8	5136913800	CRVB/6 N N8	355	CRVB/6-355 N N8	2,030 m³/h	39 / 45 dB(A)	-40 to +50 °C	26.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/6-400 N N8	5136917100	CRVB/6 N N8	400	CRVB/6-400 N N8	2,900 m³/h	46 / 48 dB(A)	-40 to +70 °C	27.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/6-450 N N8	5136917900	CRVB/6 N N8	450	CRVB/6-450 N N8	4,070 m³/h	49 / 53 dB(A)	-40 to +60 °C	30.0 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/6-500 N N8	5136979300	CRVB/6 N N8	500	CRVB/6-500 N N8	5,750 m³/h	51 / 56 dB(A)	-40 to +70 °C	48.5 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/6-560 N N8	5136979900	CRVB/6 N N8	560	CRVB/6-560 N N8	8,920 m³/h	56 / 61 dB(A)	-40 to +70 °C	65.0 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVB/6-630 N N8	5136980500	CRVB/6 N N8	630	CRVB/6-630 N N8	12,410 m³/h	58 / 65 dB(A)	-40 to +50 °C	73.0 kg	CRVB-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT-500 N1 ECOWATT PLUS N8	5136018600	CRVT N1 ECOWATT PLUS N8	500	CRVT-500 N1 ECOWATT PLUS N8	7,660 m³/h	52 / 58 dB(A)	n/a	44 kg	CRVB/CRVT-N1 ECOWATT PLUS N8	centrifugal roof fan, vertical discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRVT-560 N1 ECOWATT PLUS N8	5136019000	CRVT N1 ECOWATT PLUS N8	560	CRVT-560 N1 ECOWATT PLUS N8	12,340 m³/h	58 / 66 dB(A)	n/a	73 kg	CRVB/CRVT-N1 ECOWATT PLUS N8	centrifugal roof fan, vertical discharge, with integrated control	aluminium, with bird guard	centrifugal impeller, backward curved
CRVT-450 N N8 ECOWATT	5136011500	CRVT N N8 ECOWATT	450	CRVT-450 N N8 ECOWATT	6,690 m³/h	56 / 61 dB(A)	-20 °C to +40 °C	37 kg	CRVT-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT-500 N N8 ECOWATT	5136007900	CRVT N N8 ECOWATT	500	CRVT-500 N N8 ECOWATT	7,660 m³/h	52 / 58 dB(A)	-20 °C to +40 °C	44 kg	CRVT-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT-560 N N8 ECOWATT	5136008300	CRVT N N8 ECOWATT	560	CRVT-560 N N8 ECOWATT	12,340 m³/h	58 / 66 dB(A)	-20 °C to +40 °C	69 kg	CRVT-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT-630 N N8 ECOWATT	5136008700	CRVT N N8 ECOWATT	630	CRVT-630 N N8 ECOWATT	13,320 m³/h	57 / 62 dB(A)	-20 °C to +40 °C	70 kg	CRVT-N ECOWATT	centrifugal roof fan, vertical discharge	with bird guard	centrifugal impeller, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/4-315 N N8	5136913000	CRVT/4 N N8	315	CRVT/4-315 N N8	2,130 m³/h	46 / 51 dB(A)	-40 to +70 °C	26.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/4-355 N N8	5136914000	CRVT/4 N N8	355	CRVT/4-355 N N8	3,030 m³/h	47 / 53 dB(A)	-40 to +65 °C	27.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/4-400 N N8	5136917300	CRVT/4 N N8	400	CRVT/4-400 N N8	4,540 m³/h	54 / 58 dB(A)	-40 to +70 °C	28.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/4-450 N N8	5136918100	CRVT/4 N N8	450	CRVT/4-450 N N8	6,080 m³/h	58 / 63 dB(A)	-40 to +70 °C	38.5 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/4-500 N N8	5136979500	CRVT/4 N N8	500	CRVT/4-500 N N8	8,530 m³/h	64 / 68 dB(A)	-40 to +70 °C	54.5 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/4-560 N N8	5136980100	CRVT/4 N N8	560	CRVT/4-560 N N8	12,710 m³/h	65 / 71 dB(A)	-40 to +60 °C	70.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/6-315 N N8	5136913200	CRVT/6 N N8	315	CRVT/6-315 N N8	1,410 m³/h	36 / 43 dB(A)	-40 to +70 °C	26.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/6-355 N N8	5136914200	CRVT/6 N N8	355	CRVT/6-355 N N8	2,080 m³/h	39 / 54 dB(A)	-40 to +70 °C	27.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/6-400 N N8	5136917500	CRVT/6 N N8	400	CRVT/6-400 N N8	2,830 m³/h	44 / 49 dB(A)	-40 to +70 °C	27.5 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/6-450 N N8	5136918300	CRVT/6 N N8	450	CRVT/6-450 N N8	3,800 m³/h	48 / 51 dB(A)	-40 to +70 °C	28.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/6-500 N N8	5136979700	CRVT/6 N N8	500	CRVT/6-500 N N8	5,940 m³/h	50 / 55 dB(A)	-40 to +70 °C	41.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/6-560 N N8	5136980300	CRVT/6 N N8	560	CRVT/6-560 N N8	9,010 m³/h	57 / 60 dB(A)	-40 to +70 °C	63.5 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940
CRVT/6-630 N N8	5136980700	CRVT/6 N N8	630	CRVT/6-630 N N8	12,550 m³/h	58 / 64 dB(A)	-40 to +55 °C	70.0 kg	CRVT-N	centrifugal roof fan, vertical discharge	aluminium with bird guard	centrifugal impeller made of aluminium, free running, backward curved, statically and dynamically balanced to ISO 1940

¹ Measured at 3 m distance in free field at point 2 of the curve. ² Value in brackets: maximum current with voltage control.

¹ Measured at 3 m distance in free field at point 2 of the curve. Motor current at 50 Hz, unregulated.

Features

Performance curves, sound power spectra and dimensions are given in the S&P data sheet.

Note on variants

The table above lists the S&P type and the item number for each option.
