S&P Deutschland GmbH  |  SKU: 8000600412

S&P Setpoint Adjuster SWG and REB-ECOWATT for EC Motors and Frequency Inverters

15599 € 18802 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P Setpoint Adjuster SWG and REB-ECOWATT for EC Motors and Frequency Inverters: speed potentiometer (setpoint adjuster) for EC motors and frequency inverters for surface mounting, with 0 to 10 V control signal for stepless speed adjustment. Options under type: SWG, IP 55 and REB-ECOWATT, protection class II.

The versions in detail

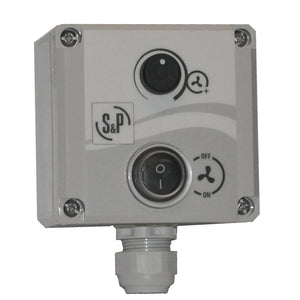

SWG, IP 55: S&P SWG is a speed potentiometer (setpoint controller) from S&P for EC motors and frequency inverters in surface mounting. It outputs a control signal of 0 to 10 V with which the speed is set continuously.

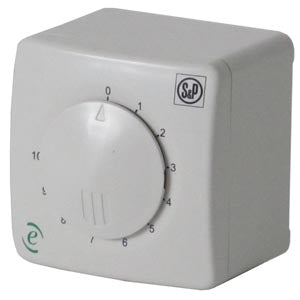

REB-ECOWATT, protection class II: S&P REB-ECOWATT is a speed potentiometer (setpoint controller) from S&P for EC motors and frequency inverters in surface mounting. It outputs a control signal of 0 to 10 V with which the speed is set continuously.

Technical data
Output signal 0 to 10 V
Installation Surface mounting

Data per version:

Feature SWG, IP 55 REB-ECOWATT, protection class II
Degree of protection IP 55 not specified
Dimensions 82 x 80 x 56 mm 80 x 80 x 68 mm
Protection class not specified II

Note on variants

Select the required version under Type.

Type Item number
SWG, IP 55 8000600412
REB-ECOWATT, protection class II 5401304000

Features
  • SWG, IP 55: Potential-free switch, max. 2 A inductive
  • Terminals for 10 V input, 0 to 10 V output and ground (GND)
  • SWG, IP 55: S&P lists the SWG as signal transmitter for the FUW N and FUD N frequency inverters and as speed control accessory for numerous ECOWATT fans and ventilation boxes.
  • REB-ECOWATT, protection class II: Potential-free auxiliary contact
  • REB-ECOWATT, protection class II: S&P lists the REB-ECOWATT as a speed controller for the ECOWATT fans with 0 to 10 V input, for example for manually changing the speed.
