S&P Deutschland GmbH  |  SKU: 5136954700

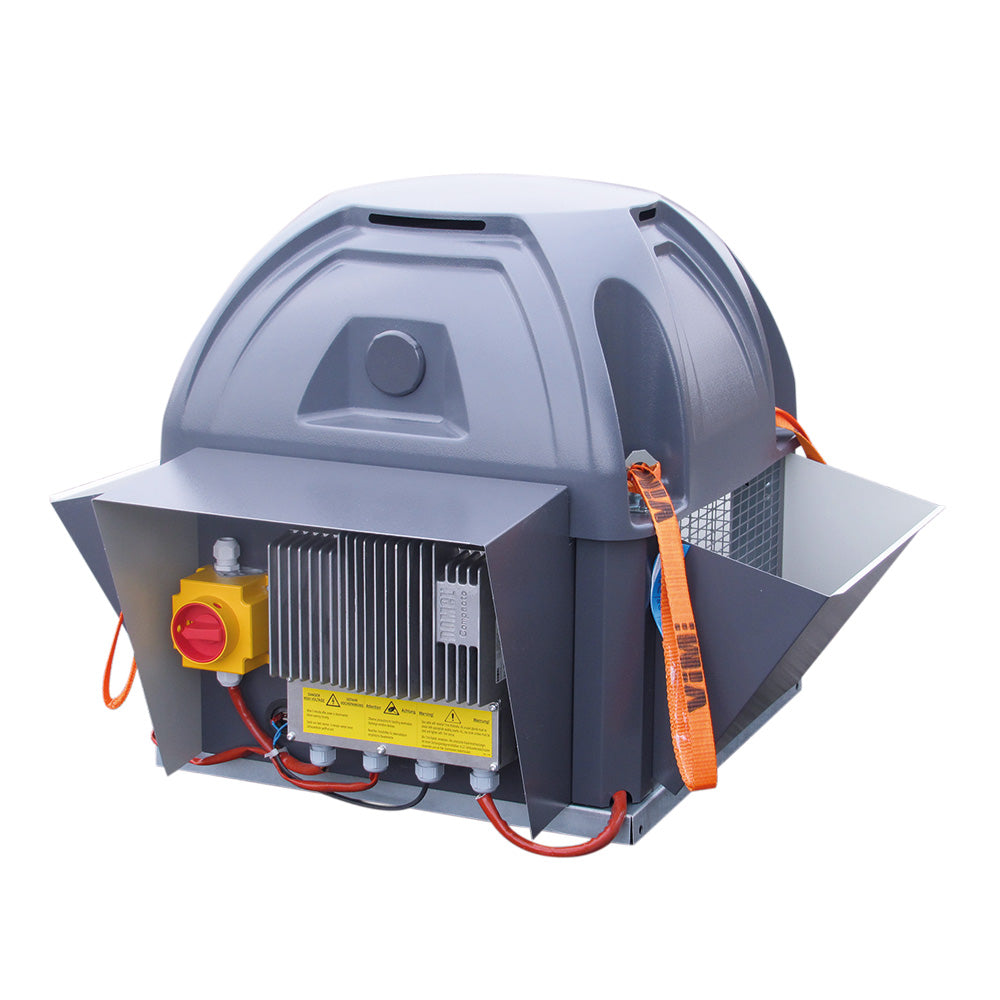

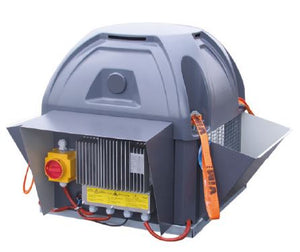

S&P TNVB/TNVT Roof Fan, Vertical

3.35199 € 4.78499 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit
Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

S&P TNVB/TNVT: Roof Fan, Vertical. Available are the versions TNVB ECOWATT ASR, TNVB ECOWATT VAV, TNVT ECOWATT ASR and TNVT ECOWATT VAV as well as the sizes 355, 400, 450, 500, 630 and 710.

Technical data
Manufacturer S&P
Application only in combination with CAIB / CAIT PRO-REG supply air units
Design centrifugal roof fan, vertical discharge
S&P typeItem numberVersionSizeSeriesPower supplyMotorAir temperature
TNVB-355 ECOWATT ASR5136954700TNVB ECOWATT ASR355TNVB / TNVT ECOWATT, ASR version1~ 230 V, 50 HzEC motor, externally ventilatedup to 120 °C
TNVB-400 ECOWATT ASR5136955300TNVB ECOWATT ASR400TNVB / TNVT ECOWATT, ASR version1~ 230 V, 50 HzEC motor, externally ventilatedup to 120 °C
TNVB-450 ECOWATT ASR5136955900TNVB ECOWATT ASR450TNVB / TNVT ECOWATT, ASR version1~ 230 V, 50 HzEC motor, externally ventilatedup to 120 °C
TNVB-355 ECOWATT VAV5136954500TNVB ECOWATT VAV355TNVB / TNVT ECOWATT VAV1~ 230 V, 50/60 HzEC external rotor motor, separated from the air stream and externally ventilated, protection class IP55, insulation class F, internal thermal contacts, continuous duty S1, sealed ball bearings-20 °C to +120 °C
TNVB-400 ECOWATT VAV5136955100TNVB ECOWATT VAV400TNVB / TNVT ECOWATT VAV1~ 230 V, 50/60 HzEC external rotor motor, separated from the air stream and externally ventilated, protection class IP55, insulation class F, internal thermal contacts, continuous duty S1, sealed ball bearings-20 °C to +120 °C
TNVB-450 ECOWATT VAV5136955700TNVB ECOWATT VAV450TNVB / TNVT ECOWATT VAV1~ 230 V, 50/60 HzEC external rotor motor, separated from the air stream and externally ventilated, protection class IP55, insulation class F, internal thermal contacts, continuous duty S1, sealed ball bearings-20 °C to +120 °C
TNVT-500 ECOWATT ASR5136958300TNVT ECOWATT ASR500TNVB / TNVT ECOWATT, ASR version3~ 400 V, 50 HzEC motor, externally ventilatedup to 120 °C
TNVT-630 ECOWATT ASR5136958900TNVT ECOWATT ASR630TNVB / TNVT ECOWATT, ASR version3~ 400 V, 50 HzEC motor, externally ventilatedup to 120 °C
TNVT-710 ECOWATT ASR5136959500TNVT ECOWATT ASR710TNVB / TNVT ECOWATT, ASR version3~ 400 V, 50 HzEC motor, externally ventilatedup to 120 °C
TNVT-500 ECOWATT VAV5136958100TNVT ECOWATT VAV500TNVB / TNVT ECOWATT VAV3~ 400 V, 50/60 HzEC external rotor motor, separated from the air stream and externally ventilated, protection class IP55, insulation class F, internal thermal contacts, continuous duty S1, sealed ball bearings-20 °C to +120 °C
TNVT-630 ECOWATT VAV5136958700TNVT ECOWATT VAV630TNVB / TNVT ECOWATT VAV3~ 400 V, 50/60 HzEC external rotor motor, separated from the air stream and externally ventilated, protection class IP55, insulation class F, internal thermal contacts, continuous duty S1, sealed ball bearings-20 °C to +120 °C
TNVT-710 ECOWATT VAV5136959300TNVT ECOWATT VAV710TNVB / TNVT ECOWATT VAV3~ 400 V, 50/60 HzEC external rotor motor, separated from the air stream and externally ventilated, protection class IP55, insulation class F, internal thermal contacts, continuous duty S1, sealed ball bearings-20 °C to +120 °C

Features
  • Characteristic curves and sound power spectra are given in the S&P catalogue.

Note on variants

The table above lists the S&P type and the item number for each option.
