Sanha | SKU: 12408515

SANHA-Therm Crossover Bend, 1 or 2 Sockets

Name: SANHA-Therm Crossover Bend, 1 or 2 Sockets
Brand: Sanha
SKU: 12408515
Price: 41.49 EUR
Availability: InStock

41^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Therm Crossover Bend, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

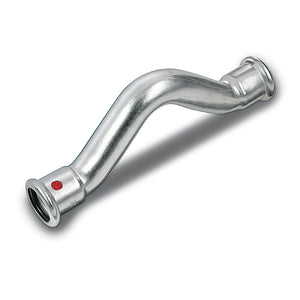

2 sockets: SANHA-Therm Crossover Bend, 2 Sockets is a crossover with universal press ends on both sides. The item belongs to the SANHA-Therm press fitting system (series 24000) for unalloyed steel pipes and, according to Sanha, is made of copper Cu-DHP, nickel-plated on the outside. Sanha intends the system only for closed circuits; according to Sanha, it is not suitable for drinking water.

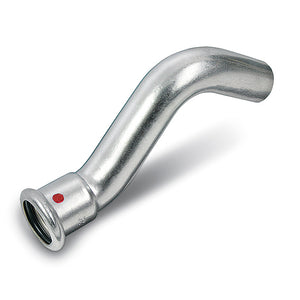

1 socket (socket x spigot): SANHA-Therm Crossover Bend, 1 Socket is a crossover with one universal press end and one male plain end. The item belongs to the SANHA-Therm press fitting system (series 24000) for unalloyed steel pipes and, according to Sanha, is made of copper Cu-DHP, nickel-plated on the outside. Sanha intends the system only for closed circuits; according to Sanha, it is not suitable for drinking water.

Technical data

Material	copper Cu-DHP, nickel-plated on the outside
Sealing ring	EPDM, black, factory-fitted
Nominal pressure	PN 16 (according to Sanha)
Max. continuous temperature	-30 to 120 °C, briefly up to 150 °C (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Suitable pipes	SANHA-Therm system pipes according to EN 10305 (Sanha recommendation)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	SANHA-Therm, series 24000, catalogue number 24085	SANHA-Therm, series 24000, catalogue number 24086
Design	crossover, universal press ends on both sides	crossover with universal press end and male plain end
Dimensions	d 15 to 28 mm	d 12 to 28 mm

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	A	H	L	z
2 Muffen	15	12408515	15	18	34	62	44
2 Muffen	18	12408518	18	20	38	71	51
2 Muffen	22	12408522	22	25	47	86	63
2 Muffen	28	12408528	28	28	56	102	75
1 Muffe (Muffe x Einsteckende)	12	12408612	12	18	30	89	73
1 Muffe (Muffe x Einsteckende)	15	12408615	15	18	34	99	81
1 Muffe (Muffe x Einsteckende)	18	12408618	18	20	38	114	94
1 Muffe (Muffe x Einsteckende)	22	12408622	22	25	47	139	115
1 Muffe (Muffe x Einsteckende)	28	12408628	28	28	56	164	137

Features

Areas of application according to the Sanha installation information: heating and cooling, dry compressed air with residual oil content up to 25 mg/m³, shipbuilding.
Marking according to Sanha: red dot on the fitting (not permitted for drinking water).
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
TÜV component approval TÜV.K.23-001 for the press fitting connection of Sanha press fitting and system pipe (types include Sanha Therm), valid until 30.11.2028.
