Sanha | SKU: 12804115

SANHA-Therm Industry Bend 45°, 1 or 2 Sockets

Name: SANHA-Therm Industry Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 12804115
Price: 4.49 EUR
Availability: InStock

4^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Therm Industry Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

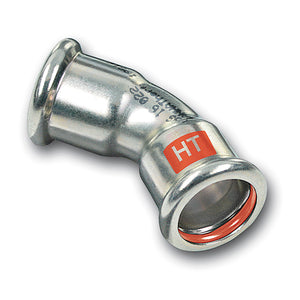

2 sockets: SANHA-Therm Industry Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the SANHA-Therm Industry press fitting system (series 28000) for unalloyed steel pipes and, according to Sanha, is made of unalloyed steel (material no. 1.0034), galvanised on the outside. Sanha intends the system only for closed, oxygen-free circuits; according to Sanha, it is not suitable for drinking water.

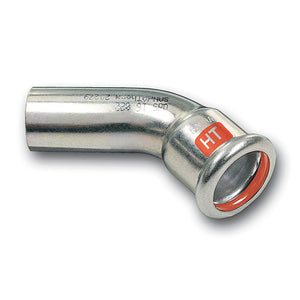

1 socket (socket x spigot): SANHA-Therm Industry Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the SANHA-Therm Industry press fitting system (series 28000) for unalloyed steel pipes and, according to Sanha, is made of unalloyed steel (material no. 1.0034), galvanised on the outside. Sanha intends the system only for closed, oxygen-free circuits; according to Sanha, it is not suitable for drinking water.

Technical data

Material	unalloyed steel (material no. 1.0034), galvanised on the outside
Sealing ring	FKM, red, factory-fitted
Nominal pressure	PN 16 (according to Sanha)
Max. continuous temperature	-20 to 160 °C, briefly up to 280 °C (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 15 to 108 mm
Suitable pipes	SANHA-Therm system pipes according to EN 10305 (Sanha recommendation)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	SANHA-Therm Industry, series 28000, catalogue number 28041	SANHA-Therm Industry, series 28000, catalogue number 28040
Design	bend 45°, universal press ends on both sides	bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	L	z	L1	L2
2 Muffen	108.0	128041108	108	124	53
2 Muffen	15	12804115	15	25	7
2 Muffen	18	12804118	18	29	9
2 Muffen	22	12804122	22	35	11
2 Muffen	28	12804128	28	41	14
2 Muffen	35	12804135	35	57	24
2 Muffen	42	12804142	42	67	29
2 Muffen	54	12804154	54	78	35
2 Muffen	76.1	12804176	76.1	88	38
2 Muffen	88.9	12804189	88.9	101	43
1 Muffe (Muffe x Einsteckende)	108.0	128040108	108		53	124	150
1 Muffe (Muffe x Einsteckende)	15	12804015	15		7	25	32
1 Muffe (Muffe x Einsteckende)	18	12804018	18		9	29	36
1 Muffe (Muffe x Einsteckende)	22	12804022	22		11	35	46
1 Muffe (Muffe x Einsteckende)	28	12804028	28		14	41	51
1 Muffe (Muffe x Einsteckende)	35	12804035	35		24	57	65
1 Muffe (Muffe x Einsteckende)	42	12804042	42		29	67	76
1 Muffe (Muffe x Einsteckende)	54	12804054	54		35	78	87
1 Muffe (Muffe x Einsteckende)	76.1	12804076	76.1		38	88	105
1 Muffe (Muffe x Einsteckende)	88.9	12804089	88.9		43	101	126

Features

Areas of application according to the Sanha installation information: heating and cooling, dry compressed air, heating oil and fuels, shipbuilding.
Marking according to Sanha: red dot (not permitted for drinking water) and red "HT" marking (high temperature).
