Sanha  |  SKU: 12404112

SANHA-Therm Bend 45°, 1 or 2 Sockets

399 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Therm Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

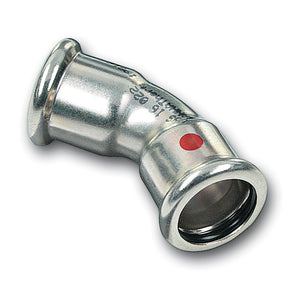

2 sockets: SANHA-Therm Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the SANHA-Therm press fitting system (series 24000) for unalloyed steel pipes and, according to Sanha, is made of unalloyed steel (material no. 1.0034), galvanised on the outside. Sanha intends the system only for closed circuits; according to Sanha, it is not suitable for drinking water.

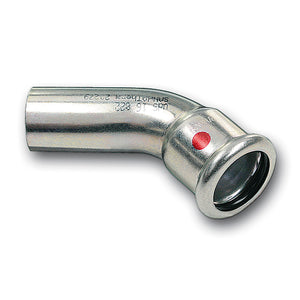

1 socket (socket x spigot): SANHA-Therm Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the SANHA-Therm press fitting system (series 24000) for unalloyed steel pipes and, according to Sanha, is made of unalloyed steel (material no. 1.0034), galvanised on the outside. Sanha intends the system only for closed circuits; according to Sanha, it is not suitable for drinking water.

Technical data
Material unalloyed steel (material no. 1.0034), galvanised on the outside
Sealing ring EPDM, black, factory-fitted
Nominal pressure PN 16 (according to Sanha)
Max. continuous temperature -30 to 120 °C, briefly up to 150 °C (according to Sanha)
Testing connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions d 12 to 108 mm
Suitable pipes SANHA-Therm system pipes according to EN 10305 (Sanha recommendation)

Data per version:

Feature 2 sockets 1 socket (socket x spigot)
System SANHA-Therm, series 24000, catalogue number 24041 SANHA-Therm, series 24000, catalogue number 24040
Design bend 45°, universal press ends on both sides bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version Size Item number d L z L1 L2
2 Muffen 108.0 124041108 108 124 53
2 Muffen 12 12404112 12 22 6
2 Muffen 15 12404115 15 25 7
2 Muffen 18 12404118 18 29 9
2 Muffen 22 12404122 22 35 11
2 Muffen 28 12404128 28 41 14
2 Muffen 35 12404135 35 57 24
2 Muffen 42 12404142 42 67 29
2 Muffen 54 12404154 54 78 35
2 Muffen 67 12404167 66.7 80 32
2 Muffen 76.1 12404176 76.1 88 38
2 Muffen 88.9 12404189 88.9 101 43
1 Muffe (Muffe x Einsteckende) 108.0 124040108 108 53 124 150
1 Muffe (Muffe x Einsteckende) 12 12404012 12 6 22 33
1 Muffe (Muffe x Einsteckende) 15 12404015 15 7 25 32
1 Muffe (Muffe x Einsteckende) 18 12404018 18 9 29 36
1 Muffe (Muffe x Einsteckende) 22 12404022 22 11 35 46
1 Muffe (Muffe x Einsteckende) 28 12404028 28 14 41 51
1 Muffe (Muffe x Einsteckende) 35 12404035 35 24 57 65
1 Muffe (Muffe x Einsteckende) 42 12404042 42 29 67 76
1 Muffe (Muffe x Einsteckende) 54 12404054 54 35 78 87
1 Muffe (Muffe x Einsteckende) 67 12404067 66.7 32 80 93
1 Muffe (Muffe x Einsteckende) 76.1 12404076 76.1 38 88 105
1 Muffe (Muffe x Einsteckende) 88.9 12404089 88.9 43 101 126

Features
  • Areas of application according to the Sanha installation information: heating and cooling, dry compressed air with residual oil content up to 25 mg/m³, shipbuilding.
  • Marking according to Sanha: red dot on the fitting (not permitted for drinking water).
  • Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
  • TÜV component approval TÜV.K.23-001 for the press fitting connection of Sanha press fitting and system pipe (types include Sanha Therm), valid until 30.11.2028.
  • VdS approval G 411011 for the SANHA-Therm pipe system in stationary water extinguishing systems, valid until 21.02.2028. It covers steel press fittings 1.0034 from 22 to 108 mm and, according to the approval, applies only to branch and distribution pipes in wet systems behind the alarm valve station, subject to the restrictions stated there.
