SANHA-Press Solar Elbow with Male or Female Thread

Name: SANHA-Press Solar Elbow with Male or Female Thread
Brand: Sanha
SKU: 1130901238
Price: 11.49 EUR
Availability: InStock

11^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Solar Elbow with Male or Female Thread combines the following versions in one product: female thread, male thread. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

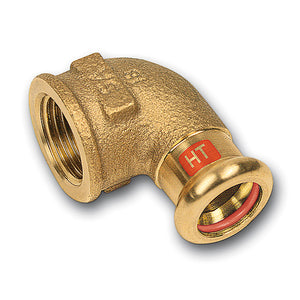

female thread: SANHA-Press Solar Elbow with Female Thread is a 90° elbow with a universal press end and a female thread. The item belongs to the SANHA-Press Solar press fitting system (series 13000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, the system with red FKM sealing ring is intended for solar and high-temperature applications.

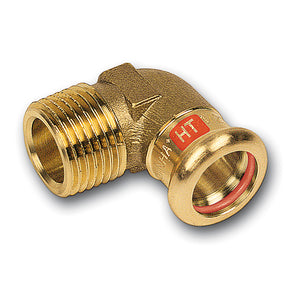

male thread: SANHA-Press Solar Elbow with Male Thread is a 90° elbow with a universal press end and a male thread. The item belongs to the SANHA-Press Solar press fitting system (series 13000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, the system with red FKM sealing ring is intended for solar and high-temperature applications.

Technical data

Material	copper alloy (according to Sanha)
Sealing ring	FKM, red, factory-fitted
Nominal pressure	PN 16 (according to Sanha)
Max. continuous temperature	-20 to 160 °C depending on the medium, briefly up to 280 °C (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Thread	pipe thread R/Rp according to EN 10226 (according to Sanha)
Dimensions	d 12 to 54 mm
Suitable pipes	copper pipes according to EN 1057 in the soft, half-hard and hard versions (according to Sanha)

Data per version:

Feature	female thread	male thread
System	SANHA-Press Solar, series 13000, catalogue number 13090G	SANHA-Press Solar, series 13000, catalogue number 13092G
Design	elbow 90° with universal press end and female thread	elbow 90° with universal press end and male thread

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	d	Rp	H	L	SW	z1	z2	R	z
Innengewinde	12x1/2	1130901212	not stated	not stated	not stated	not stated	not stated	not stated	not stated
Innengewinde	12x3/8	1130901238	not stated	not stated	not stated	not stated	not stated	not stated	not stated
Innengewinde	15x1/2	1130901512	15	1/2	33	23	26	15	10
Innengewinde	15x3/4	1130901534	15	3/4	36	27	32	18	12
Innengewinde	18x1/2	1130901812	18	1/2	33	25	26	13	12
Innengewinde	18x3/4	1130901834	18	3/4	36	27	32	16	12
Innengewinde	22x1	113090221	22	1	44	30	39	20	13
Innengewinde	22x1/2	1130902212	22	1/2	37	27	26	13	14
Innengewinde	22x3/4	1130902234	22	3/4	40	29	32	16	14
Innengewinde	28x1	113090281	28	1	46	33	39	19	16
Innengewinde	28x3/4	1130902834	28	3/4	46	31	39	19	16
Innengewinde	35x1 1/4	11309035114	35	1 1/4	57	42	48	25	23
Innengewinde	42x1 1/2	11309042112	42	1 1/2	65	45	55	27	26
Innengewinde	54x2	113090542	54	2	78	55	66	36	31
Außengewinde	12x1/2	1130921212	not stated		not stated	not stated	not stated			not stated	not stated
Außengewinde	12x3/8	1130921238	not stated		not stated	not stated	not stated			not stated	not stated
Außengewinde	15x1/2	1130921512	15		27	26	20			1/2	9
Außengewinde	18x1/2	1130921812	18		30	28	20			1/2	10
Außengewinde	18x3/4	1130921834	18		35	33	26			3/4	15
Außengewinde	22x1	113092221	22		42	38	32			1	18
Außengewinde	22x3/4	1130922234	22		36	33	26			3/4	12
Außengewinde	28x1	113092281	28		42	38	32			1	15
Außengewinde	35x1 1/4	11309235114	35		52	45	40			1 1/4	20
Außengewinde	42x1 1/2	11309242112	42		59	48	45			1 1/2	21
Außengewinde	54x2	113092542	54		70	59	58			2	28

Features

Areas of application according to the Sanha installation information: compressed air, technical gases, heating and cooling, saturated steam systems, district heating, heating oil and fuels, and solar systems. According to Sanha, the FKM sealing ring is resistant to oils and water-glycol mixture.
Marking on the fitting according to Sanha: manufacturer, dimension, approval mark and red HT marking.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
