SANHA-Press Solar Bend 45°, 1 or 2 Sockets

SANHA-Press Solar Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

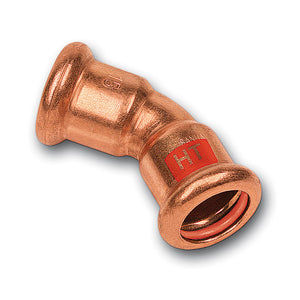

2 sockets: SANHA-Press Solar Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the SANHA-Press Solar press fitting system (series 12000) made of copper and, according to Sanha, is made of copper Cu-DHP. According to Sanha, the system with red FKM sealing ring is intended for solar and high-temperature applications.

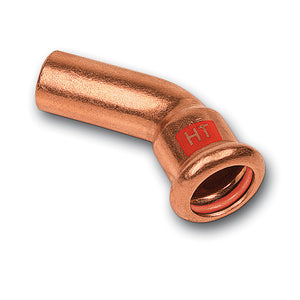

1 socket (socket x spigot): SANHA-Press Solar Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the SANHA-Press Solar press fitting system (series 12000) made of copper and, according to Sanha, is made of copper Cu-DHP. According to Sanha, the system with red FKM sealing ring is intended for solar and high-temperature applications.

Data per version:

Select version and size. Not every combination is available.

• Areas of application according to the Sanha installation information: compressed air, technical gases, heating and cooling, saturated steam systems, district heating, heating oil and fuels, and solar systems. According to Sanha, the FKM sealing ring is resistant to oils and water-glycol mixture.
• Marking on the fitting according to Sanha: manufacturer, dimension, approval mark and red HT marking.
• For technical gases, the maximum operating pressure is 16 bar according to Sanha.
• 2 sockets: General building authority approval / general type approval Z-38.4-193 of the DIBt for copper pipe connections with press connection technology of the SANHA press system for heating oil and diesel fuel lines, valid until 21.03.2029. The approval lists model 12041; it applies to copper pipelines with outside diameters of 12 to 54 mm in installations for storing heating oil EL and diesel fuel with operating temperatures up to 40 °C and a maximum pressure inside the pipe of 5 bar.
• 1 socket (socket x spigot): General building authority approval / general type approval Z-38.4-193 of the DIBt for copper pipe connections with press connection technology of the SANHA press system for heating oil and diesel fuel lines, valid until 21.03.2029. The approval lists model 12040; it applies to copper pipelines with outside diameters of 12 to 54 mm in installations for storing heating oil EL and diesel fuel with operating temperatures up to 40 °C and a maximum pressure inside the pipe of 5 bar.
