SANHA-Press Gas Elbow with Male or Female Thread

Name: SANHA-Press Gas Elbow with Male or Female Thread
Brand: Sanha
SKU: 1110901212
Price: 15.99 EUR
Availability: InStock

15^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Gas Elbow with Male or Female Thread combines the following versions in one product: female thread, male thread. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

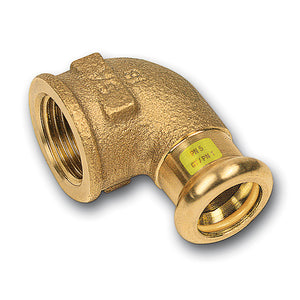

female thread: SANHA-Press Gas Elbow with Female Thread is a 90° elbow with a universal press end and a female thread. The item belongs to the SANHA-Press Gas press fitting system (series 11000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, it is intended for gas installations.

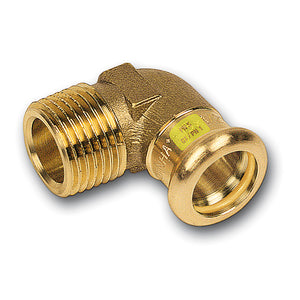

male thread: SANHA-Press Gas Elbow with Male Thread is a 90° elbow with a universal press end and a male thread. The item belongs to the SANHA-Press Gas press fitting system (series 11000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, it is intended for gas installations.

Technical data

Material	copper alloy (according to Sanha)
Sealing ring	HNBR, yellow, factory-fitted
Nominal pressure	PN 5 / GT-PN 1 (according to the Sanha installation information)
Max. continuous temperature	-20 to 70 °C (according to the Sanha installation information)
Testing	connection tested according to DVGW G 5614 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Thread	pipe thread R/Rp according to EN 10226 (according to Sanha)
Suitable pipes	copper pipes according to EN 1057 (Sanha recommendation)

Data per version:

Feature	female thread	male thread
System	SANHA-Press Gas, series 11000, catalogue number 11090G	SANHA-Press Gas, series 11000, catalogue number 11092G
Design	elbow 90° with universal press end and female thread	elbow 90° with universal press end and male thread
Dimensions	d 12 to 54 mm	d 14 to 54 mm

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	d	Rp	H	L	SW	z1	z2	R	z
Innengewinde	12x1/2	1110901212	12	1/2	30	22	26	14	9
Innengewinde	15x1/2	1110901512	15	1/2	33	23	26	15	10
Innengewinde	15x3/4	1110901534	15	3/4	36	27	32	18	12
Innengewinde	16x1/2	1110901612	16	1/2	33	23	26	15	10
Innengewinde	18x1/2	1110901812	18	1/2	33	25	26	13	12
Innengewinde	18x3/4	1110901834	18	3/4	36	27	32	16	12
Innengewinde	22x1	111090221	22	1	44	30	39	20	13
Innengewinde	22x1/2	1110902212	22	1/2	37	27	26	13	14
Innengewinde	22x3/4	1110902234	22	3/4	40	29	32	16	14
Innengewinde	28x1	111090281	28	1	46	33	39	19	16
Innengewinde	28x3/4	1110902834	28	3/4	46	31	39	19	16
Innengewinde	35x1 1/4	11109035114	35	1 1/4	57	42	48	25	23
Innengewinde	42x1 1/2	11109042112	42	1 1/2	65	45	55	27	26
Innengewinde	54x2	111090542	54	2	78	55	66	36	31
Außengewinde	14x1/2	1110921412	14		27	26	20			1/2	9
Außengewinde	15x1/2	1110921512	15		27	26	20			1/2	9
Außengewinde	16x1/2	1110921612	16		30	28	20			1/2	12
Außengewinde	18x1/2	1110921812	18		30	28	20			1/2	10
Außengewinde	18x3/4	1110921834	18		35	33	26			3/4	15
Außengewinde	22x1	111092221	22		42	38	32			1	18
Außengewinde	22x1/2	1110922212	22		36	33	26			1/2	12
Außengewinde	22x3/4	1110922234	22		36	33	26			3/4	12
Außengewinde	28x1	111092281	28		42	38	32			1	15
Außengewinde	35x1 1/4	11109235114	35		52	45	40			1 1/4	20
Außengewinde	42x1 1/2	11109242112	42		59	48	45			1 1/2	21
Außengewinde	54x2	111092542	54		70	59	58			2	28

Features

Area of application according to the Sanha installation information: flammable gases according to DVGW worksheet G 260.
Marking on the fitting according to Sanha: manufacturer, dimension, DVGW approval mark and yellow GAS marking GT/PN 1.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 10 mbar to 1 bar with air for this.
DVGW type examination certificate DG-4550CU0259 for press connectors made of copper and copper alloy for copper pipelines, leaky when unpressed, model SANHA-Press Gas series 10000 and series 11000 (test basis DVGW G 5614), valid until 13.08.2029.
