SANHA-Press Gas Union, Conical Sealing

Name: SANHA-Press Gas Union, Conical Sealing
Brand: Sanha
SKU: 1113431512
Price: 25.99 EUR
Availability: InStock

25^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Gas Union, Conical Sealing combines the following versions in one product: male thread, female thread, press connection both ends. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

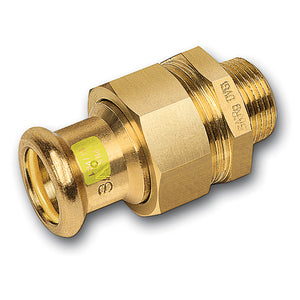

male thread: SANHA-Press Gas union, male thread, conical seal is a conical-seal union with universal press end and male thread, union nut made of brass. The item belongs to the SANHA-Press Gas press fitting system (series 11000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, it is intended for gas installations.

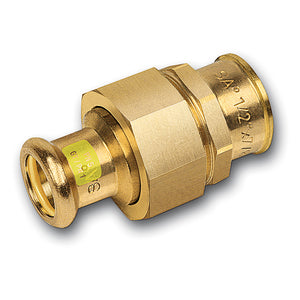

female thread: SANHA-Press Gas union, female thread, conical seal is a conical-seal union with universal press end and female thread, union nut made of brass. The item belongs to the SANHA-Press Gas press fitting system (series 11000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, it is intended for gas installations.

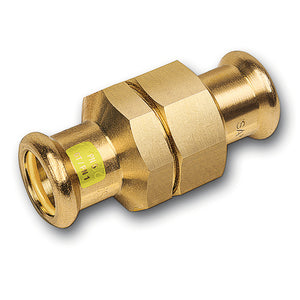

press connection both ends: SANHA-Press Gas union, conical seal is a conical-seal union with universal press ends on both sides, union nut made of brass. The item belongs to the SANHA-Press Gas press fitting system (series 11000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, it is intended for gas installations.

Technical data

Material	copper alloy (according to Sanha)
Union nut	brass (according to Sanha)
Conical sealing surface	with additional O-ring (HNBR, yellow)
Sealing ring	HNBR, yellow, factory-fitted
Nominal pressure	PN 5 / GT-PN 1 (according to the Sanha installation information)
Max. continuous temperature	-20 to 70 °C (according to the Sanha installation information)
Testing	connection tested according to DVGW G 5614 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 15 to 54 mm
Suitable pipes	copper pipes according to EN 1057 (Sanha recommendation)

Data per version:

Feature	male thread	female thread	press connection both ends
System	SANHA-Press Gas, series 11000, catalogue number 11343G	SANHA-Press Gas, series 11000, catalogue number 11340G	SANHA-Press Gas, series 11000, catalogue number 11340
Design	union, conical seal, with universal press end and male thread	union, conical seal, with universal press end and female thread	union, conical seal, universal press ends on both sides
Thread	pipe thread R/Rp according to EN 10226 (according to Sanha)	pipe thread R/Rp according to EN 10226 (according to Sanha)	not specified

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	d	R	L	SW1	SW2	z	Rp
Außengewinde	15x1/2	1113431512	15	1/2	61	34	31	43
Außengewinde	18x1/2	1113431812	18	1/2	70	40	40	49
Außengewinde	18x3/4	1113431834	18	3/4	70	40	40	49
Außengewinde	22x1	111343221	22	1	77	40	40	53
Außengewinde	22x3/4	1113432234	22	3/4	72	40	40	48
Außengewinde	28x1	111343281	28	1	82	48	45	55
Außengewinde	28x3/4	1113432834	28	3/4	83	48	45	56
Außengewinde	42x1 1/2	11134342112	42	1 1/2	104	72	68	67
Außengewinde	54x2	111343542	54	2	112	80	76	70
Innengewinde	15x1/2	1113401512	15		60	34	31	29	1/2
Innengewinde	22x3/4	1113402234	22		65	40	40	29	3/4
Innengewinde	28x1	111340281	28		83	48	45	39	1
Innengewinde	35x1 1/4	11134035114	35		84	59	55	33	1 1/4
Innengewinde	54x2	111340542	54		100	80	76	34	2
beidseitig Pressanschluss	15	11134015	15		66	34	31	30
beidseitig Pressanschluss	18	11134018	18		77	40	40	39
beidseitig Pressanschluss	22	11134022	22		82	40	40	34
beidseitig Pressanschluss	28	11134028	28		95	48	45	41
beidseitig Pressanschluss	35	11134035	35		102	59	55	38
beidseitig Pressanschluss	54	11134054	54		131	80	76	46

Features

Area of application according to the Sanha installation information: flammable gases according to DVGW worksheet G 260.
Marking on the fitting according to Sanha: manufacturer, dimension, DVGW approval mark and yellow GAS marking GT/PN 1.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 10 mbar to 1 bar with air for this.
DVGW type examination certificate DG-4550CU0259 for press connectors made of copper and copper alloy for copper pipelines, leaky when unpressed, model SANHA-Press Gas series 10000 and series 11000 (test basis DVGW G 5614), valid until 13.08.2029.
