Sanha | SKU: 11008512

SANHA-Press Gas Crossover Bend, 1 or 2 Sockets

Name: SANHA-Press Gas Crossover Bend, 1 or 2 Sockets
Brand: Sanha
SKU: 11008512
Price: 19.99 EUR
Availability: InStock

19^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Gas Crossover Bend, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

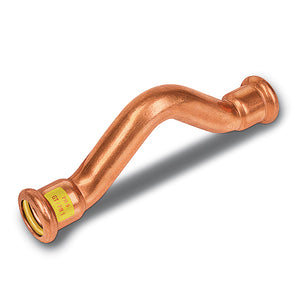

2 sockets: SANHA-Press Gas crossover, 2 sockets is a crossover with universal press ends on both sides, used to route one pipe over a crossing pipe. The item belongs to the SANHA-Press Gas press fitting system (series 10000) made of copper and, according to Sanha, is made of copper Cu-DHP. According to Sanha, it is intended for gas installations.

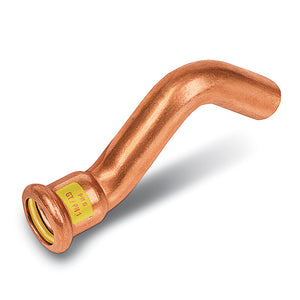

1 socket (socket x spigot): SANHA-Press Gas crossover, 1 socket is a crossover with one universal press end and one male plain end, used to route one pipe over a crossing pipe. The item belongs to the SANHA-Press Gas press fitting system (series 10000) made of copper and, according to Sanha, is made of copper Cu-DHP. According to Sanha, it is intended for gas installations.

Technical data

Material	copper Cu-DHP (according to Sanha)
Sealing ring	HNBR, yellow, factory-fitted
Nominal pressure	PN 5 / GT-PN 1 (according to the Sanha installation information)
Max. continuous temperature	-20 to 70 °C (according to the Sanha installation information)
Testing	connection tested according to DVGW G 5614 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Suitable pipes	copper pipes according to EN 1057 (Sanha recommendation)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	SANHA-Press Gas, series 10000, catalogue number 10085	SANHA-Press Gas, series 10000, catalogue number 10086
Design	crossover, universal press ends on both sides	crossover with universal press end and male plain end
Dimensions	d 12 to 28 mm	d 15 to 28 mm

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	A	H	L	z
2 Muffen	12	11008512	12	18	30	55	39
2 Muffen	15	11008515	15	19	34	62	44
2 Muffen	18	11008518	18	20	38	71	51
2 Muffen	22	11008522	22	25	47	86	63
2 Muffen	28	11008528	28	28	56	102	75
1 Muffe (Muffe x Einsteckende)	15	11008615
1 Muffe (Muffe x Einsteckende)	18	11008618
1 Muffe (Muffe x Einsteckende)	22	11008622
1 Muffe (Muffe x Einsteckende)	28	11008628

Features

Area of application according to the Sanha installation information: flammable gases according to DVGW worksheet G 260.
Marking on the fitting according to Sanha: manufacturer, dimension, DVGW approval mark and yellow GAS marking GT/PN 1.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 10 mbar to 1 bar with air for this.
DVGW type examination certificate DG-4550CU0259 for press connectors made of copper and copper alloy for copper pipelines, leaky when unpressed, model SANHA-Press Gas series 10000 and series 11000 (test basis DVGW G 5614), valid until 13.08.2029.

Data sheets and manuals (PDF)
