Sanha | SKU: 11604112

SANHA-Press Chrome Bend 45°, 1 or 2 Sockets

Name: SANHA-Press Chrome Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 11604112
Price: 5.49 EUR
Availability: InStock

5^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Chrom Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

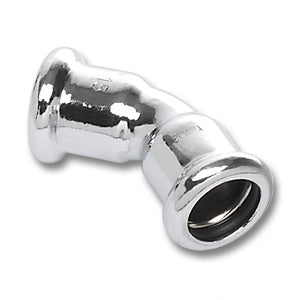

2 sockets: SANHA-Press Chrom bend 45°, 2 sockets is a 45° bend with universal press ends on both sides. The item belongs to the SANHA-Press Chrom press fitting system (series 16000) made of copper. According to Sanha, the system is intended for visible installations with chrome-plated copper pipes.

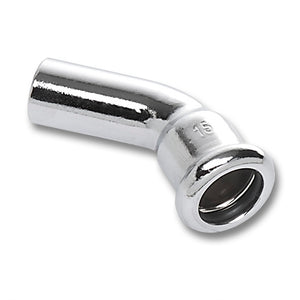

1 socket (socket x spigot): SANHA-Press Chrom bend 45°, 1 socket is a 45° bend with one universal press end and one male plain end. The item belongs to the SANHA-Press Chrom press fitting system (series 16000) made of copper. According to Sanha, the system is intended for visible installations with chrome-plated copper pipes.

Technical data

Material	copper Cu-DHP, chrome-plated (according to Sanha)
Sealing ring	EPDM, black, factory-fitted
Nominal pressure	PN 16, operating conditions as series 6000 (according to the Sanha installation information)
Max. continuous temperature	-30 to 120 °C, briefly up to 150 °C (according to the Sanha installation information, series 6000)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 28 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 12 to 28 mm
Suitable pipes	chrome-plated copper pipes according to EN 1057 (according to Sanha)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	SANHA-Press Chrom, series 16000, catalogue number 16041	SANHA-Press Chrom, series 16000, catalogue number 16040
Design	bend 45°, universal press ends on both sides	bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number
2 Muffen	12	11604112
2 Muffen	15	11604115
2 Muffen	18	11604118
2 Muffen	22	11604122
2 Muffen	28	11604128
1 Muffe (Muffe x Einsteckende)	12	11604012
1 Muffe (Muffe x Einsteckende)	15	11604015
1 Muffe (Muffe x Einsteckende)	18	11604018
1 Muffe (Muffe x Einsteckende)	22	11604022
1 Muffe (Muffe x Einsteckende)	28	11604028

Features

Areas of application according to Sanha (technical submittal SANHA-Press Chrom): heating and cooling, rainwater, inert gases and technical gases. According to Sanha, the chrome plating serves the appearance in visible installations.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
