Sanha RG Elbow with Male or Female Thread

Name: Sanha RG Elbow with Male or Female Thread
Brand: Sanha
SKU: 140901238
Price: 7.99 EUR
Availability: InStock

7^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha RG Elbow with Male or Female Thread combines the following versions in one product: female thread, male thread. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

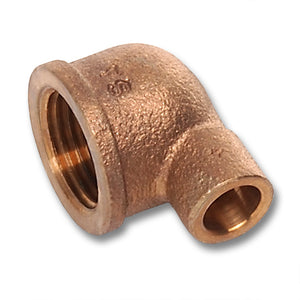

female thread: Sanha RG elbow, female thread is a 90° elbow with solder end and female thread. The item belongs to the Sanha series 4000 (capillary solder and transition fittings for copper pipes) and, according to Sanha, is made of copper alloy (gunmetal).

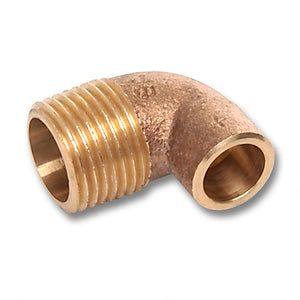

male thread: Sanha RG elbow, male thread is a 90° elbow with solder end and male thread. The item belongs to the Sanha series 4000 (capillary solder and transition fittings for copper pipes) and, according to Sanha, is made of copper alloy (gunmetal).

Technical data

Material	copper alloy (gunmetal) CC499K (according to Sanha)
Thread	pipe thread R/Rp according to EN 10226 (according to Sanha)
Standard	complies with EN 1254-1 (according to Sanha)
Testing	tested according to DVGW GW 6 (according to Sanha)
Dimensions	d 12 to 54 mm
Suitable pipes	copper pipes according to EN 1057 (according to Sanha)
Soldering method	soft soldering and brazing (according to Sanha)

Data per version:

Feature	female thread	male thread
System	Sanha series 4000, catalogue number 4090G	Sanha series 4000, catalogue number 4092G
Design	elbow 90°, with solder end and female thread	elbow 90°, with solder end and male thread

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	d	Rp	H	L	z1	z2	R	z
Innengewinde	12 x 1/2	140901212	12	1/2	20	19	11	8
Innengewinde	12x3/8	140901238	12	3/8	20	17	10	8
Innengewinde	14x1/2	140901412	14	1/2	22	21	10	10
Innengewinde	15x1/2	140901512	15	1/2	22	21	11	10
Innengewinde	15x3/8	140901538	15	3/8	22	19	10	10
Innengewinde	16x1/2	140901612	16	1/2	22	21	10	10
Innengewinde	16x3/4	140901634	16	3/4	29	23	16	10
Innengewinde	18x1/2	140901812	18	1/2	24	22	11	11
Innengewinde	18x3/4	140901834	18	3/4	28	24	15	11
Innengewinde	22x1	14090221	22	1	36	28	19	13
Innengewinde	22x1/2	140902212	22	1/2	27	24	11	13
Innengewinde	22x3/4	140902234	22	3/4	31	26	14	13
Innengewinde	28x1	14090281	28	1	39	32	19	17
Innengewinde	28x3/4	140902834	28	3/4	36	30	16	17
Innengewinde	35x1 1/4	1409035114	35	1 1/4	50	38	25	20
Innengewinde	42x1 1/2	1409042112	42	1 1/2	55	45	27	24
Innengewinde	54x2	14090542	54	2	70	52	36	31
Außengewinde	12 x 1/2	140921212	12		20	25			1/2	10
Außengewinde	14x1/2	140921412	14		22	27			1/2	10
Außengewinde	15x1/2	140921512	15		22	27			1/2	10
Außengewinde	16x1/2	140921612	16		22	27			1/2	10
Außengewinde	18x1/2	140921812	18		24	28			1/2	10
Außengewinde	18x3/4	140921834	18		28	30			3/4	14
Außengewinde	22x1	14092221	22		38	43			1	21
Außengewinde	22x3/4	140922234	22		30	33			3/4	13
Außengewinde	28x1	14092281	28		33	39			1	14
Außengewinde	28x3/4	140922834	28		31	39			3/4	11
Außengewinde	35x1 1/4	1409235114	35		42	51			1 1/4	19
Außengewinde	42x1 1/2	1409242112	42		53	56			1 1/2	25
Außengewinde	54x2	14092542	54		64	65			2	30

Features

Areas of application according to Sanha (technical submittal series 4000): drinking water, heating and cooling, refrigeration systems, gas installations, solar systems, compressed air and technical gases.
Marking on the fitting according to Sanha: manufacturer (SA) and dimension.
DVGW type examination certificate DV-7401BO0047 for capillary solder fittings made of gunmetal, model S 4000, product category threaded, capillary solder and transition fittings made of copper alloys according to DVGW GW 6 (test basis DVGW GW 6), valid until 24.02.2028.
DVGW certificate of conformity hygiene HW-1001DQ0148 for components made of CC499K, solder fittings SA (series 4000), for drinking water installations, valid until 14.03.2030.
