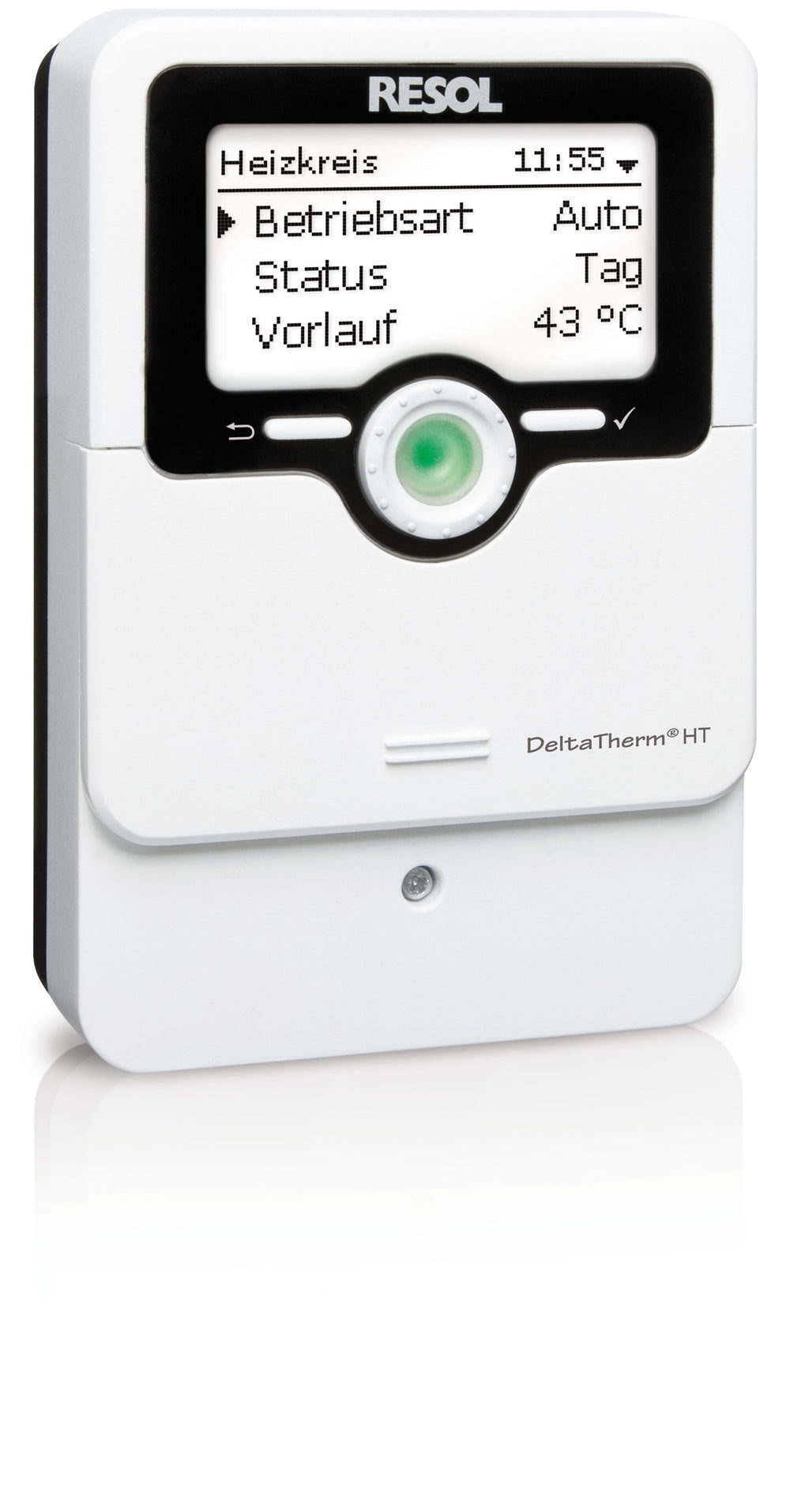

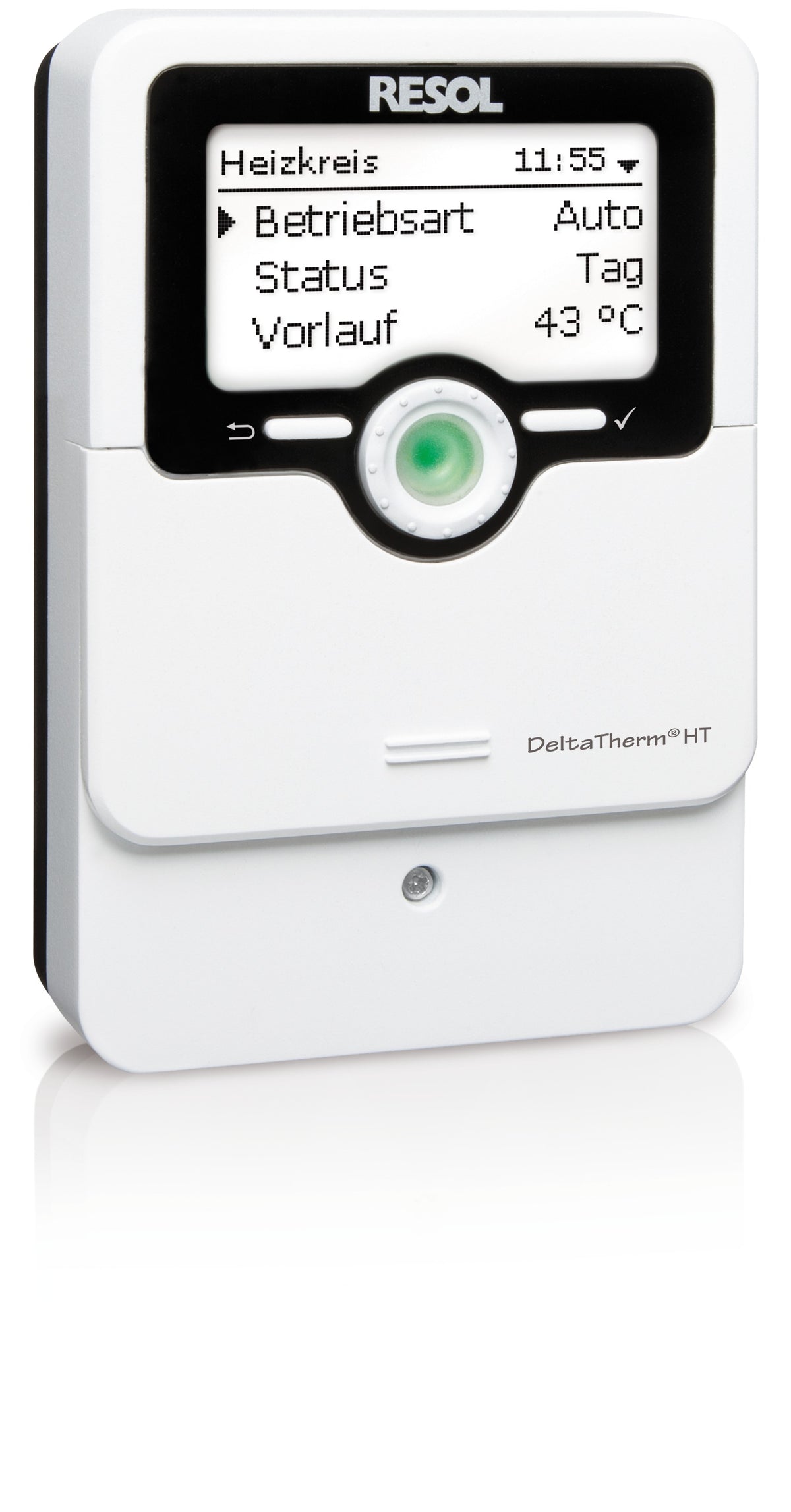

Resol Heating Circuit Controller DeltaTherm® HT

Name: Resol Heating Circuit Controller DeltaTherm® HT
Brand: Resol GmbH
SKU: 11500600
Price: 489.99 EUR
Availability: InStock

489^{99 €} ~~566^{32 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol heating circuit controller DeltaTherm® HT is a compact heating circuit controller, designed according to Resol for apartment transfer stations and heating systems with one heating circuit. It performs weather-compensated control with room influence or demand-led room control with 1 room temperature sensor.

When a central outdoor sensor unit is used, several controllers can access the same outdoor temperature value, so that only one outdoor temperature sensor needs to be installed. The controller has 5 operating modes and a night setback.

Technical data

Inputs	4 Pt1000 temperature sensors (1 of which can be switched to room thermostat), 1 input for remote control (RTA) or operating mode switch (BAS)
Outputs	3 semiconductor relays, 1 potential-free extra-low voltage relay, 1 PWM output, 1 output 0 to 10 V
PWM frequency and PWM voltage	512 Hz, 10.8 V
Switching capacity	1 (1) A 240 V~ per semiconductor relay; 1 (1) A 30 V⎓ potential-free relay
Total switching capacity	3 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Standby	0.63 W
Mode of operation	Type 1.B.C.Y
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®, microSD card slot
Display	full graphic display, control LED (Lightwheel®)
Operation	4 buttons, 1 adjustment dial (Lightwheel®)
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T4A
Dimensions	110 x 166 x 47 mm

Features

Functions according to the data sheet: weather-compensated heating circuit control, room thermostat, chimney sweep function, screed drying, holiday mode.
Pre-configured basic system for one mixed heating circuit; heating circuit frost protection.
According to the manufacturer, remote access via the RCP12 room control unit is possible.

Note on variants

Standard: controller without temperature sensors (article number 11500600). Complete package: controller with 3 Pt1000 temperature sensors (2 x FKP23, 1 x FAP13) (article number 11500610).
