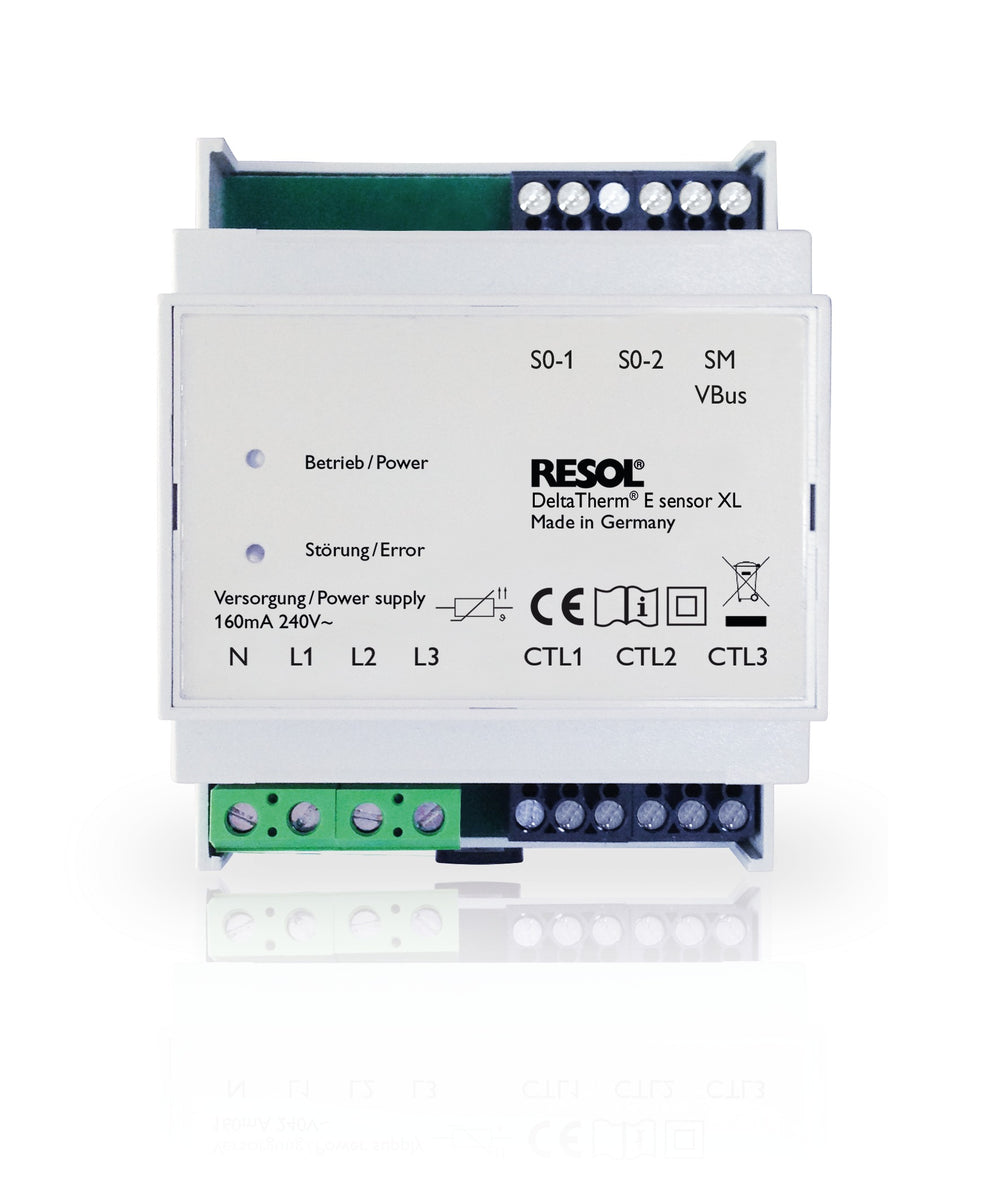

Resol DeltaTherm E sensor XL

Name: Resol DeltaTherm E sensor XL
Brand: Resol GmbH
SKU: 11214550
Price: 401.99 EUR
Availability: InStock

401^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol DeltaTherm E sensor XL is a sensor module for power measurement up to approx. 200 kW. According to Resol, 3 SW24 current sensors (Ø 24 mm) are included in the scope of delivery. The module is mounted on the DIN rail in the distribution board and connected via the VBus®.

In the Resol manuals for the DeltaTherm® PV, PV MAX and PHM controllers, the E sensor XL is listed as a variant of the sensor module; in the DeltaTherm® PV MAX data sheet it is listed as an accessory.

Technical data

Inputs	3 current inputs and 3 voltage inputs for SW24 current sensors (Ø 24 mm)
Power supply	100 to 240 V~, 50 to 60 Hz
Type of connection	Y
Standby	below 1 W
Rated impulse voltage	1.0 kV
Data interface	VBus®
Function	energy meter
Housing	plastic, PC (UL 94 V-0)
Mounting	DIN rail in the distribution board
Display	2 control LEDs
Degree of protection	IP 20 (DIN EN 60529)
Protection class	II
Ambient temperature	0 to 40 °C
Pollution degree	2
Dimensions	71 x 90 x 58 mm
Resol article number	11214550
