Resol GmbH | SKU: 11545000

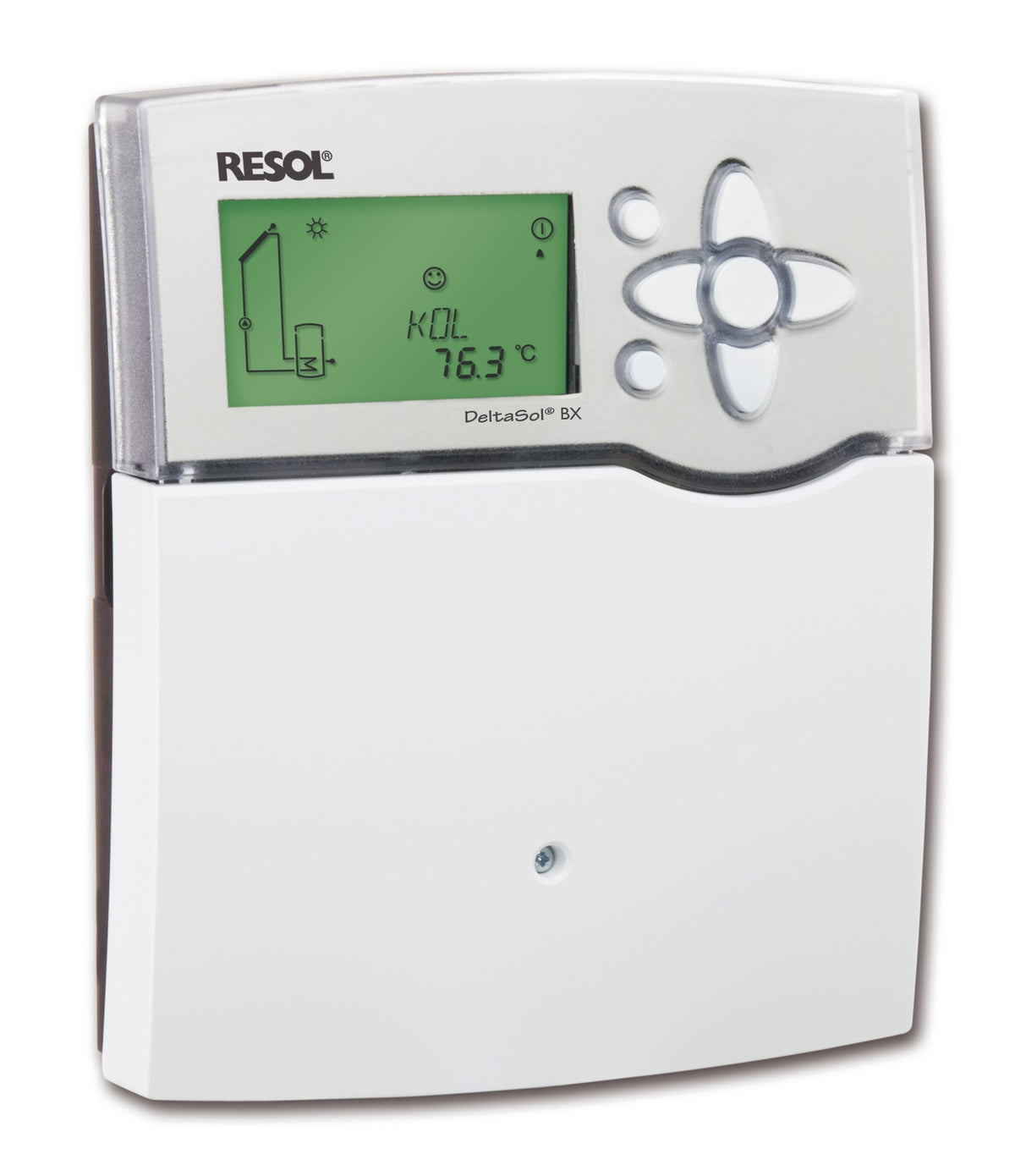

Resol Solar Controller DeltaSol® BX

Name: Resol Solar Controller DeltaSol® BX
Brand: Resol GmbH
SKU: 11545000
Price: 513.99 EUR
Availability: InStock

513^{99 €} ~~595^{71 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Resol DeltaSol® BX is a solar controller for solar and heating systems with one or two stores. According to the manufacturer, 26 pre-programmed basic systems are available; predefined functions are used to parameterise the system.

System data can be logged via the SD card slot and transferred to a computer. Two PWM outputs control high-efficiency pumps with speed control.

Technical data

Inputs	5 Pt1000 temperature sensors, 1 V40 pulse input, 2 analogue Grundfos Direct Sensors™
Outputs	3 semiconductor relays, 1 electromechanical relay, 2 PWM outputs
PWM frequency and PWM voltage	512 Hz, 10.8 V
Switching capacity	1 (1) A 240 V~ per semiconductor relay; 2 (1) A 240 V~ electromechanical relay
Total switching capacity	4 A 240 V~
Power supply	100 to 240 V~, 50 to 60 Hz
Rated impulse voltage	2.5 kV
Data interface	RESOL VBus®, SD card slot
VBus® current output	35 mA
Display	system monitoring display, 16-segment display, 7-segment display, 8 symbols, operating control LED (directional pad), backlight
Operation	7 buttons
Housing	plastic (PC-ABS and PMMA)
Mounting	wall mounting, panel mounting possible
Degree of protection	IP 20 (DIN EN 60529)
Protection class	I
Ambient temperature	0 to 40 °C
Relative humidity	10 to 90%
Fuse	T4A
Dimensions	198 x 170 x 43 mm

Features

26 pre-programmed basic systems selectable, drainback option.
Functions according to the data sheet: ΔT control, speed control, heat quantity measurement, operating hours counter for the solar pump, evacuated tube collector function, thermostat function, stratified store loading, priority logic, excess heat dissipation, thermal disinfection function, function control.
Heat pump demand optionally possible.
Switching between SI and imperial units.

Note on variants

Standard: controller with SD card, without temperature sensors (article number 11545000). Complete package: controller with SD card and 5 Pt1000 temperature sensors (2 x FKP6, 3 x FRP6) (article number 11545010).
