Resol CS10

Name: Resol CS10
Brand: Resol GmbH
SKU: 15100320
Price: 111.49 EUR
Availability: InStock

111^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

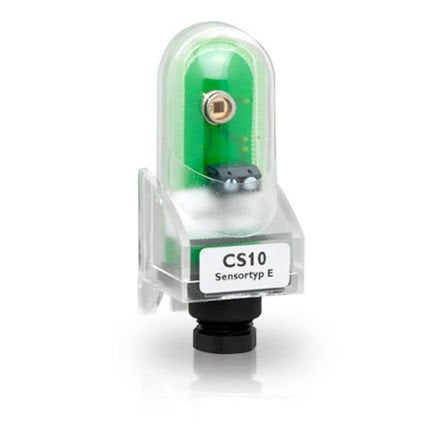

Resol CS10 is a solar cell for measuring the current solar irradiation intensity. The short-circuit current rises proportionally with the radiation intensity. Depending on the controller, the sensor can be used, according to Resol, as an additional plausibility check or with direct control influence.

Technical data

Housing	PMMA, cable gland PA6 (PG 9)
Housing dimensions	83.5 x 34.5 x 32 mm
Degree of protection	IP 54
Temperature	minus 20 to plus 70 °C
Short-circuit current	depending on sensor type (A to K) 1.72 to 2.41 µA per W/m²
Connection cable	cable diameter 4 to 8 mm, conductor cross-section 0.34 to 1.5 mm² (AWG 22 to 14)
Resol article number	15100320

Installation notes

According to the data sheet, the connection cable can be extended up to 100 m; its sheath must be approved for outdoor use.
