Sanha PURAFIT Elbow 90°

Name: Sanha PURAFIT Elbow 90°
Brand: Sanha
SKU: 1309018
Price: 5.99 EUR
Availability: InStock

5^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha PURAFIT Elbow 90° combines the following versions in one product: female x female, female x male, male x male. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

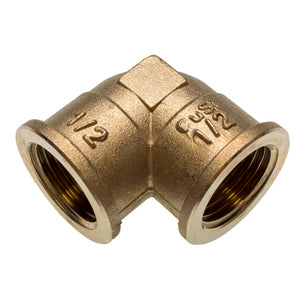

female x female: Sanha PURAFIT elbow 90°, female x female thread is a 90° elbow with female thread on both sides. The item belongs to the Sanha PURAFIT threaded fitting system (series 3000) and, according to Sanha, is made of lead-free, silicon-containing copper alloy (silicon bronze).

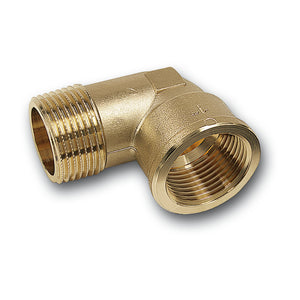

female x male: Sanha PURAFIT elbow 90°, female x male thread is a 90° elbow with female and male thread. The item belongs to the Sanha PURAFIT threaded fitting system (series 3000) and, according to Sanha, is made of lead-free, silicon-containing copper alloy (silicon bronze).

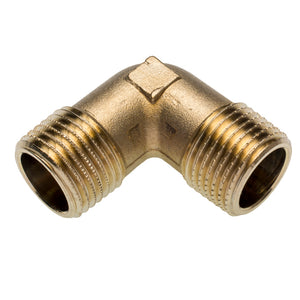

male x male: Sanha PURAFIT elbow 90°, male x male thread is a 90° elbow with male thread on both sides. The item belongs to the Sanha PURAFIT threaded fitting system (series 3000) and, according to Sanha, is made of lead-free, silicon-containing copper alloy (silicon bronze).

Technical data

Material	lead-free silicon bronze CuZn21Si3P, material no. CW724R-DW (according to the Sanha installation information)
Surface	unfinished (according to Sanha)

Data per version:

Feature	female x female	female x male	male x male
System	PURAFIT, series 3000, catalogue number 3090	PURAFIT, series 3000, catalogue number 3092	PURAFIT, series 3000, catalogue number 3091
Design	elbow 90°, female thread on both sides	elbow 90°, with female and male thread	elbow 90°, male thread on both sides
Thread	pipe thread R/Rp according to EN 10226 (according to Sanha)	pipe thread R/Rp according to EN 10226 (according to Sanha)	not specified
Thread sizes	1/8 to 2 inches	1/4 to 2 inches	3/8 to 1 inches
Testing	tested and certified according to DVGW GW 6 (according to Sanha)	tested and certified according to DVGW GW 6 (according to Sanha)	tested in accordance with DVGW GW 6 (according to Sanha)

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	Rp	H	SW	z	Rp1	Rp2	L	z1	z2	R
IG x IG	1	130901	1	35	38	18
IG x IG	1 1/4	13090114	1 1/4	42	46	23
IG x IG	1 1/4x1	130901141		42	46		1 1/4	1	39	23	22
IG x IG	1/2	1309012	1/2	25	24	12
IG x IG	1/2 x 3/8	130901238		27	20		1/2	3/8	21	14	11
IG x IG	1x3/4	13090134		35	38		1	3/4	32	18	17
IG x IG	1/4	1309014	1/4	18	15	8
IG x IG	1/8	1309018	1/8	12	13	5
IG x IG	2	130902	2	55	62	31
IG x IG	3/4	1309034	3/4	32	30	17
IG x IG	3/4x1/2	130903412		32	30		3/4	1/2	27	17	14
IG x IG	3/8	1309038	3/8	22	20	12
IG x AG	1	130921	not stated	not stated	not stated	not stated			not stated			not stated
IG x AG	1 1/2	13092112	1 1/2	50	46	31			61			1 1/2
IG x AG	1 1/4	13092114	1 1/4	45	41	26			55			1 1/4
IG x AG	1/2	1309212	1/2	25	21	12			32			1/2
IG x AG	1/4	1309214	1/4	21	11	11			26			1/4
IG x AG	2	130922	2	55	58	31			70			2
IG x AG	3/4	1309234	3/4	30	25	15			40			3/4
IG x AG	3/8	1309238	3/8	19	16	9			27			3/8
AG x AG	1	130911		42	32							1
AG x AG	1/2	1309112		32	20							1/2
AG x AG	3/4	1309134		37	32							3/4
AG x AG	3/8	1309138		27	20							3/8

Features

female x female: Areas of application according to Sanha: drinking water, heating and cooling, gas installations, compressed air, solar systems and technical gases.
female x female: Marking on the fitting according to Sanha: manufacturer, dimension and approval mark (DVGW).
female x female: Threads according to EN 10226 or ISO 7/1 with the R/Rp pairing (according to the Sanha installation information): R stands for conical male thread, Rp for parallel female thread.
female x female: DVGW type examination certificate DV-7401BU0333 for threaded fittings made of lead-free, silicon-containing copper alloy, model PURAFIT S3000CuSi (test basis DVGW GW 6), valid until 25.06.2029. The annex lists the nominal sizes 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2 and 3 inches.
DVGW certificate of conformity hygiene HW-1001DQ0146 for PURAFIT threaded fittings (series 3000) made of CW724R for drinking water installations, valid until 14.03.2030.
female x female: The size 1/8 inch is not listed in the annex of the DVGW type examination certificate.
female x male: Areas of application according to Sanha: drinking water, heating and cooling, gas installations, compressed air, solar systems and technical gases.
female x male: Marking on the fitting according to Sanha: manufacturer, dimension and approval mark (DVGW).
female x male: Threads according to EN 10226 or ISO 7/1 with the R/Rp pairing (according to the Sanha installation information): R stands for conical male thread, Rp for parallel female thread.
female x male: DVGW type examination certificate DV-7401BU0333 for threaded fittings made of lead-free, silicon-containing copper alloy, model PURAFIT S3000CuSi (test basis DVGW GW 6), valid until 25.06.2029. The annex lists the nominal sizes 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2 and 3 inches.
male x male: Areas of application according to Sanha: drinking water, heating and cooling, compressed air, solar systems and technical gases.
