Sanha | SKU: 1312138

Sanha PURAFIT Elbow 45°

Name: Sanha PURAFIT Elbow 45°
Brand: Sanha
SKU: 1312138
Price: 17.99 EUR
Availability: InStock

17^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Connection

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha PURAFIT Elbow 45° combines the following versions in one product: female x male, female x female. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

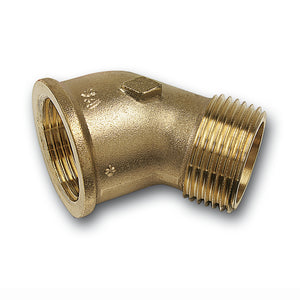

female x male: Sanha PURAFIT elbow 45°, female x male thread is a 45° elbow with female and male thread. The item belongs to the Sanha PURAFIT threaded fitting system (series 3000) and, according to Sanha, is made of lead-free, silicon-containing copper alloy (silicon bronze).

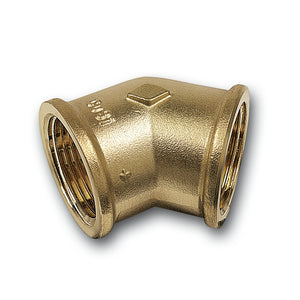

female x female: Sanha PURAFIT elbow 45°, female x female thread is a 45° elbow with female thread on both sides. The item belongs to the Sanha PURAFIT threaded fitting system (series 3000) and, according to Sanha, is made of lead-free, silicon-containing copper alloy (silicon bronze).

Technical data

Material	lead-free silicon bronze CuZn21Si3P, material no. CW724R-DW (according to the Sanha installation information)
Surface	unfinished (according to Sanha)
Thread	pipe thread R/Rp according to EN 10226 (according to Sanha)
Testing	tested and certified according to DVGW GW 6 (according to Sanha)

Data per version:

Feature	female x male	female x female
System	PURAFIT, series 3000, catalogue number 3121	PURAFIT, series 3000, catalogue number 3120
Design	elbow 45°, with female and male thread	elbow 45°, female thread on both sides
Thread sizes	3/8 to 1 1/2 inches	1/2 to 1 1/4 inches

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	R	Rp	L1	L2	SW	z	L
IG x AG	1"	131211	1	1	26	36	41	9
IG x AG	1 1/2	13121112	1 1/2	1 1/2	36	47	55	17
IG x AG	1 1/4"	13121114	1 1/4	1 1/4	31	40	46	12
IG x AG	1/2"	1312112	1/2	1/2	19	28	26	6
IG x AG	3/4"	1312134	3/4	3/4	22	31	30	7
IG x AG	3/8	1312138	3/8	3/8	16	27	26	6
IG x IG	1"	131201		1			41	9	26
IG x IG	1 1/4"	13120114		1 1/4			50	12	31
IG x IG	1/2"	1312012		1/2			25	8	21
IG x IG	3/4"	1312034		3/4			32	7	22

Features

Areas of application according to Sanha: drinking water, heating and cooling, gas installations, compressed air, solar systems and technical gases.
Marking on the fitting according to Sanha: manufacturer, dimension and approval mark (DVGW).
Threads according to EN 10226 or ISO 7/1 with the R/Rp pairing (according to the Sanha installation information): R stands for conical male thread, Rp for parallel female thread.
DVGW type examination certificate DV-7401BU0333 for threaded fittings made of lead-free, silicon-containing copper alloy, model PURAFIT S3000CuSi (test basis DVGW GW 6), valid until 25.06.2029. The annex lists the nominal sizes 1/4, 3/8, 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2 and 3 inches.
DVGW certificate of conformity hygiene HW-1001DQ0146 for PURAFIT threaded fittings (series 3000) made of CW724R for drinking water installations, valid until 14.03.2030.

Data sheets and manuals (PDF)
