Frico Control Accessories for Pamir Air Curtains

Name: Frico Control Accessories for Pamir Air Curtains
Brand: Frico GmbH
SKU: PA2DR
Price: 121.07 EUR
Availability: InStock

121^{07 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Accessory part

Version

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Frico Control Accessories for Pamir Air Curtains combines the following versions in one product: door switch control PA2DR, motor alarm card PAMLK, external potentiometer PAMP10. Select the required version under Accessory part and then the matching variant under Version. The details for each version are given below.

The versions in detail

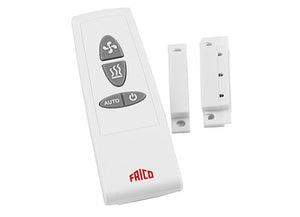

door switch control PA2DR: Frico PA2DR is a door switch control for Frico air curtains. According to Frico it comes with a door switch indicating the door status and a special remote control for activating an additional automatic mode. According to the manual the set point is automatically raised by 2 °C while the door is open.

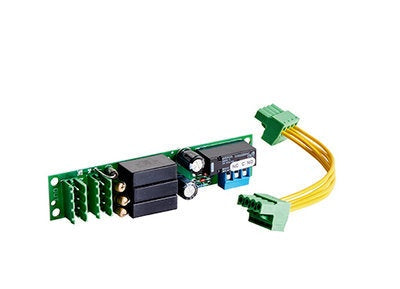

motor alarm card PAMLK: Frico PAMLK is a motor alarm card for Frico air curtains. According to Frico it provides a motor alarm signal on units that do not yet have one. The card is connected between the motor wiring harness and the main circuit board.

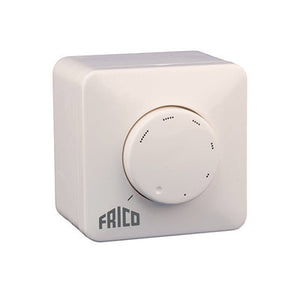

external potentiometer PAMP10: Frico PAMP10 is an external potentiometer for stepless control of the Frico PAEC and PAECS air curtains. The required output voltage is set steplessly in the range 0 to 10 V. A volt-free switch allows switching on and off via an external device.

Technical data

Data per version:

Feature	door switch control PA2DR	motor alarm card PAMLK	external potentiometer PAMP10
Output signal	not specified	not specified	0 to 10 V, stepless
Mounting	not specified	not specified	flush (IP44) or surface (IP54)
Number of units controlled	not specified	not specified	up to 8 (up to 4 with 2 m units)

Note on variants

Select accessory part and version. Not every combination is available.

Accessory part	Version	Item number
Türschaltersteuerung PA2DR	mit Türschalter und Fernbedienung	PA2DR
Motoralarmkarte PAMLK	potentialfreier Kontakt	PAMLK
externes Potentiometer PAMP10	stufenlos 0-10 V	PAMP10

Features

door switch control PA2DR: According to Frico available as an accessory for a door switch function with the PA2200C, PA3200C and AR3200C air curtains.
door switch control PA2DR: Scope of delivery according to Frico: door switch and remote control.
motor alarm card PAMLK: On units with SIRe control (PA2500, AR3200) the card is connected to the SIRe automatic control for motor alarm indication.
motor alarm card PAMLK: On units without SIRe (PA2200C, PA3200C, AR3200C) the volt-free contact is used for an external alarm.
motor alarm card PAMLK: Scope of delivery according to Frico: 1 motor alarm card.
external potentiometer PAMP10: According to Frico part of the control set for stepless air flow adjustment, optionally with the SIReDC door contact or the AGB304 door contact switch.
