Sanha NiroTherm Industry Bend 45°, 1 or 2 Sockets

Name: Sanha NiroTherm Industry Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 69804115
Price: 19.49 EUR
Availability: InStock

19^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha NiroTherm Industry Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

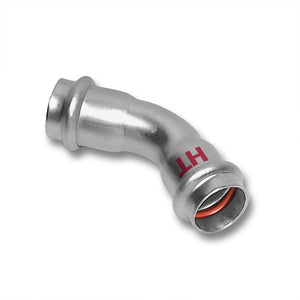

2 sockets: Sanha NiroTherm Industry Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the NiroTherm Industry press fitting system (series 98000) made of stainless steel. According to the Sanha installation information, the system is intended for compressed air, technical gases, heating oil and fuels, solar systems and district heating; according to Sanha, it is not permitted for drinking water.

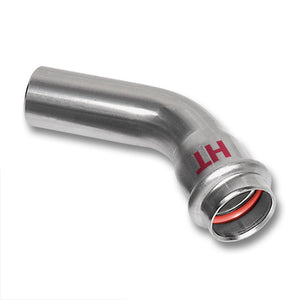

1 socket (socket x spigot): Sanha NiroTherm Industry Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the NiroTherm Industry press fitting system (series 98000) made of stainless steel. According to the Sanha installation information, the system is intended for compressed air, technical gases, heating oil and fuels, solar systems and district heating; according to Sanha, it is not permitted for drinking water.

Technical data

Material	stainless steel, material no. 1.4301 according to EN 10088
Sealing ring	FKM, red, factory-fitted
Nominal pressure	PN 16 (according to Sanha)
Max. continuous temperature	-20 to 160 °C, briefly up to 280 °C (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Suitable pipes	NiroTherm and NiroTherm F system pipes according to EN 10312 (Sanha recommendation)
Dimensions	d 15 to 108 mm

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	NiroTherm Industry, series 98000, catalogue number 98041	NiroTherm Industry, series 98000, catalogue number 98040
Design	bend 45°, universal press ends on both sides	bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	H	L	z	Insertion depth
2 Muffen	108.0	698041108
2 Muffen	15	69804115	15	29	29	7	22
2 Muffen	18	69804118	18	29	29	7	22
2 Muffen	22	69804122	22	34	34	11	23
2 Muffen	28	69804128	28	38	38	14	24
2 Muffen	35	69804135	35	40	40	14	26
2 Muffen	42	69804142	42	56	56	20	36
2 Muffen	54	69804154	54	66	66	26	40
2 Muffen	76	69804176
2 Muffen	88.9	69804189
1 Muffe (Muffe x Einsteckende)	108.0	698040108
1 Muffe (Muffe x Einsteckende)	15	69804015	15	29	39	7	22
1 Muffe (Muffe x Einsteckende)	18	69804018	18	29	37	7	22
1 Muffe (Muffe x Einsteckende)	22	69804022	22	34	42	11	23
1 Muffe (Muffe x Einsteckende)	28	69804028	28	38	45	14	24
1 Muffe (Muffe x Einsteckende)	35	69804035	35	40	49	14	26
1 Muffe (Muffe x Einsteckende)	42	69804042	42	56	65	20	36
1 Muffe (Muffe x Einsteckende)	54	69804054	54	66	74	26	40
1 Muffe (Muffe x Einsteckende)	76	69804076
1 Muffe (Muffe x Einsteckende)	88.9	69804089

Features

Since 2024, according to Sanha, various NiroTherm items have new overall dimensions and a changed insertion depth; items with the new dimensions carry an additional X on the label.
Marking according to Sanha: red dot on the fitting (not permitted for drinking water) and "HT" marking (high temperature).
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
